For Single-Acting Cylinders | 700 bar | 0.3 to 10 Litre Reservoirs | Two-Stage with Automatic Switch-Over

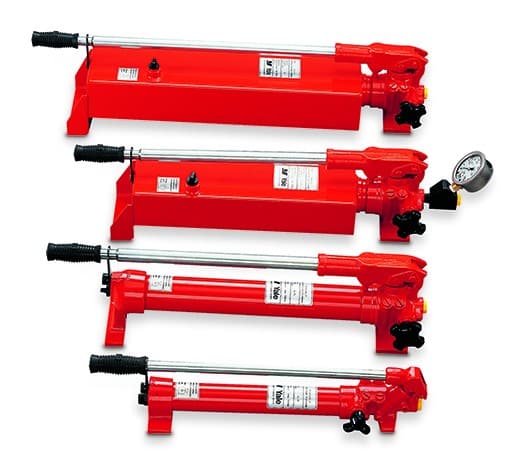

The Yale HPS range comprises hydraulic hand pumps for single-acting cylinders at 700 bar maximum system pressure. Seven models cover reservoir volumes from 0.3 to 10 litres. All HPS pumps (except HPS-1/0.7 A) are two-stage designs with automatic switch-over from low pressure to high pressure stage, providing rapid no-load piston travel and high-force loaded operation.
All-steel hand pump construction designed for rough use
Yale documentation describes the HPS as an all-steel construction designed for rough use, with a high-efficiency pumping action. The handle can be locked for easy carrying. The large return valve allows the operator to precisely control the return stroke. Yale states the pumps are supplied ready to use including hydraulic oil filling.
Per Yale: the most common power source within Yale's high-pressure hydraulic tools range. Used with all Yale 700 bar single-acting cylinders. The selection chart matches HPS reservoir size to the connected cylinder's oil volume.
| Operating Pressure | 700 bar maximum |
|---|---|
| Oil Port | 3/8 NPT |
| Oil Specification | ISO VG 32 (Yale HFY series) |
| Reservoir Sizes | 300, 700, 2000, 4000, 6500, 10000 cm3 |
| Stage 1 Displacement | 5 cm3/stroke (HPS-2/0.3 A) or 11 cm3/stroke (other two-stage) |
| Stage 2 Displacement | 1 cm3/stroke (HPS-2/0.3 A) or 2 cm3/stroke (others) |
| Weight Range | 3.5 - 27 kg |
| Standard Models | 7 |
