Yale VEP Solenoid Directional Valve

SKU VEP_SOLENOID_DIRECTIONAL_VALVES

Inc VAT

£2,699.89

Ex VAT

£2,249.91

Estimated delivery: 7–10 daysDelivery: ✓ FREE

Valve Type

Size

Clear

✓ Secure checkout ✓ BACS & Proforma ✓ Credit account

Key features

✓ Solenoid-operated directional valves with pressure-set valve
✓ 700 bar

Why WOLFF Onsite

170+ yrs

Part of Wolffkran heritage since 1854 — we trust the kit we sell

Price match

Seen it cheaper? Send us the quote and we'll try to match it

30 days

Returns on unused items in original packaging — full refund, no fuss

UK support

Lifting-gear specialists in Sheffield & London — phone & email

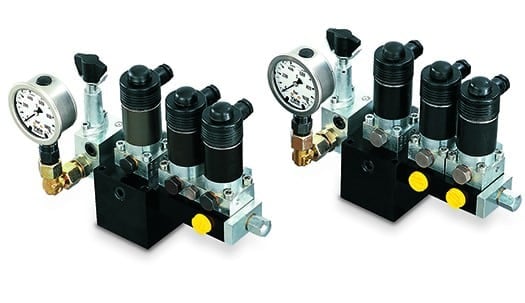

The Yale VEP range comprises solenoid-operated hydraulic directional valves with integrated pressure set valves, rated for 700 bar maximum operating pressure. Four models cover single-acting (3/3-way) and double-acting (4/3-way) applications in two flow sizes. All VEP valves have three positions: advance, stop (hold), retract.

Electrically-actuated directional control with integrated pressure setting

Yale states the VEP solenoid-operated valves are used to control hydraulic cylinders via a pendant remote control or further electrical controls (pressure switches, limit switches). In neutral position (stop), the valves switch to pressureless circuit - oil flow returns to the reservoir while the cylinder is safely held under pressure via the leak-free load-hold function. Yale specifies long-life direct-control ball seal valves with solenoids that guarantee very quick reaction so cylinders can be controlled millimeter-wise.

Suitable Applications

Per Yale: PLC-controlled hydraulic systems, automated workshop press machinery, remote-operated hydraulic circuits, multi-cylinder systems with sequenced operation. Valves can be mounted directly onto power packs or remote-mounted via hydraulic piping. The modular principle allows special valve configurations - e.g. control of multiple cylinder systems or specific control sequences.

Key Features

3 Solenoid Positions: advance / stop / retract via pendant remote control.
Pressureless Circuit in Neutral: oil returns to reservoir while cylinder safely held under pressure.
Leak-Free Load Hold Function: Yale-specified - cylinder holds position without pressure drop.
Long-Life Direct-Control Ball Seal Valves: Yale's specified valve design.
Continuous Duty Operation: Yale rates VEP for 100% on/off duration.
Modular Design: allows custom valve configurations.
Precision Pressure Set Valve: limits system pressure to any value from 0 to 700 bar.
Glycerine-Damped Pressure Gauge GGY-631: standard - 0-1000 bar, 63 mm.
Mounting Flanges Designed for Yale Power Packs: direct flange mounting.
24 V DC Control Voltage: Yale standard.

Technical Specifications

Operating Pressure	700 bar maximum
Control Voltage	24 V DC
Pressure Set Valve	Adjustable 0 - 700 bar
Pressure Gauge Standard	GGY-631 (0-1000 bar, 63 mm, glycerine-damped)
VEP-3/3-1	Single-acting, size 1, 12 l/min, 4.1 kg
VEP-3/3-2	Single-acting, size 2, 25 l/min, 7.9 kg
VEP-4/3-1	Double-acting, size 1, 12 l/min, 4.1 kg
VEP-4/3-2	Double-acting, size 2, 25 l/min, 7.9 kg
Standard Models	4

Frequently Asked Questions

Q: What's the oil port thread?

P and T ports are 3/8 NPT. Yale notes that if oil ports A and B should have 3/8 NPT, the adaptor model FY-30 must be ordered separately.

Q: Is the pressure gauge supplied?

Yes - Yale specifies the GGY-631 glycerine-damped pressure gauge as standard with the VEP (0-1000 bar, 63 mm).

Q: What's the duty cycle rating?

Yale specifies 100% on/off duration - the valves are suitable for continuous operation.

Q: Optional FY-905 connector?

Yes - Yale notes the FY-905 connector is available as an option and must be ordered separately.
