BlokCam wireless camera and audio for cranes
1 / 2

BlokCam Wireless Camera System for Cranes

Weekly hire
From £224.40/wkFrom £187.00/wkInc VATEx VAT
From £187.00/wk ex VATFrom £224.40/wk inc VAT ·
Hire cannot start on days highlighted with a dotted border.
Total: £ ()
Excluding any selected add-ons
Hire return within days

About this item

  • Wireless camera system quickly attached to a crane's hook block
  • Transmits audio and video to a screen via antennas
  • Gives the operator a clear, live feed of load and surroundings

Product description

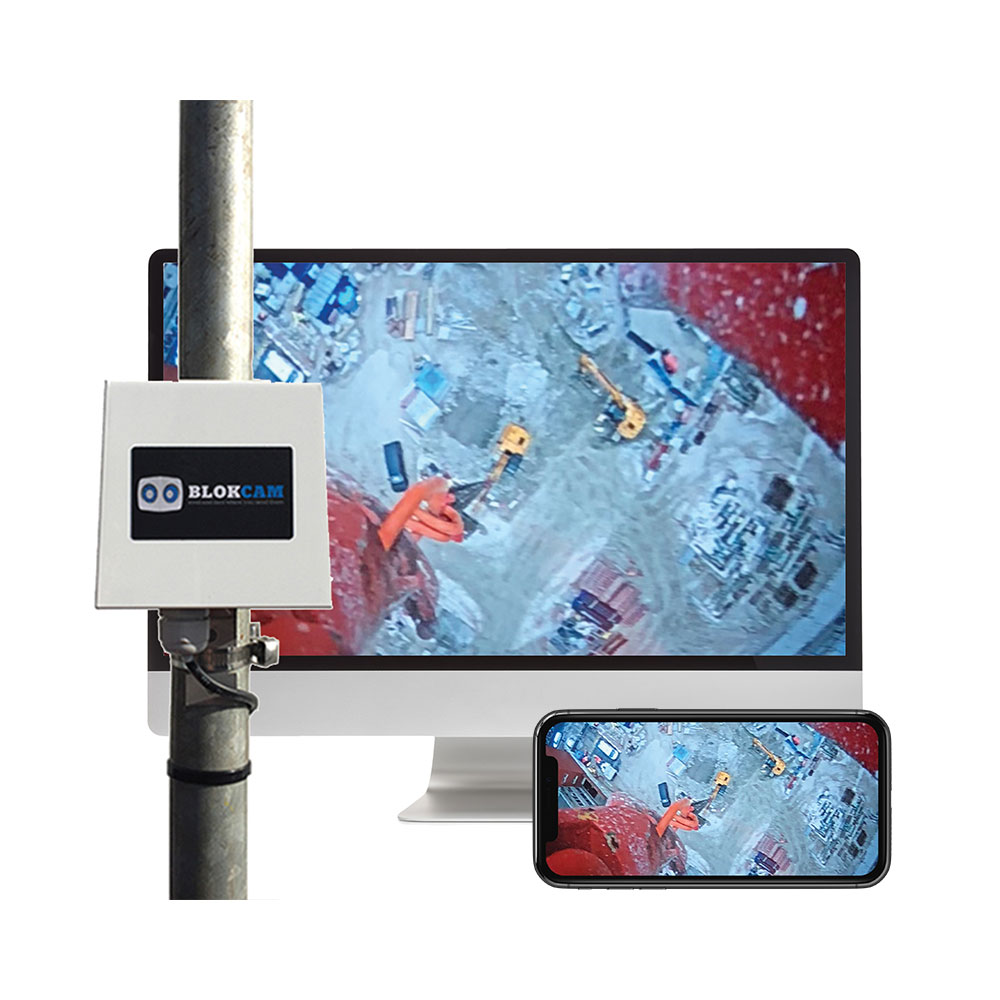

BlokCam is a wireless HD camera that clamps to a crane hook block and sends live video and sound to a monitor in the cab. The operator sees and hears the load and the area below the hook, even on blind lifts.

It uses long-range wireless transmission, records on a loop for up to 30 days and runs about 12 hours on each of its two battery packs.

Key Features
  • HD 1080p auto-focus camera with 113° wide-angle lens
  • Audio from the hook to the cab, as well as video
  • Long-range wireless transmission from hook to cab
  • Loop recording for up to 30 days, with screenshot function
  • Neodymium magnet mounting, IP67 design

Specifications

ResolutionHD 1080p
Sensor lensS5, 113° wide angle, auto-focus
Screen modeSingle, or split screen with additional cameras
TransmissionLong-range wireless; T3 transmitter connects up to two sensors
Batteries2 x B6 lithium battery packs per system
Battery life12 hours (varies with use and configuration)
RecordingLoop recording up to 30 days
IndicatorsLED
Ingress protectionIP67
Operating temperature-20 °C to +55 °C
ApprovalsCE and FCC
What's Included
  • Sensor (S5)
  • Monitor (M3)
  • Transmitter (T3)
  • 2 x battery (B6)
  • Charger (B6-CH3)

Optional extras:

  • 4G router (recommended), for remote streaming and downloads
  • BlokCam Office Link laptop, to buy or hire
  • Additional battery pack and battery charger

The BlokAlert Wireless Warning System can be added to warn people on the ground as the hook moves.

Documents (2)

View on this page or download.

PDFBlokCam
PDF document
PDFBlokCam Brochure
PDF document

Using and looking after it

Always read the manufacturer’s instructions before use. See the documents

Typical Applications
  • Blind lifts on tower and mobile cranes
  • Lifts over buildings, into cores and down shafts
  • Recording lifts for training and investigations
  • Site office monitoring of several cranes

Buying guide

Design & Construction

The S5 sensor (camera) mounts on the hook block with neodymium magnets and a rugged bracket. It sends picture and sound to the T3 transmitter and on to the M3 monitor in the cab, which combines monitor, repeater and processor in one unit.

Two B6 lithium battery packs come with each system, so one can charge while the other runs; additional battery packs and a battery charger can be added as extras.

Recordings can be pulled off for training and incident investigation. With BlokCam Office Link, a computer in the site office can watch and download footage from several BlokCam systems.

Adding a 4G router lets you stream and extract recordings remotely over the internet.

Questions and answers

Q: How far can it transmit?

A: KITO Crosby describe the link as long-range transmission but do not publish a distance. Ask us to check coverage for your crane and lift heights.

Q: Can I watch the crane from the site office?

A: Yes, with BlokCam Office Link on a site computer, which can monitor and download from several systems. A 4G router adds remote access over the internet.

Q: How long do the batteries last?

A: About 12 hours each, depending on use. Two packs are supplied so one can charge while the other runs.
