Invicta Fork Mounted Skip Compactor

Model ISC | Ballast Filled | Height Adjustable | Reduces Skip Collections | UK Manufactured

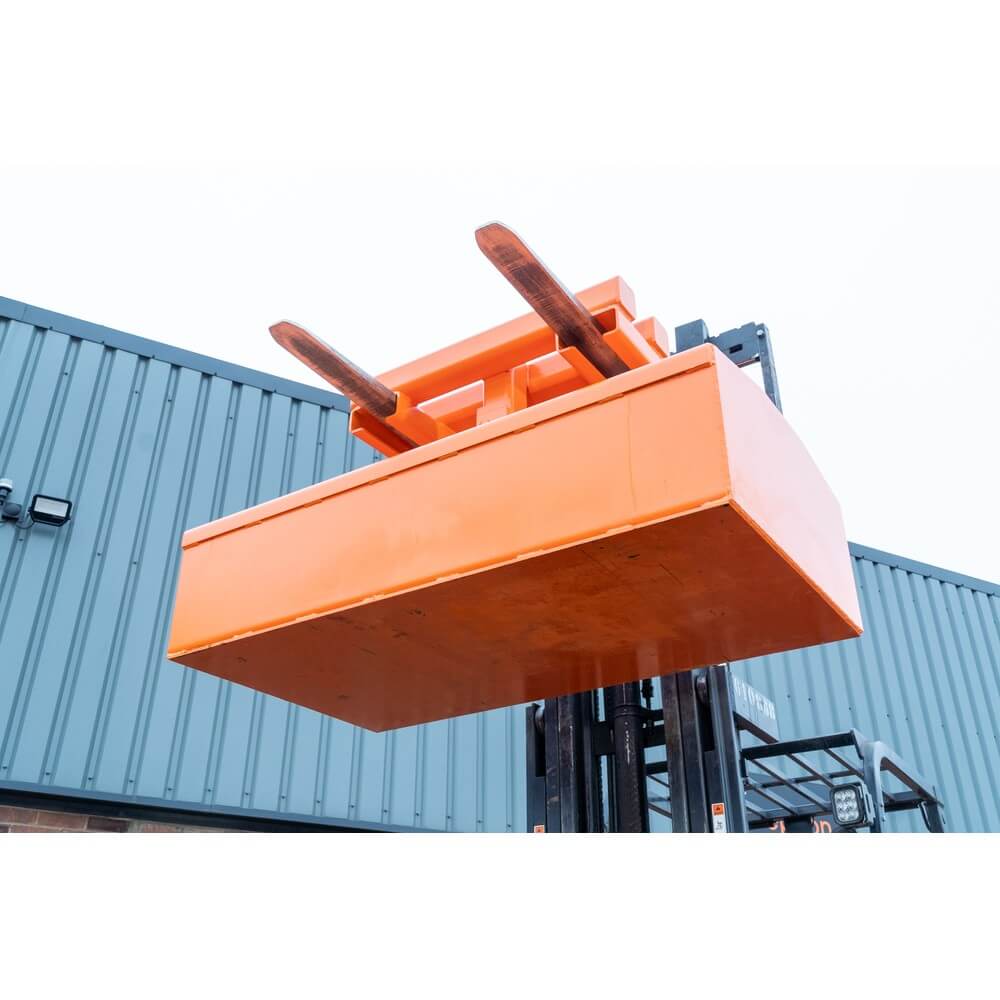

The Invicta Fork Mounted Skip Compactor (Model ISC) is designed to achieve optimum yard skip capacity. Waste is usually deposited into yard skips and taken away once full — however, in most cases the skip is 30–45 percent full of fresh air. The Skip Compactor, filled with ballast (a mixture of 10mm pebbles and crushed sandstone), significantly reduces this air gap and subsequently reduces the number of collections required and the money spent doing so. Height adjustable to suit skips up to 8 feet deep. Available in 1000kg and 2000kg versions. Manufactured in Leeds by Invicta Forks & Attachments.

Technical Specifications

Height adjustable to suit skips up to 8 feet deep.

Key Features

• Ballast filled — pre-filled with a mixture of 10mm pebbles and crushed sandstone for maximum compaction force
• Height adjustable — adjustable to suit yard skips up to 8 feet deep
• Heel pin locking — safe attachment to forklift truck
• Robust construction — heavy-duty steel build designed for repeated compaction cycles

Suitable Applications

The ISC is ideal for any site or facility with regular skip waste collections. By compacting the waste, you can significantly reduce the number of skip collections required — saving money on waste management costs. Common users include construction sites, factories, warehouses, retail parks and demolition sites.

How to Use the Fork Mounted Skip Compactor

1. Position forks and remove heel pins.
2. Drive forks into pockets and insert heel pins.
3. Adjust the compactor height using the Height Adjustment Pin to suit the skip depth.
4. Position the compactor directly above the skip.
5. Lower the compactor slowly into the skip to compress the waste.
6. Raise clear and repeat as needed.

Warning: Always travel with the compactor in its reduced position. Do not travel over rough terrain or corner excessively. Never exert lateral forces against the compactor body.

Safety Information

• Ensure heel pins are correctly fitted.
• Ensure the Height Adjustment Pin is retained with the lynch pin.
• Travel with the compactor in reduced position.
• Do not shock load.

Inspection and Maintenance

Inspect weekly — focus on weld points, fork pockets, adjustment pin and heel pins.
