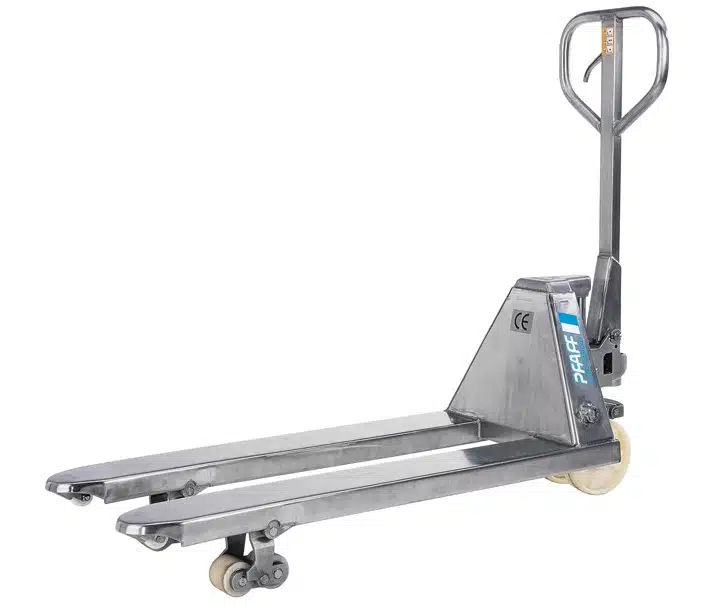

The Pfaff HU 20-115 VATP ATEX PROLINE is a premium stainless steel hand pallet truck for Zone 1 (gas) and Zone 21 (dust) hazardous atmospheres, certified to ATEX Directive 2014/34/EU. The frame, connecting rods, bolts, torsion tube and hydraulic unit are all manufactured from V4A-316 stainless steel for exceptional chemical resistance, while the ergonomic safety control handle allows single-handed operation of lifting, driving and lowering. Compact 105° steering each side enables manoeuvring in confined spaces, with a 2000 kg capacity.
Key Features
- ATEX Zone 1 / Zone 21 certified — Medium classification II 2 G Ex h IIB T6 Gb — suitable for most industrial gas and dust hazards.
- Full V4A-316 stainless steel construction — Frame, connecting rods, bolts, torsion tube and hydraulic unit — exceptional chemical resistance.
- Ergonomic single-hand control — Safety control handle integrates lifting, driving and lowering for one-handed operation.
- Hard chromium plated piston — Low-maintenance high-performance hydraulic pump with pressure relief valve.
- Conductive antistatic steering rollers — 200 × 50 mm conductive rollers for static dissipation in hazardous areas.
- 105° steering each side — Easy manoeuvring in confined warehouse and process plant spaces.
- VG/PA tyre configuration — Vulkollan drive wheel with polyamide load wheels — chemical resistance and durability.
- 2000 kg lifting capacity — Standard Euro pallet truck capacity in an ATEX-certified package.
Technical Specifications
| Item # |
Description |
Capacity (kg) |
Weight (kg) |
Tyre Type |
| 40054147 |
HU 20-115 VATP ATEX |
2000 |
86 |
VG/PA Vulkollan/Polyamide |
Load rollers 82 × 70 mm, steering rollers 200 × 50 mm (conductive antistatic). Hydraulic unit V4A-316 stainless steel with hard chromium plated piston and pressure relief valve.
ATEX Directive 2014/34/EU | II 2 G Ex h IIB T6 Gb / II 2 D Ex h IIIB T85°C Db
Certified to ATEX Directive 2014/34/EU under classification II 2 G Ex h IIB T6 Gb (gas) and II 2 D Ex h IIIB T85°C Db (dust). Suitable for Zone 1 and Zone 21 hazardous areas. The Medium classification covers most industrial gases including most solvents. Supplied with EC Declaration of Conformity and CE marking.
Suitable Applications
Chemical and pharmaceutical warehouses, solvent and paint storage, ATEX-classified loading bays and goods storage areas, food manufacturing requiring chemical-resistant equipment, and any Zone 1 or Zone 21 location requiring powered pallet movement without electrical ignition risk.
How to Use the Pfaff HU 20-115 VATP ATEX
- Inspect the truck for damage, fluid leaks and tyre condition before use.
- Confirm the battery charge or hydraulic function is correct.
- Approach the pallet squarely and lower the forks to floor level.
- Drive the forks fully under the pallet, then raise to clear the floor.
- Manoeuvre at walking pace using the tiller arm, keeping the load low.
- Lower the load and disengage before leaving the truck.
Warning:
Charging or any electrical work must take place outside the ATEX zone in an area certified for safe operation. Do not perform repairs inside Zone 1 or Zone 21 areas under any circumstances.
Safety Information
- Confirm the ATEX zone classification of the work area matches the equipment certification before use.
- Never exceed the rated working load limit displayed on the equipment.
- Never use equipment that shows visible damage, wear or deformation.
- Keep all personnel clear of the lifted load at all times.
- Do not modify, repair or substitute components other than as specified by the manufacturer.
- Ensure the operator is trained, competent and authorised for ATEX lifting operations.
Inspection and Maintenance
Inspect before each use — focus on all load-bearing components, welds, hooks, safety latches, chain, rope and pendant controls. Thorough examination under LOLER 1998 is required at intervals not exceeding 6 months by a competent person. Replacement parts must be genuine manufacturer items to maintain certification. Records of all inspections must be retained for the life of the equipment.
Frequently Asked Questions
Q: What tyre configuration does the HU 20-115 VATP use?
VG/PA — Vulkollan drive wheel with polyamide load wheels. This combination delivers durability and chemical resistance suitable for industrial ATEX environments. The steering rollers are conductive antistatic 200 × 50 mm units for static dissipation.
Q: Is this a pedestrian or rider pallet truck?
Pedestrian (walk-behind) operation. The operator walks behind the truck and steers using the tiller arm with single-hand control.
Q: What is the ATEX classification?
II 2 G Ex h IIB T6 Gb (gas) and II 2 D Ex h IIIB T85°C Db (dust) — Medium classification under ATEX Directive 2014/34/EU, suitable for Zone 1 and Zone 21 areas.
Q: Why is the unit made from V4A-316 stainless steel?
V4A-316 stainless steel offers excellent chemical resistance to acids, solvents and aggressive process media, plus food-grade compliance. The hydraulic unit, frame, bolts and torsion tube are all V4A-316 — making the truck suitable for pharmaceutical, food and chemical environments where standard carbon steel would corrode.
