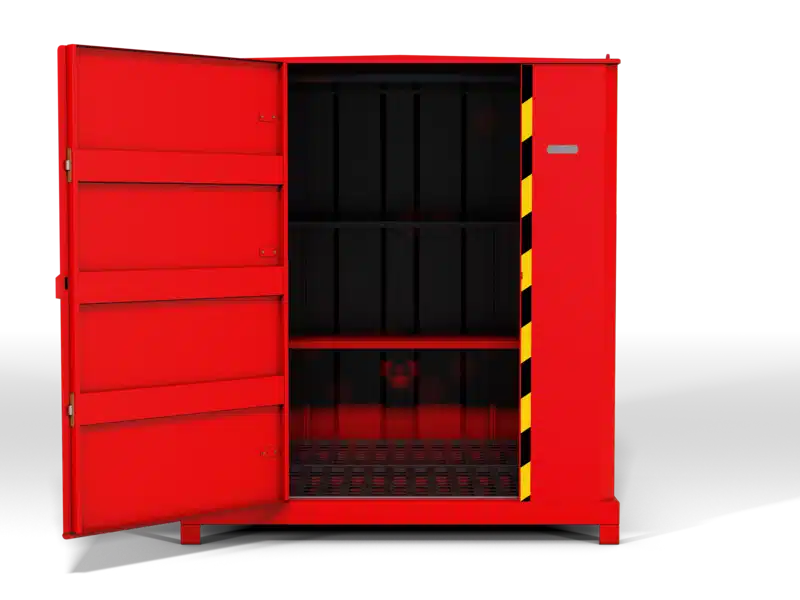

The FlamStor FS2.0 is part of the Armorgard FlamStor range. Purpose-built storage for substances classified as hazardous under COSHH. The design contains a spill rather than simply enclosing the containers, and keeps the contents locked away from anyone without a key. External dimensions are 2020mm x 2080mm x 2245mm, with an internal capacity of 1085x1910x1975. Unit weight 570kg.
Key Features
- Liquid-Tight Sump - the base forms a welded, liquid-tight sump rated at 400L, catching leaks and spillages from damaged or badly sealed containers before they reach the floor or drainage.
- Fire Resistance - built to specification for up to 30 minutes of fire resistance, delaying involvement of the contents in a fire and buying time to evacuate and respond.
- Shelving - fitted with 2 shelves. Galvanised and lipped so a spill on an upper level is caught rather than running onto whatever is stored below.
- Locking - secured by 2x 5-lever deadlocks, supplied with 3 keys.
- Construction - manufactured from 1.5mm and 2.5mm steel, finished in durable paint finish.
- Finish and Colour - Traffic red: RAL 3020, giving a durable, weather-resistant surface that stays legible and visible on site.
- Ventilation - ventilated to allow airflow and help prevent the build-up of fumes or gases inside the unit.
- Dimensions - external footprint of 2020mm x 2080mm x 2245mm, internal 1085x1910x1975. All dimensions are approximate and include protrusions.
- Hazard Signage - supplied with the relevant COSHH warning signage already fitted, so the unit is compliant on delivery.
Technical Specifications
| Specification |
Value |
| Product Code |
FS2.0 |
| External Dimensions (W x D x H) |
2020mm x 2080mm x 2245mm |
| Internal Dimensions |
1085x1910x1975 |
| Weight |
570kg |
| Sump Capacity |
Sump capacity 400L |
| Fire Resistance |
up to 30 minutes |
| Shelves |
2 shelves |
| Material & Thickness |
1.5mm and 2.5mm steel |
| Finish |
Durable paint finish |
| Colour |
Traffic red: RAL 3020 |
| Locking |
2x 5-lever deadlocks |
| Keys Supplied |
3 keys |
| Ventilation |
ventilation [icon label as published] |
| Castors |
Not applicable |
| Suitable For |
Outdoor storage of flammables or chemicals |
| Manufacturer |
Armorgard |
COSHH Compliant & up to 30 minutes Fire Resistance
Built for the storage of substances classified as hazardous under the Control of Substances Hazardous to Health Regulations, and supplied with the relevant hazard warning signage fitted. All dimensions and weights are approximate and include protrusions.
More About This Product
COSHH places a duty on employers to control substances hazardous to health, and safe storage is part of meeting it. This unit answers that with containment rather than mere enclosure: a welded, liquid-tight sump in the base catches what escapes from a split container or a loose cap, and the unit locks so that access is controlled. Fire resistance buys evacuation and response time before stored flammables become involved in a fire. Armorgard build to heavy-gauge steel throughout, powder coated over an anti-corrosive undercoat, because these units live outdoors on working sites rather than in a store cupboard.
Suitable Applications
Storage of paints, solvents, thinners, adhesives, fuels, oils and cleaning chemicals classified as hazardous under COSHH. Used across construction sites, workshops, plant rooms, depots, laboratories and maintenance facilities. Armorgard specify this unit for outdoor storage of flammables or chemicals.
Match the unit to the substance and the quantity: cabinets suit containers, drum stores suit drums on a sump, and cylinders need a ventilated gas cage rather than a sealed enclosure.
How to Use the FlamStor FS2.0
- Site the unit on firm, level ground away from ignition sources, heat and means of escape.
- Level the unit so the sump sits flat and spill containment works as intended.
- Confirm the hazard warning signage matches what you intend to store and add substance-specific labelling where needed.
- Load heavier containers low and lighter items high, keeping containers upright with caps secure.
- Keep the sump clear of stored items so it can take a spill.
- Lock the unit after every access and control key issue to authorised persons.
- Record the contents on your COSHH inventory and keep the safety data sheets available.
Warning:
Do not store incompatible substances together - consult the safety data sheet for each product. Never store gas cylinders in this unit. Keep the unit away from ignition sources and means of escape. Fire resistance is built to specification and does not replace a fire risk assessment or suitable extinguishing provision.
Safety Information
- Read the safety data sheet for every substance before storing it.
- Do not store incompatible substances together - keep oxidisers away from flammables and acids away from alkalis.
- Do not store gas cylinders in this unit.
- Site away from ignition sources, heat and means of escape.
- Keep the sump clear so it can contain a spill, and clean spills promptly.
- Keep the unit locked when unattended.
- Dispose of contaminated absorbent and waste through a licensed route.
Inspection and Maintenance
Inspect regularly for corrosion, impact damage and correct operation of locks and hinges. Check the sump is dry and clear at each inspection and clean any spill promptly, as prolonged contact with solvents can attack the coating. The unit is built from 1.5mm and 2.5mm steel and finished in durable paint finish, which stands up to site conditions but benefits from being kept clean. Confirm the hazard signage remains legible and correct for the current contents, and keep your COSHH inventory up to date as they change. Replacement keys and spare parts are available from Armorgard against the unit's serial number.
Frequently Asked Questions
Q: What is the sump for, and how big is it?
The base of the unit is formed into a welded, liquid-tight sump with a capacity of 400L. It catches leaks and spillages from containers stored above so hazardous liquids cannot reach the floor or enter drainage. Keep it clear of stored items so it can do its job.
Q: What does the fire resistance rating mean?
The unit is built to specification for up to 30 minutes of fire resistance. That is intended to delay the contents becoming involved in a fire and give time to evacuate and respond. It is one control measure among several and does not replace a fire risk assessment.
Q: Where can this unit be sited?
Armorgard specify it for outdoor storage of flammables or chemicals. Siting it outside those conditions may affect both its performance and its warranty.
Q: How many keys are supplied, and can I get more?
The unit comes with 3 keys. Replacement and additional keys are available from Armorgard against the unit's serial number, so keep a record of it.
Q: Is this available in other sizes?
Yes - Armorgard list 5 other sizes feature icons (as displayed): 2x 5-lever deadlocks ; coshh compliant ; crane lifting eyes ; fire resistant ; forklift skids ; no detachable parts ; safety signage ; sump capacity 400l ; ventilation features & specs (as published): coshh compliant ; 400l sump capacity ; safety signage ; reinforced doors for security ; built to resist fire for up to 30 minutes ; powder coated paint finish ; 2x 5-lever deadlocks ; crane lifting eyes for easy transportation ; forklift skids in this range. If the capacity or footprint here does not suit, contact us and we will size it against what you need to store.
