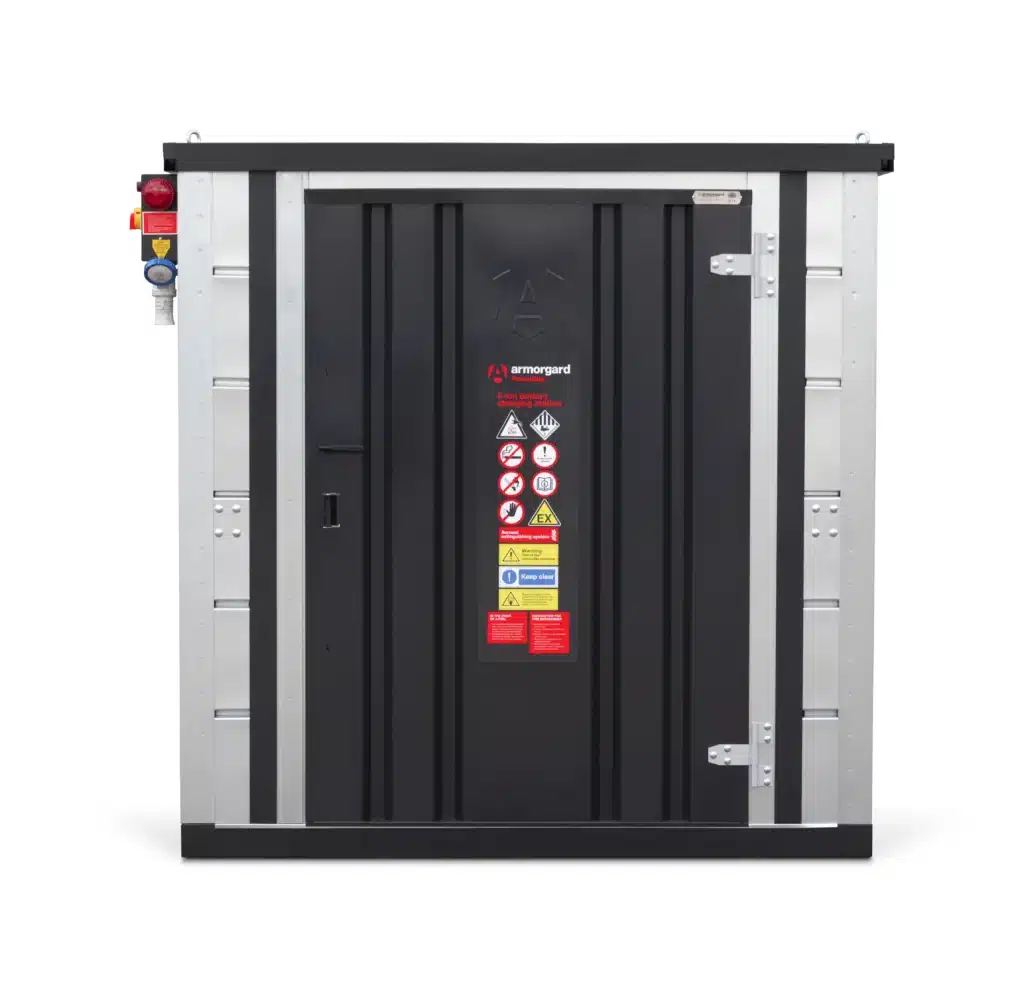

The PowerStor PWR2 is part of the Armorgard PowerStation range. A secure charging and power station built for site conditions, keeping batteries and tools charged, contained and locked when not in use. External dimensions are 2158mm x 2037mm x 2100mm, with an internal capacity of 1920 x 1851 x 1898. Unit weight 540kg.
Key Features
- Fire Resistance - built to specification for Fire suppression system fitted (no time rating published) of fire resistance, delaying involvement of the contents in a fire and buying time to evacuate and respond.
- Shelving - fitted with 5 shelves (515mm depth).
- Locking - secured by 2x 5-lever deadlocks, supplied with 3 keys.
- Construction - manufactured from 1mm and 2mm steel, finished in galvanised and powder coated.
- Finish and Colour - Black grey: RAL 7021, giving a durable, weather-resistant surface that stays legible and visible on site.
- Dimensions - external footprint of 2158mm x 2037mm x 2100mm, internal 1920 x 1851 x 1898. All dimensions are approximate and include protrusions.
Technical Specifications
| Specification |
Value |
| Product Code |
PWR2 |
| External Dimensions (W x D x H) |
2158mm x 2037mm x 2100mm |
| Internal Dimensions |
1920 x 1851 x 1898 |
| Weight |
540kg |
| Fire Resistance |
Fire suppression system fitted (no time rating published) |
| Shelves |
5 shelves (515mm depth) |
| Material & Thickness |
1mm and 2mm steel |
| Finish |
Galvanised and powder coated |
| Colour |
Black grey: RAL 7021 |
| Locking |
2x 5-lever deadlocks |
| Keys Supplied |
3 keys |
| Castors |
Not applicable |
| Suitable For |
Lithium-Ion battery charging |
| Manufacturer |
Armorgard |
More About This Product
Battery charging on site creates two problems at once: the fire risk from lithium-ion cells charging unattended, and the theft risk from batteries and chargers left accessible overnight. This unit addresses both, giving a secure, ventilated enclosure with power distribution built in, so charging happens in one controlled place rather than wherever a socket happens to be free.
Suitable Applications
Charging and secure storage of power tool batteries and equipment on construction sites, in workshops and across depots where tools must be charged and secured overnight. Armorgard specify this unit for lithium-ion battery charging.
Site power is sized on load profile rather than headline capacity — how much is needed, and how much of the time. Where demand varies with long quiet periods, hybrid generators and battery storage cut fuel, noise and emissions.
How to Use the PowerStor PWR2
- Position the unit on firm, level ground with access to a suitable power supply.
- Connect to site power and check the supply is protected and correctly rated.
- Load batteries and chargers into the compartments, keeping ventilation paths clear.
- Do not charge damaged or swollen batteries - remove them from service.
- Lock the unit when unattended and when charging overnight.
- PAT test all electrical components at the intervals required by your site procedures.
Warning:
Never charge damaged, swollen or leaking batteries. Do not cover the unit or obstruct ventilation while charging. All electrical components must be PAT tested at the intervals your site procedures require.
Safety Information
- Do not charge damaged, swollen or leaking batteries.
- Keep ventilation paths clear and do not cover the unit while charging.
- Use only chargers approved for the batteries being charged.
- PAT test all electrical components at the intervals your site requires.
- Do not run extension leads from the internal sockets - this can overload the supply.
- Keep the unit locked when unattended.
Inspection and Maintenance
Inspect regularly for corrosion, impact damage and correct operation of locks and hinges. The unit is built from 1mm and 2mm steel and finished in galvanised and powder coated, which stands up to site conditions but benefits from being kept clean. Replacement keys and spare parts are available from Armorgard against the unit's serial number.
Frequently Asked Questions
Q: What does the fire resistance rating mean?
The unit is built to specification for Fire suppression system fitted (no time rating published) of fire resistance. That is intended to delay the contents becoming involved in a fire and give time to evacuate and respond. It is one control measure among several and does not replace a fire risk assessment.
Q: Where can this unit be sited?
Armorgard specify it for lithium-ion battery charging. Siting it outside those conditions may affect both its performance and its warranty.
Q: How many keys are supplied, and can I get more?
The unit comes with 3 keys. Replacement and additional keys are available from Armorgard against the unit's serial number, so keep a record of it.
Q: Is this available in other sizes?
Yes - Armorgard list 1 other sizes feature icons (as displayed): 2x 5-lever deadlocks ; crane lifting eyes ; fire suppression ; forklift pockets ; light ; power 230v ; use on site features & specs (as published): 2m deep ; stand-alone fire suppression system to protect the unit and its contents at all times ; get started easily with this plug and play charging unit ; 32x individually switched 230v power sockets with rcd protection ; the 5 fixed shelves help keep contents organized ; powered by a single 32a / 230v commando plug ; our signature 5-lever deadlocks keep the unit secure ; arrives pre-assembled for fast setup ; fork pockets and crane lifting eyes for simple repositioning ; hard-wearing steel checker-plate on the floor to handle high foot traffic ; weatherproof unit sheds rainwater to keep contents dry and safe ; optional extra: gsm phone and text alert when there is a fire in this range. If the capacity or footprint here does not suit, contact us and we will size it against what you need to store.
