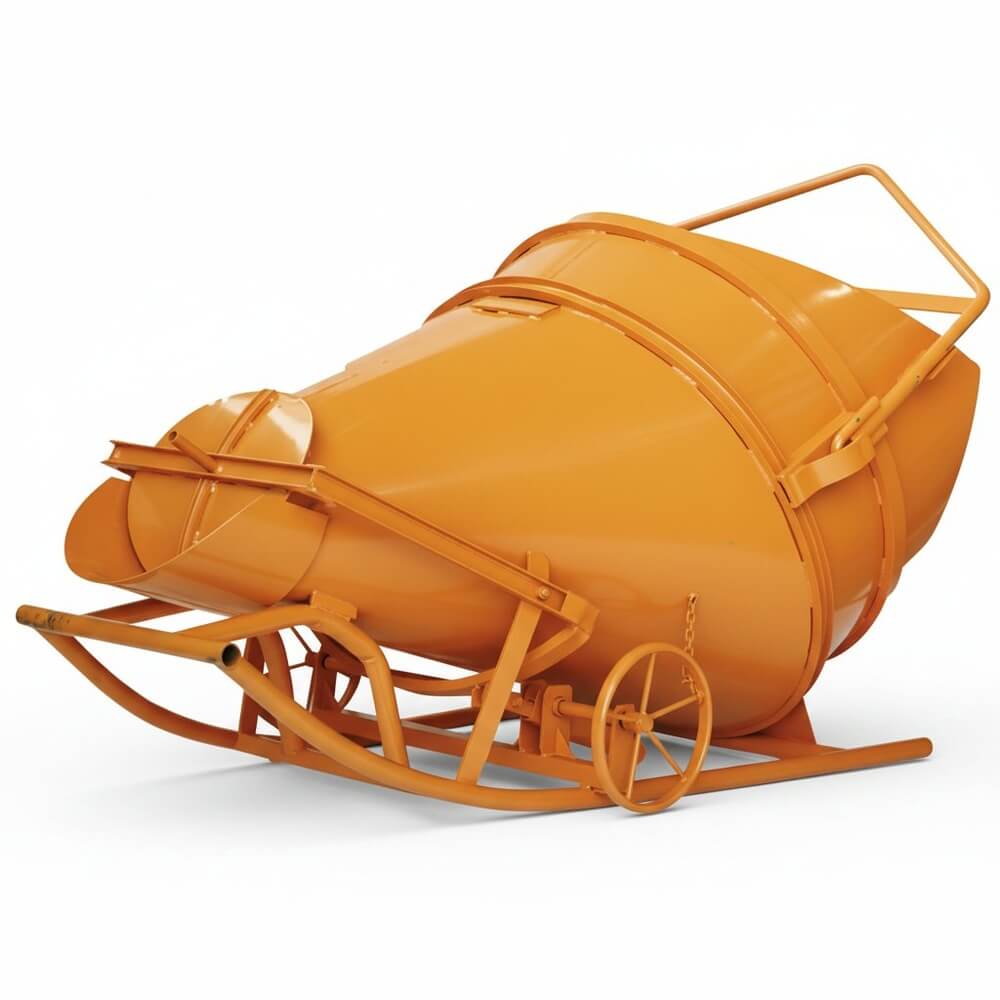

Eichinger 1025H Geared Coneflow Concrete Skip

Model 1025H | Geared Gate Mechanism | CE Marked | UKCA Compliant

The Eichinger 1025H Geared Coneflow Concrete Skip is a heavy-duty, horizontal round concrete skip designed for fast, controlled pouring of concrete in large volumes. Built in Germany by Florian Eichinger GmbH, the 1025H features a geared gate mechanism (hand wheel) that gives the operator precise control over discharge rate — turn the wheel to open, reverse to close. The horizontal round shape with lateral outlet and rugged lift beam make this one of the most popular and trusted concrete skips on the market. Available in 500, 750 and 1,000 litre capacities.

Technical Specifications

Key Features

• Geared gate mechanism — hand wheel operation provides precise, controlled discharge of concrete. Turn the wheel to open incrementally, reverse to close. Ideal for metering large volumes accurately.
• Horizontal round shape — the low-profile, barrel-style design provides excellent stability during crane transport and minimises the risk of concrete sloshing or spillage.
• Lateral outlet — side-mounted discharge allows direct pouring into formwork, foundations, and trenches without repositioning the skip.
• Rugged heavy-duty construction — built from heavy-gauge steel for long service life on demanding construction sites. Designed to withstand daily use in hire fleet and groundworks environments.
• Bale arm lifting — supplied as standard with a bale arm for fast, secure crane attachment. The 1,000 litre model is supplied with a traverse (crossbeam) for balanced lifting.
• Locking chain — the gate handle is secured with a locking chain during filling and transport, preventing accidental discharge.
• Easy to clean — the open barrel shape makes it straightforward to clean residual concrete and grout from the skip body and gate area after each pour.
• German engineered — manufactured by Florian Eichinger GmbH in Bavaria, Germany. Eichinger has been producing construction equipment since 1904 and is one of Europe's leading manufacturers of crane attachments.

What Is the Eichinger 1025H Coneflow Skip Used For?

The 1025H geared coneflow skip is designed for crane-assisted concrete pouring on construction sites. Its geared gate mechanism makes it particularly well suited to applications where controlled, high-volume discharge is required. Typical uses include pouring concrete into slab foundations, strip footings, pile caps, retaining walls, lift shafts, stairwells, and large formwork sections. The lateral outlet allows concrete to be directed precisely into the target area. The skip can also be used as a roll-over skip where site conditions require it.

How Does the Geared Gate Mechanism Work?

1. Check that the gate is fully closed before filling the skip with concrete. Secure the gate handle using the locking chain to prevent accidental discharge.
2. Attach the skip to the crane using the bale arm. Ensure the lifting hook is fully closed and secured. Raise the skip slowly off the ground and check the load is balanced and stable before moving.
3. Position the skip above the pour area. Avoid jolting movements during transport. Keep the area below clear of personnel.
4. Release the concrete by turning the geared hand wheel. Pour in short, controlled bursts — do not discharge the full contents at once. Turn the wheel in the opposite direction to close the gate between pours.
5. After use, clean the skip thoroughly. Remove all residual concrete and grout from the gate area (inside and out) and the skip body. Failure to clean the gate mechanism will cause it to seize over time.

Choosing the Right Size

The 1025H is available in three capacities. The 500 litre model (1025H.8) is the lightest option at 260 kg, making it suitable for smaller cranes and confined sites. The 750 litre model (1025H.10) offers a good balance between capacity and weight for mid-range pours. The 1,000 litre model (1025H.12) is the largest in this range, with a 2,400 kg SWL, and is supplied with a traverse crossbeam for balanced lifting — ideal for high-volume groundworks and large slab pours. All three models share the same 1,150 mm width, so crane clearance requirements are consistent across the range.

Certification & Compliance

The Eichinger 1025H is CE marked in accordance with EU Machinery Directive 2006/42/EC and meets the requirements for UKCA compliance in the Great Britain market. The skip is designed and manufactured to the occupational health and safety standards of the German Berufsgenossenschaften (BG). Following Brexit, the UK government has confirmed indefinite recognition of CE marking for lifting equipment in Great Britain, meaning businesses can use either UKCA or CE marked equipment provided it is accompanied by a Declaration of Conformity (DoC). An EC Declaration of Conformity is supplied with every unit. Under the Lifting Operations and Lifting Equipment Regulations 1998 (LOLER), concrete skips must be thoroughly examined by a competent person at intervals not exceeding 12 months, or in accordance with an examination scheme.

Safety Information

• PPE required — gloves, goggles, hard hat, steel toecap boots, and high-visibility vest must be worn when operating this equipment.
• Risk assessment — a risk assessment must be carried out prior to moving or using this equipment.
• Overhead hazards — check the intended area of use is clear of overhead cables, power lines, or similar hazards before lifting.
• Gate security — always ensure the discharge gate is fully closed and the locking chain is secured before filling and transporting the skip.
• Controlled discharge — release concrete in short, controlled bursts by turning the hand wheel. Never discharge the full contents at once.
• Bale arm — secure the bale arm in an upright position when the skip is not in use to prevent it from swinging down.
• Load balance — raise the filled skip slowly off the ground and verify the load is balanced and secure before moving to the pour area.
• Do not operate under the influence of alcohol, drugs, or if feeling unwell.

Inspection & Maintenance

Under LOLER 1998, concrete skips must be thoroughly examined by a competent person at intervals not exceeding 12 months. Pre-use visual inspections should be carried out before every shift. Check for signs of structural damage, cracks, or excessive wear. Inspect the geared gate mechanism for smooth operation — the hand wheel should turn freely without resistance or grinding. Verify the locking chain is intact and the bale arm pivot points are not worn. Clean the skip thoroughly after every use, paying particular attention to the gate area where concrete residue can build up and impair the seal. Report any defects immediately and remove the skip from service until repaired.
