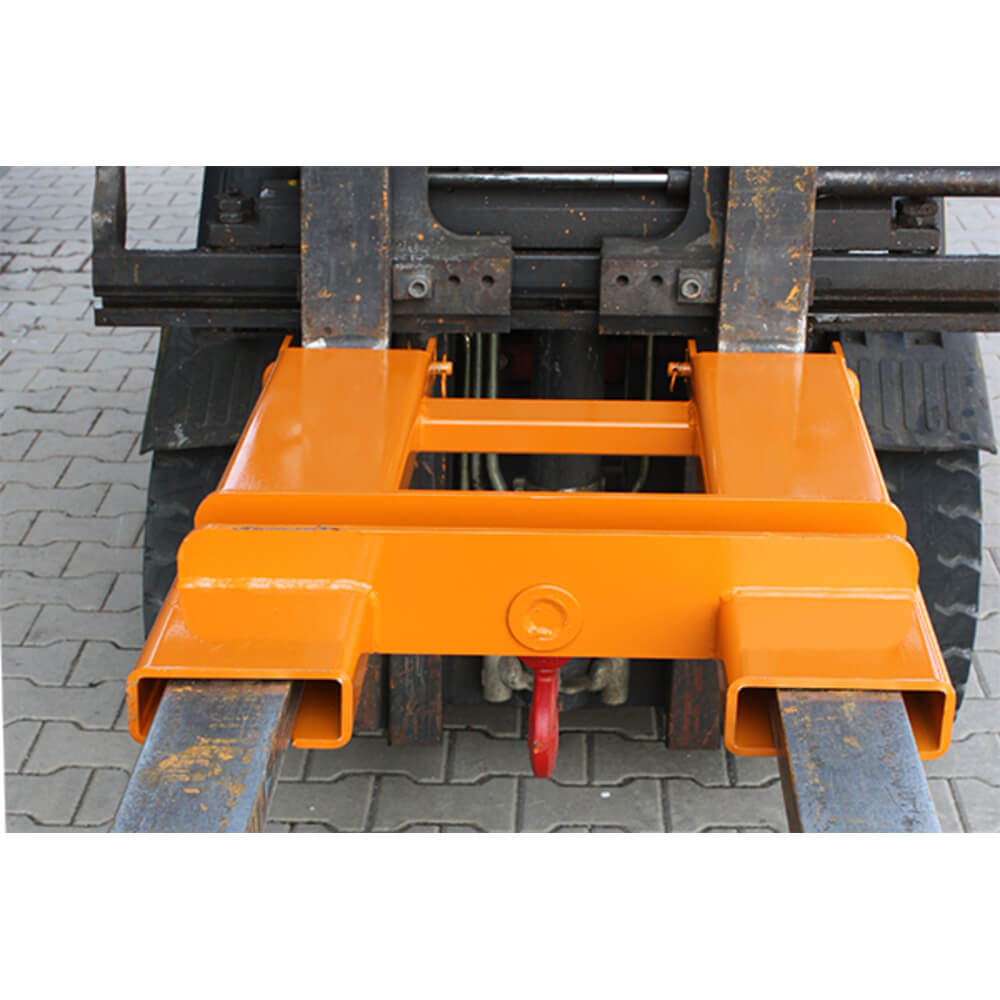

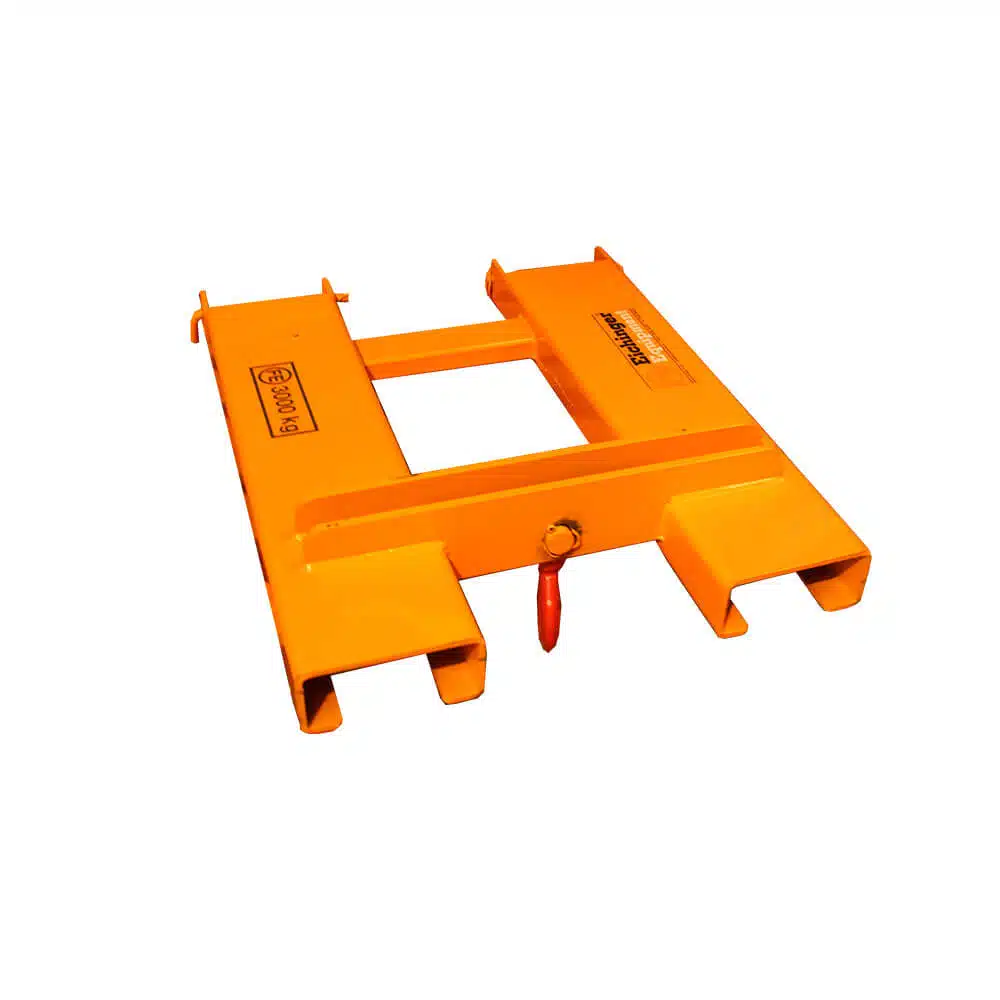

A fork mounted load hook that converts any forklift or telehandler into a simple mobile crane, enabling loads to be lifted and moved by chains and slings securely and safely. The Eichinger 2084 mounts directly onto the forks via fork pockets and is secured by a heel pin rather than a chain, providing a positive mechanical connection. The capacity of the hook must always be used in relation to the rated load capacity of the host machine; manufactured by Eichinger, a German manufacturer with over 100 years of experience.
Key Features
- Heel pin securing system provides a positive mechanical connection between the hook and the forks, preventing movement during use. Secured by heel pin, not chain.
- Safety swivel hook with fully closing gate for secure attachment of chains and slings to the load.
- Three capacity ratings covering 2000kg, 3000kg and 5000kg to suit a wide range of forklift and telehandler fleets.
- Fork pocket design with 940mm pocket length accepts a wide range of fork sizes up to 190 x 70mm section.
- Compact and lightweight at 45kg or 60kg depending on size, minimising the impact on the host machine's available payload.
- No dragging loads. The hook is designed for vertical lifting and moving only. Dragging loads places undue stress on the heel pins and must not be attempted.
Technical Specifications
| Product Code |
Capacity |
Pocket Length |
Pocket Width |
Width |
Max Fork Size |
Weight |
| 2084.2 |
2000kg |
940mm |
210mm |
650mm |
160 x 60mm |
45kg |
| 2084.3 |
3000kg |
940mm |
210mm |
730mm |
190 x 70mm |
60kg |
| 2084.5 |
5000kg |
940mm |
210mm |
730mm |
190 x 70mm |
60kg |
Fully Certified | Always Refer to the Load Plate on the Unit and Use in Conjunction with the Forklift Manufacturer's Guidelines
The rated capacity of the fork mounted hook must not be exceeded. The total lifting capacity is limited by the lower of the hook rating and the forklift's own rated capacity at the working load centre. Always consult the forklift manufacturer's guidelines before use. Compliant with PUWER 1998 (Provision and Use of Work Equipment Regulations).
The effective lifting capacity is always limited by the rated capacity of the host forklift or telehandler at the relevant load centre, which may be lower than the hook's own rated capacity. Check the forklift data plate and manufacturer's guidelines before use.
More About This Product
A fork mounted load hook that converts any forklift or telehandler into a simple mobile crane, enabling loads to be lifted and moved by chains and slings in a secure and safe manner. The 2084 mounts directly onto the forks of the host machine via fork pockets and is secured by a heel pin, not a chain, providing a positive mechanical connection. The capacity of the hook must always be used in relation to the rated load capacity of the host forklift or telehandler. Manufactured by Eichinger, a German manufacturer with over 100 years of experience in construction site equipment.
Suitable Applications
The fork mounted hook is suited to construction sites and industrial environments where a forklift or telehandler is already on site and occasional crane-type lifts are required without the need for a dedicated crane. Typical applications include lifting materials, plant and equipment that cannot be forklifted directly, repositioning loads in areas with restricted overhead clearance, and general lifting tasks using chains and slings from a telehandler on a construction site.
A hook suspends the load, making the work a lifting operation. For more reach see jibs; for loads that can be carried on the tines, fork extensions.
How to Use
- Set the forklift forks to the appropriate width to suit the fork pockets on the hook.
- Approach the grounded hook from the front and line the forks up with the fork pockets. Detach the heel pins and insert the forks into the pockets, ensuring the hook is mounted as far back on the forks as possible.
- Re-attach the heel pins, ensuring the assembly passes behind the heel of each fork and secures the unit to the forklift. Do not proceed until both heel pins are correctly fitted.
- Raise the hook and position the safety swivel hook over the lifting point of the load. Lower to a point where the load can be attached safely. Once attached, ensure the gate on the safety swivel hook is fully closed.
- Raise the load and check that the hook is balanced and the load is secure before moving. Move the load smoothly to the desired location, avoiding jolting or swinging.
- Lower the load until fully grounded, then lower the hook further until the safety swivel hook can be safely released from the load.
- Once all lifts are complete, lower the hook to the ground, release the heel pins, reverse the forklift clear of the fork pockets, and replace the heel pins on the unit ready for next use.
Important:
Never exceed the rated capacity of the hook or the forklift, whichever is lower. Never drag loads. Always ensure the work area is clear of personnel during the lift.
Inspection and Maintenance
Inspect the hook before each use, including checks on the fork pockets, heel pins, swivel hook and gate for damage, deformation or wear. Remove from service if any component shows signs of cracking, deformation or excessive wear. Store the unit with heel pins attached in a secure location when not in use.
Frequently Asked Questions
Q: Which size fork mounted hook do I need?
Select the hook based on the maximum load you need to lift. The 2084.2 is rated to 2000kg, the 2084.3 to 3000kg, and the 2084.5 to 5000kg. In all cases the effective capacity is limited by the lower of the hook rating and the forklift's own rated capacity at the relevant load centre. Check the forklift data plate before selecting.
Q: How is the hook secured to the forklift?
The 2084 is secured by heel pins, not chain. The forks are inserted into the fork pockets and the heel pins are fitted behind the heel of each fork, providing a positive mechanical connection. The heel pins must be correctly fitted before any lift is attempted.
Q: Can the hook be used to drag loads along the ground?
No. The fork mounted hook is designed for vertical lifting and moving only. Dragging loads places undue stress on the heel pins and the hook structure and must not be attempted under any circumstances.
Q: What fork sizes does the 2084 accept?
The 2084.2 accepts forks up to 160 x 60mm section. The 2084.3 and 2084.5 accept forks up to 190 x 70mm section. All sizes have a fork pocket length of 940mm and pocket width of 210mm. Check your forklift's fork dimensions against the specification before fitting.
