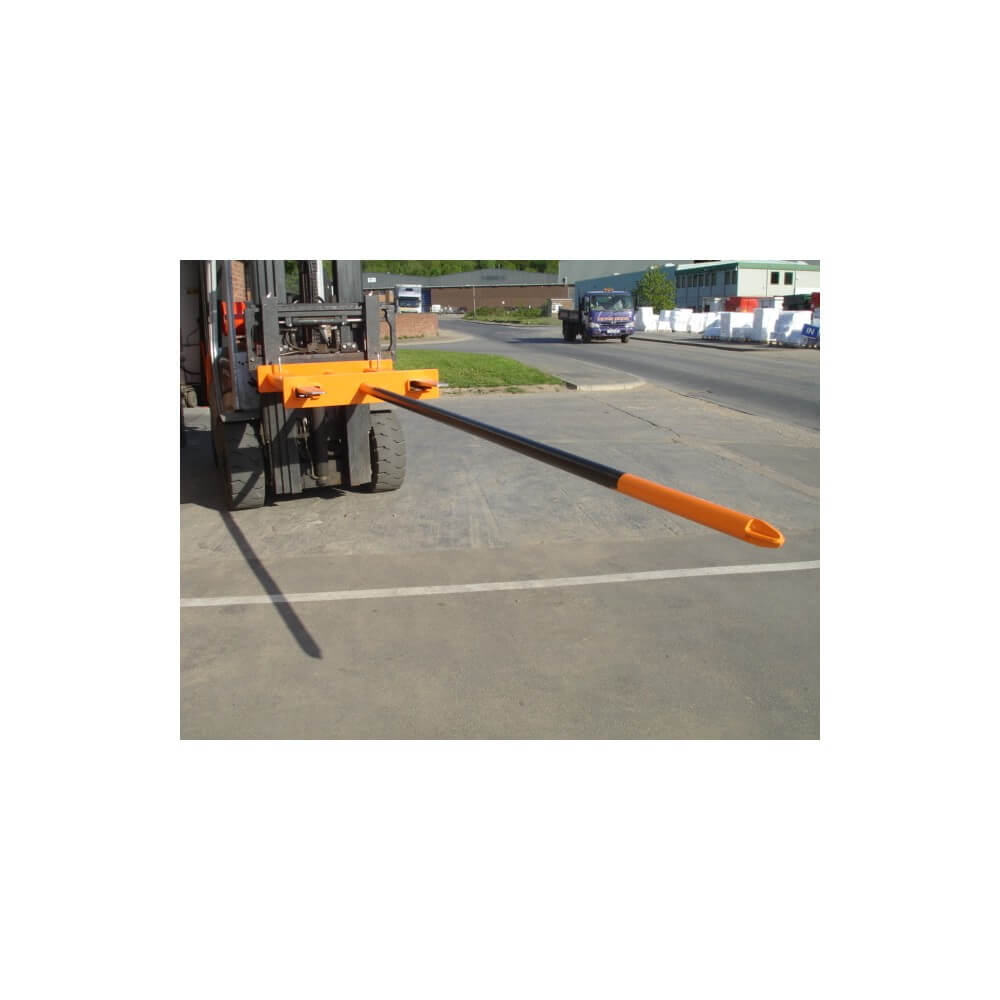

The Invicta Fork Mounted In-Line Pole (Model IFIB) lifts a variety of coiled products, typically in low-volume environments handling mixed pallet and coil applications. Unlike the standard Fork Mounted Pole (IFB), the IFIB mounts in-line with the forks for applications where the approach angle requires the pole to extend directly forward. The high tensile machined pole has a tapered tip for easy location into the core and a smooth surface finish to protect the load, in three models with effective lengths from 3000mm to 3500mm; manufactured in Leeds by Invicta Forks & Attachments.
Key Features
- In-line mounting — pole extends directly forward in line with the forks for front-approach applications
- High tensile machined pole — precision-machined with a tapered tip for easy roll location
- Free standing design — stands independently for easy fork insertion
- Smooth surface finish — protects the load from damage during handling
- Secure attachment — zinc plated heel pins with optional thumbscrew retention
Technical Specifications
| Model |
Boom Dia (mm) |
Effective Length (mm) |
Capacity (kg) |
Load Centre (mm) |
Weight (kg) |
| IFIB-1 |
70 |
3000 |
500 |
2000 |
210 |
| IFIB-2 |
75 |
3000 |
750 |
2000 |
225 |
| IFIB-3 |
75 |
3500 |
750 |
2500 |
240 |
Maximum fork section 125 x 50mm at 695mm centres. Optional thumbscrew retention available.
UK Manufactured | LOLER Compliant
This product is designed and manufactured in the UK by Invicta Forks & Attachments, the UK's largest mechanical forklift attachment manufacturer, based in Leeds. Where applicable, this product is supplied with a test certificate and EC Declaration of Conformity. LOLER 1998 thorough examinations are required every 6 months by a competent person after initial certification.
More About This Product
The Invicta Fork Mounted In-Line Pole (Model IFIB) is capable of lifting a variety of coiled products and is usually used in low volume or occasional usage environments with a mixed pallet and coiled product application. Unlike the standard Fork Mounted Pole (IFB), the IFIB is mounted in-line with the forks for applications where the approach angle requires the pole to extend directly forward. The high tensile machined pole features a tapered tip for easy location into the core and a smooth surface finish to protect the load. Available in three models with effective lengths from 3000mm to 3500mm. Manufactured in Leeds by Invicta Forks & Attachments.
Suitable Applications
The IFIB is suited to the same applications as the IFB — carpet warehouses, paper merchants, textile manufacturers — but is selected when the approach angle requires the pole to extend directly forward rather than offset from the forks.
A boom supports rolls through the core and sits well forward of the carriage, so use the derated figures. For palletised loads fork extensions are the simpler option.
How to Use the Fork Mounted In-Line Pole
- Position forks to the correct distance apart.
- Drive forks into pockets with thumb screws retracted.
- Tighten thumb screws securely.
- Insert the pole into the core of the coiled product and lift.
Warning:
Ensure the pole is fully inserted before lifting. Do not tip load or shock load. Do not exceed the safe working load.
Safety Information
- Ensure thumbscrews are securely fastened.
- Ensure the pole is fully inserted before lifting.
- Do not tip load.
- Do not shock load.
Inspection and Maintenance
Inspect weekly — focus on weld points, damaged components and pole alignment. Certified for six months.
Frequently Asked Questions
Q: What is the difference between the IFB and IFIB?
The IFB has the pole offset from the forks, whilst the IFIB mounts the pole in-line (directly forward). Choose based on your approach angle and aisle configuration.
