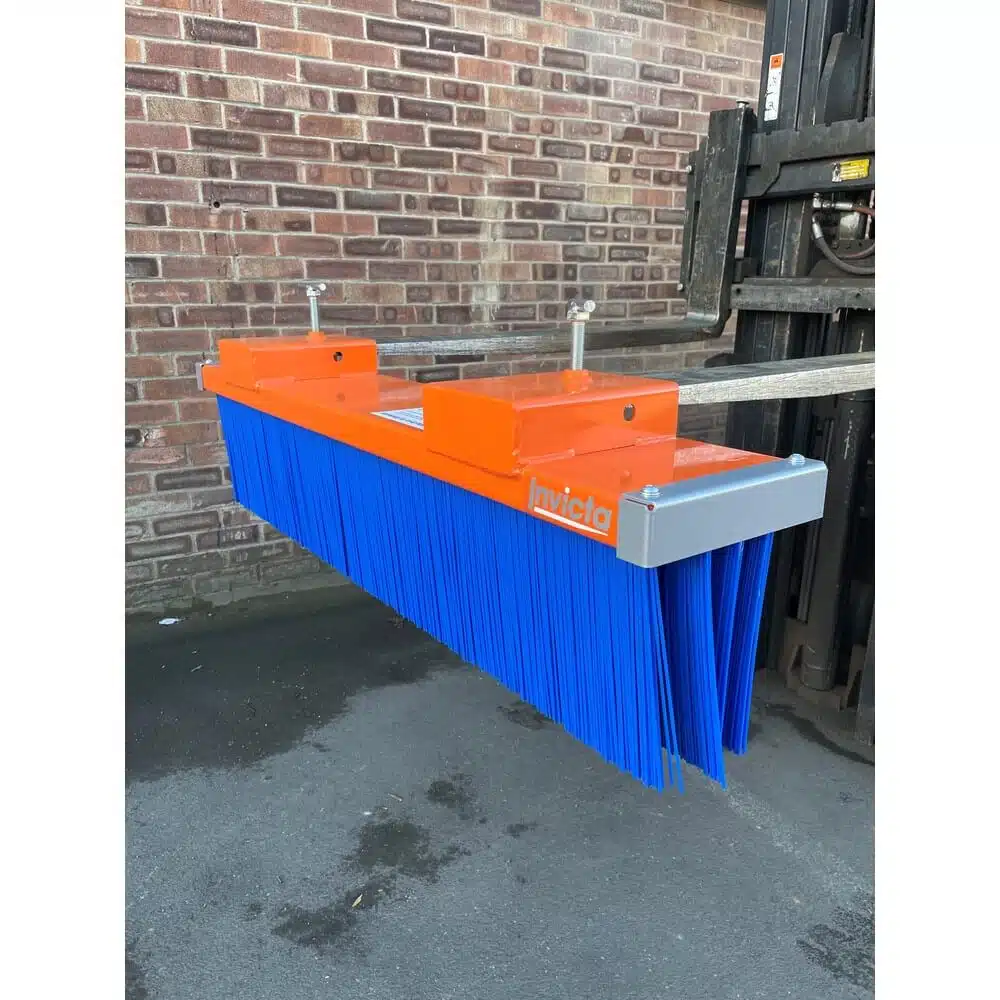

The Invicta Fork Mounted Sweeper — affectionately known as 'The Basil' — is a quick and easy solution for re-heaping loose granule products such as sand, top soil and grain. Two configurations are available: the ECO range with 5 rows of brushes for lighter-duty tasks, and the heavy-duty range with 8 rows for large open spaces and heavier materials, in widths from 1200mm to 2450mm. All models feature interchangeable blue nylon brushes and the facility to hang the Fork Mounted Magnet from the frame; manufactured in Leeds by Invicta Forks & Attachments.
Key Features
- Interchangeable nylon brushes — easy to replace when worn for continued sweeping performance
- ECO and heavy-duty options — 5-row version for light tasks, 8-row version for heavy materials and large areas
- Magnet compatible — facility to hang the Fork Mounted Magnet from the sweeper frame
- Quick attachment — twist screw retention onto the fork blade — no tools required
- Wide range — six models from 1200mm to 2450mm sweeping width
Technical Specifications
| Model |
Brush Width (mm) |
No. of Rows |
Weight (kg) |
C of G (mm) |
| IFMS-1200-ECO |
1200 |
5 |
27 |
125 |
| IFMS-1500-ECO |
1500 |
5 |
37 |
125 |
| IFMS-1800-ECO |
1800 |
5 |
40 |
125 |
| IFMS-1500 |
1500 |
8 |
51 |
185 |
| IFMS-1800 |
1800 |
8 |
61 |
185 |
| IFMS-2450 |
2450 |
8 |
95 |
185 |
Maximum fork section 150 x 60mm at 683mm centres. Zinc plated twist screws for attachment.
UK Manufactured | LOLER Compliant
This product is designed and manufactured in the UK by Invicta Forks & Attachments, the UK's largest mechanical forklift attachment manufacturer, based in Leeds. Where applicable, this product is supplied with a test certificate and EC Declaration of Conformity. LOLER 1998 thorough examinations are required every 6 months by a competent person after initial certification.
More About This Product
The Invicta Fork Mounted Sweeper — affectionately known as 'The Basil' — is a quick and easy solution for re-heaping loose granule products such as sand, top soil, grain or similar materials. Available in two configurations: the ECO range with 5 rows of brushes for lighter-duty tasks, and the heavy-duty range with 8 rows for large open spaces and heavier materials. Widths range from 1200mm to 2450mm. All models feature interchangeable blue nylon brushes and the facility to hang the Fork Mounted Magnet from the frame. Manufactured in Leeds by Invicta Forks & Attachments.
Suitable Applications
The Basil is ideal for warehouse yards, construction sites, farms, quarries, grain stores, builders merchants and any location where loose granular material needs to be swept into heaps for collection. Common uses include sweeping sand, gravel, top soil, grain, sawdust and general site debris.
How to Use the Fork Mounted Sweeper – 'The Basil'
- Position forks to the correct distance apart.
- Drive forks into fork hoops with twist screws retracted.
- Tighten twist screws onto the fork blade.
- Lower the brush so bristles contact the sweeping surface.
- Drive at a slow jogging pace in a straight line.
- Lift the brush, reverse and repeat until the area is clear.
- Approach heaps at right angles to create a single pile for collection.
Warning:
Do not corner whilst sweeping as material will spill. Do not reverse with the brush in contact with the surface. Do not stand or place items on the brush hood during storage.
Safety Information
- Ensure twist screws are fully tightened before use.
- Do not corner whilst sweeping.
- Do not reverse with the brush on the ground.
Inspection and Maintenance
Inspect monthly. Swap front and rear bristles periodically to ensure even wear. Replace brushes when worn.
Frequently Asked Questions
Q: How do I choose between the ECO and heavy-duty versions?
The ECO (5-row) version is suited to lighter materials in smaller areas. Choose the heavy-duty (8-row) version for larger open spaces, heavier materials or more frequent sweeping duties.
Q: Can I use it with the magnet?
Yes. The IFMM Fork Mounted Magnet can be hung from the sweeper frame for combined sweeping and magnetic debris collection.
