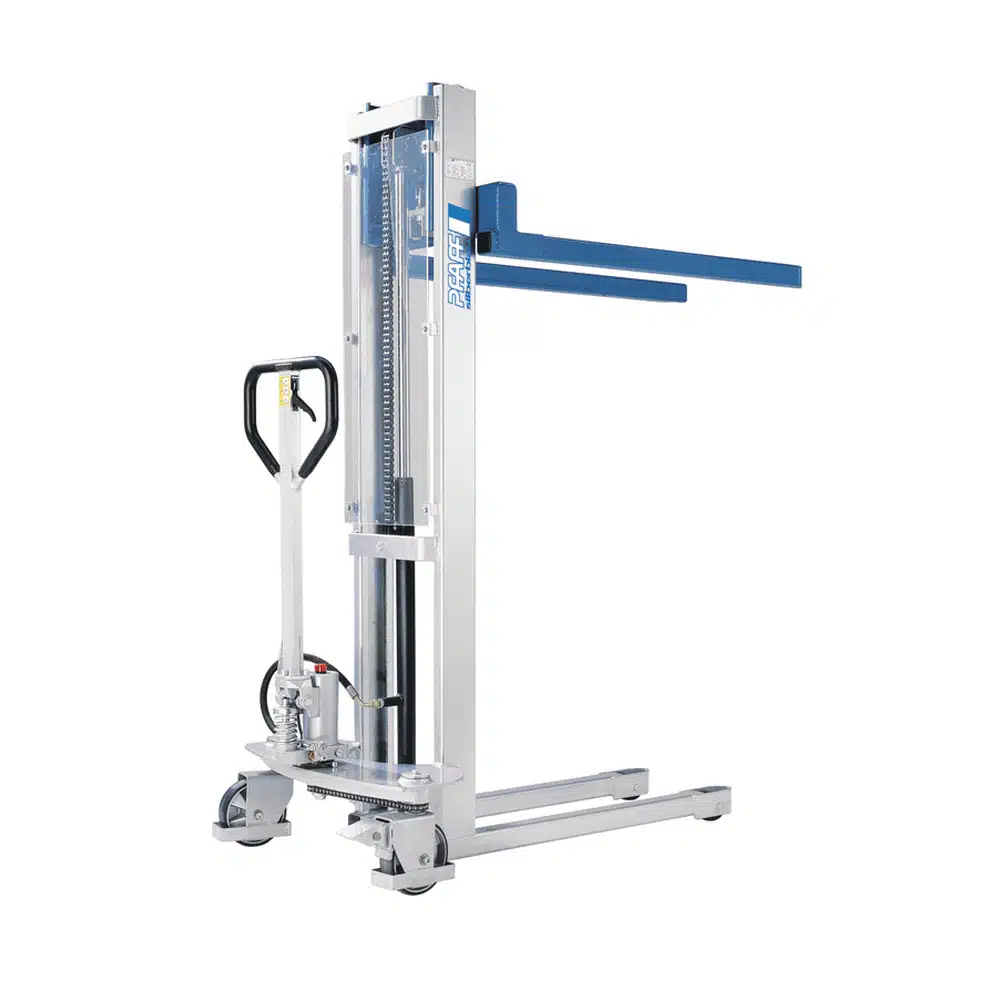

The Pfaff-Silberblau HV 1008 is a manual hydraulic hand stacker that bridges the gap between a hand pallet truck and a counterbalance forklift, pairing a full 1,000 kg capacity with mast-based lift to 900 mm. The operator pumps a hand lever to raise the load progressively, making it ideal for stacking pallets onto racking, loading workbenches or lifting onto vehicle tail-lifts. A parking brake on the steering roller is fitted as standard. Engineered and manufactured by Pfaff-Silberblau (Columbus McKinnon Group).
Key Features
- Ergonomic safety control handle — one-hand operation of lifting, driving and lowering.
- Quick-lift for loads up to 100 kg — faster mast travel for lighter loads, reducing pumping effort.
- Finely metered lowering — the lowering speed can be controlled precisely for sensitive placement of the load.
- Single-acting hand pump — increased lift per handle stroke; no electrical supply required.
- Robust mast construction — with hard chromium plated piston for durability and corrosion resistance.
- Forced steering rollers — for easy, predictable handling and manoeuvring.
- Steering roller with brake — for safe parking of the loaded stacker.
- 1,122 mm fork length — suits standard UK pallets (1,000 × 1,200 mm) and Euro pallets (800 × 1,200 mm). The 90 mm lowered fork height clears EN 13698-compliant pallets.
Technical Specifications
| Model |
HV 1008 |
| Article Number |
34518032 |
| Capacity |
1,000 kg |
| Maximum Lift Height (h3 + h13) |
900 mm |
| Stroke / Freelift (h3 / h2) |
810 mm |
| Height, Mast Retracted (h1) |
1,300 mm |
| Fork Height Lowered (h13) |
90 mm |
| Load Centre (c) |
600 mm |
| Fork Length (l) |
1,122 mm |
| Outside Fork Width (b1) |
570 mm |
| Fork Tine Width (e) |
60 mm |
| Fork Tine Thickness (s) |
60 mm |
| Overall Length (L1) |
1,675 mm |
| Overall Width (B) |
765 mm |
| Wheelbase (y) |
1,075 mm |
| Load Rollers |
80 × 55 mm (PUR) |
| Steering Rollers |
180 × 50 mm (PUR) |
| Aisle Width, Pallet (Ast) |
1,875 mm |
| Turning Circle Radius (Wa) |
1,445 mm |
| Lift per Crank Stroke (with/without load) |
17 / 50 mm |
| Unit Weight |
179 kg |
| Country of Manufacture |
Germany |
CE Marked & EN 1757-1 Compliant
Supplied with an EC Declaration of Conformity under EU Machinery Directive 2006/42/EC. Manufactured in compliance with EN 1757-1 (Pedestrian-controlled stacker trucks).
Suitable Applications
The HV 1008 is the right tool for low-volume stacking — lifting loads onto workbenches, double-stacking pallets on light-duty shelving, transferring pallets onto trailer tail-lifts, and loading workshop saw benches and assembly stations. The 900 mm lift suits loading onto most workbenches and double-stacking standard 1,000 mm pallets two-high.
Safety Information
- Do not exceed the rated 1,000 kg capacity.
- Do not use to lift personnel under any circumstances.
- Distribute the load evenly across both forks. Off-centre loading on a raised stacker is the primary cause of tip-over.
- Always engage the parking brake before lifting or lowering.
- Do not move the truck under load with the forks fully raised. Lower the load completely before travelling any distance.
- Stack only on stable, level surfaces.
- Inspect lifting chains at every annual examination — chains stretched beyond manufacturer tolerance must be replaced.
- Inspect annually under PUWER 1998. The mast assembly should receive particular attention.
