Yale AJH-6100 SR Aluminium Jack — 100t with Safety Lock Nut Ring

Yale AJH-6100 SR Aluminium Jack – 100t with Safety Lock Nut Ring

Part no. N13200971
£8,247.43£6,872.86Inc VATEx VAT
£6,872.86 ex VAT£8,247.43 inc VAT ·

About this item

  • Aluminium hydraulic jack with 100 tonne capacity, the largest in the AJS/AJH range
  • Safety lock nut ring holds the load mechanically with hydraulics released
  • Lower weight than an equivalent steel jack, Yale article N13200971

Product description

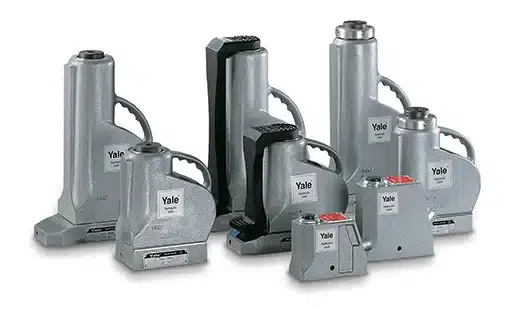

The Yale AJH-6100 SR is a 100 t aluminium hydraulic jack, the largest in Yale's AJS/AJH aluminium jack range.

Its safety lock nut ring screws down against the body so the load is held mechanically, even with the hydraulic pressure released.

The aluminium body keeps it to 53 kg, far lighter than a steel jack of the same rating.

Key Features
  • 100 t capacity
  • Safety lock nut ring for mechanical load holding
  • Aluminium body, 53 kg
  • 152 mm stroke, 366 mm overall height
Design & Construction

Hydraulic pressure can leak away over time. The lock nut ring on the ram is wound down onto the cylinder once the load is at height, so the load rests on the thread rather than the oil.

What's Included
  • Yale AJH-6100 SR aluminium hydraulic jack, filled with hydraulic oil
  • Operating lever

Specifications

ModelAJH-6100 SR
Article numberN13200971
Capacity100 t
VariantSR (safety lock nut ring)
ConstructionAluminium body
Stroke152 mm
Overall height366 mm
Base plate305 x 250 mm
Weight53.0 kg
PumpSelf-contained, worked by the supplied operating lever; Yale lists no separate pump or hose

Documents (1)

View on this page or download.

PDFDatasheet
PDF document

Using and looking after it

Always read the manufacturer’s instructions before use. See the documents

Typical Applications
  • Heavy lifts where the load must be held for long periods
  • Bridge and structure jacking
  • Heavy plant and machinery installation
  • Sites where a lighter jack is easier to place

Questions and answers

Q: What does SR mean?

A: Safety lock nut ring: a threaded ring that holds the load mechanically.

Q: Is a pump included?

A: No separate pump is needed. Yale supply the jack ready for use with hydraulic oil and the operating lever, and list no external pump or hose for it. Ask us if you want to confirm this for your set-up.

Q: How long is the lead time?

A: An estimated 61 working days. Contact us for the current ETA.
