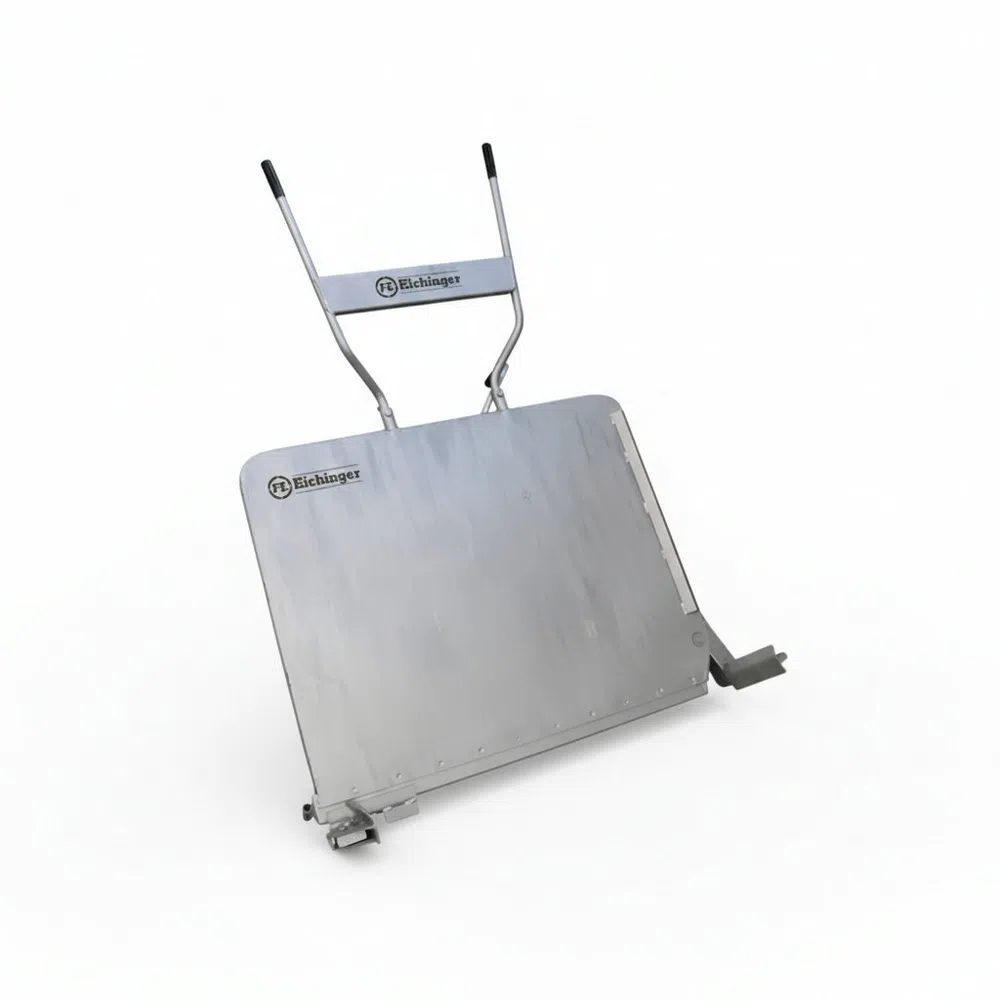

Engineered and manufactured in Germany by Eichinger, the Brick & Block Barrow (Model 1104) is a heavy-duty, manually operated trolley for moving paving slabs, concrete blocks, stone panels and steel-banded paving materials around construction sites, building yards and industrial depots. A 400 kg load capacity, large pneumatic wheels, hot-dip galvanised steel construction and steplessly adjustable clamping mechanism provide safe, single-person transport of heavy flat materials. This CE marked unit is supplied with an EC Declaration of Conformity and TÜV Nord GS certification, with a UKCA certificate provided where required.
Key Features
- 400 kg safe working load — handles heavy paving slabs, concrete blocks, and steel-banded paving packs
- Hot-dip galvanised steel construction — corrosion-resistant as standard for outdoor site use
- Large galvanised support shield (1,190 × 900 mm) — provides a wide, stable platform for flat materials
- Steplessly adjustable clamping width (570 – 1,050 mm) — accommodates a wide range of slab and block sizes without tools
- Hand lever clamping with overload protection — max. 15 kg actuation force prevents material deformation from over-clamping
- Two large pneumatic tyres — smooth transport across rough and uneven ground
- Ergonomic plastic handles — comfortable grip for single-person manual operation
- Delivered pre-assembled — only the handles need fitting into the uprights and securing with the supplied bolts
- CE marked, UKCA certified, and TÜV/GS certified — compliant with EU Machinery Directive 2006/42/EC
Technical Specifications
| Specification |
Value |
| Model |
Eichinger 1104.1 |
| Product Type |
Brick & Block Barrow / Slab Transport Trolley |
| Load Capacity (SWL) |
400 kg |
| Shield Dimensions (W × H) |
1,190 × 900 mm |
| Clamping / Opening Width |
570 – 1,050 mm (steplessly adjustable) |
| Jaw Length |
200 mm |
| Overall Height |
1,635 mm |
| Self-Weight |
75 kg |
| Wheels |
Two large pneumatic tyres (3.5 bar) |
| Clamping Mechanism |
Hand lever with overload protection (max. 15 kg actuation force) |
| Standard Finish |
Hot-dip galvanised steel |
| Certification |
CE Marked (2006/42/EC) + UKCA + TÜV Nord GS |
CE Marked, UKCA Certified & TÜV/GS Certified
This product is supplied with an EC Declaration of Conformity (CE marking) in accordance with EU Machinery Directive 2006/42/EC, and a UKCA certificate is also provided where required for the UK market. The product holds a TÜV Nord certificate with GS (Tested Safety) mark. Harmonised standards EN ISO 12100-1 and EN ISO 12100-2 (Safety of Machinery) have been applied.
More About This Product
Engineered and manufactured in Germany by Eichinger, the Brick & Block Barrow (Model 1104) is a heavy-duty, manually operated slab and block transport trolley designed for moving paving slabs, concrete blocks, stone panels, and steel-banded paving materials around construction sites, building yards, and industrial depots. With a 400 kg load capacity, large pneumatic wheels, a robust hot-dip galvanised steel construction, and a steplessly adjustable clamping mechanism, it provides safe, single-person transport of heavy flat materials across site. This CE marked unit is supplied with an EC Declaration of Conformity and TÜV Nord GS (Tested Safety) certification as standard. All items are supplied with a CE certificate, and a UKCA certificate is also provided where required for the UK market.
Where Is the Brick & Block Barrow Used?
The Eichinger 1104 is designed for any environment where heavy flat materials need moving by hand. It is commonly used on construction sites, building sites, paving and landscaping projects, brickwork operations, masonry yards, and industrial depots. The large pneumatic wheels handle uneven surfaces, compacted gravel, and rough ground with ease, while the adjustable clamping mechanism securely grips slabs, blocks, kerb stones, and steel-banded paving packs for safe transport by a single operator.
How to Operate the Brick & Block Barrow
- Position the barrow and adjust the clamping width to suit the material to be transported.
- Move the clamping lever to the left to open the left jaw to its fully open position.
- Wheel the barrow up close to the load, ensuring the material sits flush against the back stop.
- Turn the adjustment screw clockwise until the right jaw contacts the load.
- Rotate the clamping lever 90° clockwise until the left jaw clamps firmly against the load (maximum actuation force 15 kg — do not over-tighten).
- Grip the ergonomic handles, tilt the support shield to a horizontal position, and carefully transport the load to the destination.
The barrow is delivered pre-assembled — only the handles need fitting into the uprights and securing with the supplied bolts. Before first use, carry out a visual inspection to confirm the unit has been delivered complete and undamaged. It is manually operated by a single person and requires no external power source.
Certification and Compliance
This product is
CE marked
and supplied with a full EC Declaration of Conformity in accordance with the
EU Machinery Directive 2006/42/EC
. A
UKCA certificate
is also provided where required for the UK market. The product holds a
TÜV Nord certificate with GS (Tested Safety) mark
, confirming it has been independently tested and meets European safety requirements. The harmonised standards EN ISO 12100-1 and EN ISO 12100-2 (Safety of Machinery) have been applied during design and manufacture. The national standard DGUV 100-500 (Operation of Work Equipment) has also been applied.
Safety Information
- Transporting people on the barrow is strictly prohibited — risk of fatal injury.
- Only push on firm, stable ground and pull using the handles.
- Never exceed the rated 400 kg load capacity shown on the type plate.
- Use caution when surfaces or components are wet, dirty, or icy.
- The barrow must only be operated by persons trained and familiar with its use.
- Every operator must read the operating manual before first use.
- Apply only light pressure to the clamping lever (max. 15 kg force) — excessive force can bend the mechanism.
- Crush hazard — beware of moving parts during clamping and unclamping.
- The type plate must remain attached and legible at all times.
- If any defects are found, the barrow must not be used until repairs are completed.
Inspection and Maintenance
The brick & block barrow must be inspected annually by a competent person. All inspections must be documented and any defects rectified immediately. Inspection criteria include tyre pressure (3.5 bar), clamping jaw wear, suspension components, bolts, brackets, and the condition and legibility of the type plate. Maintenance must be carried out by qualified personnel before the unit is put back into service. Repairs may only be carried out by the manufacturer or persons authorised by them.
Dimensions
| Model |
T |
W |
H |
H1 |
B |
B1 |
G |
| 1104.1 |
400 |
570 – 1,050 |
1,635 |
900 |
1,190 |
200 |
75 |
T
= Load capacity (kg) ·
W
= Clamping width (mm) ·
H
= Overall height (mm) ·
H1
= Shield height (mm) ·
B
= Shield width (mm) ·
B1
= Jaw length (mm) ·
G
= Self-weight (kg)
Frequently Asked Questions
Q: What is a brick and block barrow used for?
A brick and block barrow (also called a slab trolley or panel cart) is used to transport heavy flat materials such as paving slabs, concrete blocks, stone panels, kerb stones, and steel-banded paving packs around construction sites, yards, and depots. The Eichinger 1104 allows a single person to safely move loads up to 400 kg without the need for a forklift or crane.
Q: What is the maximum load capacity?
The safe working load (SWL) is 400 kg. This must never be exceeded — the rated capacity is shown on the type plate attached to the unit.
Q: What sizes of slab or block can it handle?
The clamping width adjusts steplessly from 570 mm to 1,050 mm, and the support shield measures 1,190 × 900 mm. This accommodates a wide range of slab thicknesses and panel sizes, from thin paving slabs to thick block packs.
Q: Can it be used on rough ground?
Yes. The barrow is fitted with two large pneumatic tyres which handle rough, uneven ground typical of construction sites.
Q: How does the clamping mechanism work?
The clamping system uses a hand lever with overload protection. You adjust the opening width using the screw adjuster (no tools needed), then rotate the clamping lever 90° to lock the jaws against the load. The maximum actuation force is 15 kg — applying more force risks bending the mechanism.
Q: Is the barrow galvanised?
Yes. The standard finish is hot-dip galvanised steel, which provides excellent corrosion resistance for outdoor construction site use.
Q: What certifications does it have?
The Eichinger 1104 is CE marked in accordance with EU Machinery Directive 2006/42/EC and holds TÜV Nord GS (Tested Safety) certification. A UKCA certificate is also provided where required for the UK market. Harmonised standards EN ISO 12100-1 and EN ISO 12100-2 (Safety of Machinery) have been applied. An EC Declaration of Conformity is supplied with each unit.
Q: How often does it need inspecting?
Annual inspection by a competent person is mandatory. Regular checks should include tyre pressure (3.5 bar), clamping jaw wear, suspension components, bolts, brackets, and type plate condition. All inspections must be documented.
Q: Can it be used by one person?
Yes — the barrow is specifically designed for single-person manual operation. The ergonomic handles and pneumatic tyres make it manageable for one operator, even with a full 400 kg load.
Q: Who manufactures the brick and block barrow?
The brick and block barrow is manufactured by Florian Eichinger GmbH in Mühlhausen, Bavaria, Germany, and distributed by Eichinger Industrie GmbH, Berching, Germany. Eichinger is a specialist manufacturer of forklift attachments, transport systems, lifting equipment, drum handling equipment, and industrial environmental storage solutions.
