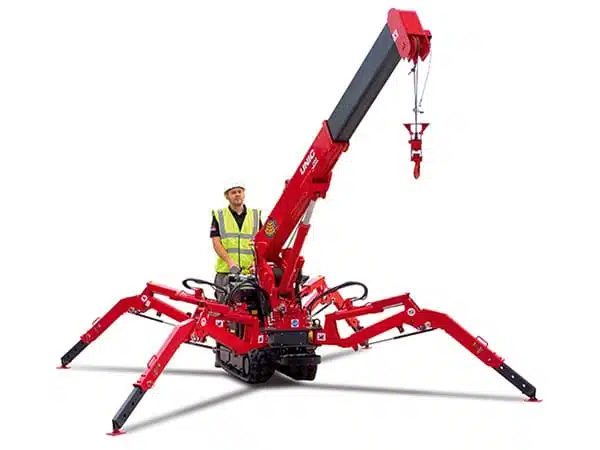

The UNIC URW-094 is the world's smallest and lightest mini spider crane — just 595mm wide and 1000kg, narrow enough to fit through a standard doorframe and into the most confined working areas. Once in position it lifts loads of almost 1 tonne with its 5.49m telescoping boom, reaching a maximum hook height of 5.6m. Petrol powered as standard with optional LPG dual fuel, controlled by radio remote as standard, with the UNIC intelligent voice warning system for safe operation in restricted spaces.
Key Features
- World’s smallest mini crane — at only 595mm wide it passes through a standard 600mm doorframe
- Almost 1 tonne lifting capacity — 995kg at 1.5m radius from a machine weighing just 1000kg
- Multi-position configurable outriggers — with maximum and minimum extension settings to suit confined sites
- Radio remote control as standard — for safe operation away from the load
- Intelligent voice warning system — computer-controlled audible alerts for operator safety
- Intelligent throttle activation — for economy and reduced emissions when idle
Technical Specifications
| Specification |
Detail |
| Crane capacity |
0.995t × 1.5m |
| Max working radius |
5.17m |
| Max lifting height |
5.6m |
| Boom length |
1.73 – 5.49m (4 section) |
| Folded dimensions (L × W × H) |
1870 × 595 × 1290mm |
| Unladen weight |
1000kg |
| Rope length |
13.89m (2 fall) / 28.77m (1 fall) |
| Engine |
Mitsubishi petrol, 5.5kW (LPG dual option) |
| Slewing |
360° continuous, 1.5 rpm |
| Track width |
150mm |
| Travel speed |
0 – 2.2km/h |
Specifications above are taken from the UNIC manufacturer's spec sheet at standard configuration. Variants with electric, LPG or other options may differ slightly — full rated capacity charts supplied with each hire.
UNIC Cranes | LOLER Compliant | Hire from WOLFF Onsite
This UNIC mini spider crane is supplied by WOLFF Onsite for hire across the UK. All cranes are LOLER-tested and supplied with a current Report of Thorough Examination. UNIC has been manufacturing mini spider cranes for over 50 years and is the original spider crane brand — the patented stability protection, intelligent voice warning system and computer-controlled moment limiter set the safety benchmark for compact lifting. Operator training, on-site delivery and full technical support are available — contact our team to discuss your project.
More About This Product
The UNIC URW-094 is the world’s smallest and lightest mini spider crane. At only 595mm wide and weighing 1000kg, it is narrow enough to fit through a standard doorframe and ideal for manoeuvring into the most confined working areas. Once in position, the URW-094 is capable of lifting heavy loads of almost 1 tonne with its 5.49m telescoping boom, allowing a maximum hook height of 5.6m. Petrol powered as standard with optional LPG dual fuel, the URW-094 is controlled by radio remote as standard and features the UNIC intelligent voice warning system for safe operation in restricted spaces.
Suitable Applications
The URW-094 is suited to interior fit-out, glazing installation, plant rooms, listed buildings, shopping centres and any environment where access is restricted by standard doorways. Typical uses include lifting plant, glass panels, machinery, statues, HVAC units and bulky materials into rooms that conventional cranes cannot reach. Its compact footprint makes it the go-to machine for refurbishment, mezzanine installation and high-end residential lifting.
How to Set Up and Operate the URW-094
- Survey the working area, verify ground bearing capacity against the published point loadings and confirm overhead clearances are sufficient for the proposed boom geometry.
- Track the crane into position using the operator's seat or radio remote. Ensure the chassis is on firm, level ground or that load-spreader mats are deployed.
- Deploy the outriggers to the configuration required by the lift plan — set each outrigger angle and extension, ensuring stabiliser pads make full contact with the ground.
- Level the crane using the bubble level / auto-level system and verify all outrigger interlocks are engaged before luffing the boom.
- Configure the rope reeving (1-fall, 2-fall, 4-fall or 5/6-fall as applicable) to match the planned load and required rope length.
- Set any working area, slew or height limits required by the lift plan via the safe load indicator interface.
- Carry out a function test, confirm the moment limiter and voice warning system are operational, then lift to working position and complete the lift in accordance with the lift plan.
- On completion, return the boom to the stow position, retract outriggers and secure the crane for transit or overnight parking.
Warning:
Spider cranes must only be operated by CPCS / NPORS / equivalent-certified operators working to an approved lift plan. Never exceed the rated capacity at the relevant radius shown on the load chart. Power source: Petrol (LPG dual optional).
Safety Information
- The crane must only be operated by competent, trained and certified operators familiar with this specific UNIC model.
- A documented lift plan, prepared by an Appointed Person, is required for every lifting operation under LOLER 1998.
- Ground conditions must be assessed against the manufacturer's point loadings — supplied on request — before each lift.
- Outriggers must be deployed to a configuration that supports the planned load at the planned radius; mixed-extension configurations require a competent rating check.
- Never operate the crane outside the rated load chart, override the safe load indicator, or carry loads with the boom in an unintended configuration.
- Carry out daily pre-use checks of hooks, wire ropes, hydraulics, safety devices and the moment limiter prior to first lift each shift.
Inspection and Maintenance
Spider cranes must be subject to a Thorough Examination by a Competent Person at least every 12 months under LOLER 1998, with additional 6-month examinations required where the crane is used to lift persons. Daily pre-use checks should cover wire rope condition, hook and shackle integrity, hydraulic system, outrigger pads, tracks, safety devices and the safe load indicator. All WOLFF Onsite hire cranes are supplied with a current Report of Thorough Examination and full service history. Defects identified in service must be reported immediately and the crane taken out of use until repaired.
Frequently Asked Questions
Q: Can the URW-094 be operated indoors?
With LPG fuel and adequate ventilation, the URW-094 can be used in semi-enclosed spaces, but for fully indoor or sensitive sites we recommend specifying the electric option where available or the Eco-UNIC battery range.
Q: Do I need a trained operator to use this crane?
Yes. All spider cranes must be operated by a competent, trained and certified operator (typically CPCS or NPORS certified). WOLFF Onsite can supply operated hire or arrange operator training as part of the package — please contact us for details.
Q: Is the URW-094 available for short-term and long-term hire?
Yes. WOLFF Onsite offers daily, weekly, monthly and project-length hire for the full UNIC URW range. Contact us with your project dates, lift plan and site address for a tailored quotation including delivery, off-load and operator if required.
Q: What are the point loadings I need to consider?
Spider crane point loadings vary with boom angle, radius and outrigger configuration, so they are supplied on a per-project basis. Provide your lift plan and proposed setup position and we will supply the relevant point loading data for ground bearing assessment.
