Moving loose stock on a flat trolley means half of it ends up on the floor. Mesh sides contain the load without hiding it, so pickers can see what they are reaching for and nothing works its way over the edge on the way.

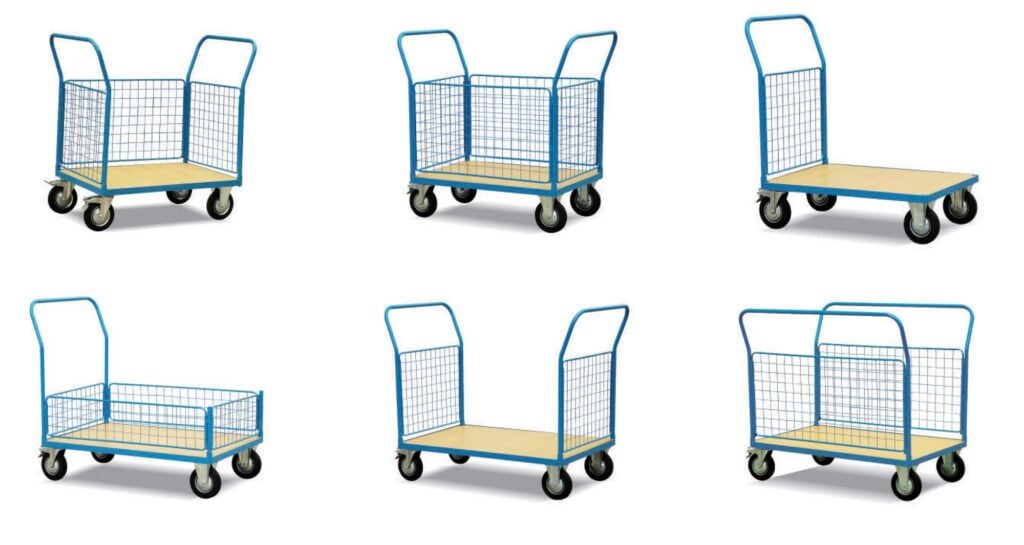

Six configurations cover the range from three full sides for maximum containment to a single end panel where loading access matters more. Welded mesh construction on a heavy-duty steel frame, with a swivel and fixed castor combination for controlled straight-line travel.
Key Features
- Welded mesh sides — contain loose stock while keeping the load visible
- Heavy-duty steel frame — withstands daily stores and production use
- Swivel and fixed castor combination — tracks straight over distance, turns where needed
- Powder-coated finish — resists chipping and corrosion
- Six configurations — from three full sides to a single end panel
Technical Specifications
| Model |
Platform Size (mm) |
Configuration |
Capacity (kg) |
| WRZ50A |
1000 x 700 |
3 Full Sides |
500 |
| WRZ50C |
1000 x 700 |
4 Full Sides |
500 |
| WRZ50D |
1200 x 800 |
4 Full Sides |
500 |
| WRZ50E |
1000 x 700 |
1 Full End |
500 |
| WRZ50F |
1200 x 800 |
1 Full End |
500 |
| WRZ50G |
1000 x 700 |
4 Semi Sides |
500 |
Overall dimensions on the 1000 x 700mm three-sided model: 1200 x 700 x 1170mm.
CE Marked | 12-Month On-Site Warranty
Supplied by Warrior, part of the Handling Equipment UK range. Manufactured to CE / UKCA standards and supplied with a declaration of conformity where applicable. Lift tables are issued with a test certificate to EN 1570 on request.
Warranty
Every Warrior product is supplied with a full 12-month on-site warranty covering parts and labour at no additional cost. Cover starts from the date of delivery and repairs are carried out at your premises rather than under a return-to-base arrangement. A comprehensive UK spare parts stock is held for every model in the range, and servicing, repair and statutory inspection can be arranged through WOLFF Onsite.
Suitable Applications
Order picking, stores and stockrooms, production line component feeding, retail back-of-house replenishment, and internal post and parts distribution.
How to Use
- Choose the configuration that matches your load — more sides for loose stock, fewer for access.
- Load evenly, keeping the weight low and central.
- Push rather than pull for better visibility.
- Take corners slowly — a tall load raises the centre of gravity.
- Unload from the open side or end.
Warning: Do not exceed 500kg or load above the height of the mesh sides.
Safety Information
- Keep the load below the top of the mesh sides.
- Load heaviest items at the bottom and centre.
- Push rather than pull so you can see ahead.
- Check castors are free-running and undamaged before use.
- Do not use as a step or work platform.
Inspection and Maintenance
Inspect the castors, welds and mesh panels monthly. Replace any castor that binds or wobbles — a failed castor is the most common cause of a trolley tipping.
Frequently Asked Questions
Q: Which configuration should I choose?
Three or four full sides for small loose items that could work their way out. A single full end where you need open access from three sides for picking. Four semi sides as a compromise — containment at the bottom, access above.
Q: What is the difference between the two platform sizes?
1000 x 700mm suits narrow aisles and lighter picking rounds; 1200 x 800mm takes a Euro pallet footprint of stock and suits bulk replenishment.
Q: Can it be moved by a pallet truck?
No — these are hand-propelled trolleys on castors. For pallet movement use a pallet truck.
Q: Is the mesh removable?
No, the panels are welded to the frame for strength.
Q: What is covered by the warranty?
A full 12 months from delivery, parts and labour, on your site.
