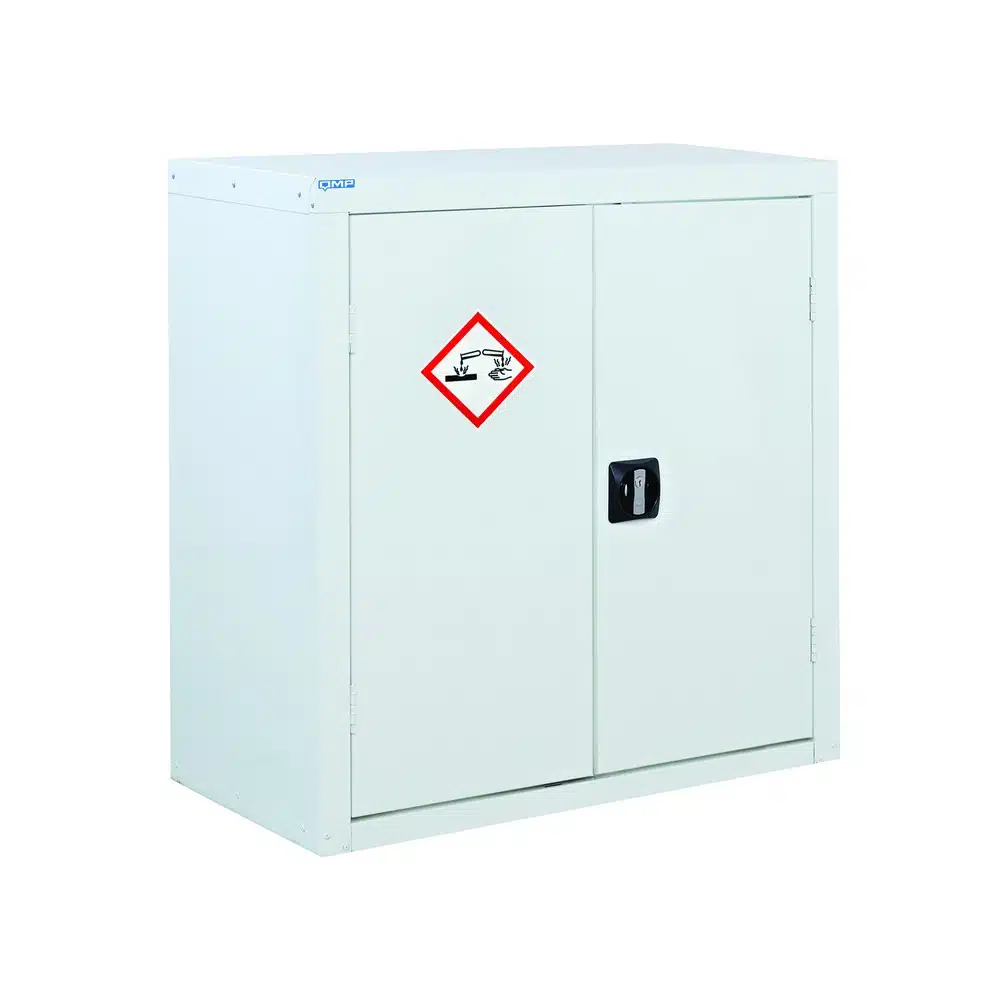

The Acid & Alkali Cupboard (900 x 900 x 460mm) provides safe, segregated storage for acids, alkalis and other caustic materials, helping employers meet their obligations under COSHH 2002. The floor-standing unit has 1 adjustable galvanised spill-retaining shelf (UDL 50kg) behind a no-snag two-point key-locking handle, with a fully welded liquid-tight 14-litre sump containing accidental leaks and spills. Powder-coated in full gloss white with Germ Guard antibacterial technology, classified for Reaction to Fire under EN 13501-1 and manufactured to order in the UK.
Key Features
- Integral liquid-tight sump: a fully welded 1.2mm steel sump in the base retains accidental leaks and spills and encourages correct handling through the use of absorbents
- No-snag two-point locking: an all-metal key-locking handle with a two-point locking mechanism keeps the contents secure with no protruding snag points
- Adjustable spill-retaining shelves: galvanised, height-adjustable shelves with raised lips for superior spill management, rated to a 50kg uniformly distributed load
- Germ Guard antibacterial finish: three-stage pre-treatment and phosphate coating followed by full gloss white epoxy polyester powder (BS 00.E.55) stoved at 180°C, incorporating a germ-guard antibacterial compound
- Reaction to Fire classified: powder-coated steel construction classified to EN 13501-1, manufactured under ISO 9001:2015
- Sealed door aperture: return bends around the door aperture eliminate open gaps for a closer seal
- Hazard labels supplied: corrosive warning and hazard labels are supplied as standard
Technical Specifications
| External Dimensions (H × W × D) |
900 × 900 × 460mm |
| Number of Shelves |
1 |
| Shelf Load (UDL) |
50kg per shelf |
| Integral Sump Capacity |
14 litres |
| Carcass |
0.7mm mild steel, pop-riveted |
| Doors |
0.9mm mild steel, two-point no-snag key-locking handle |
| Sump Material |
1.2mm mild steel, fully welded |
| Finish |
Epoxy polyester powder coat, full gloss white (BS 00.E.55) with Germ Guard |
| Weight |
37.65kg |
| Fire Classification |
Reaction to Fire, EN 13501-1 |
| Quality System |
ISO 9001:2015 |
| Delivery |
Manufactured to order (extended lead time) |
UK Manufactured | COSHH Compliant
This product is manufactured to order in the UK. Hazardous substance cupboards of this type are designed to help employers comply with the Control of Substances Hazardous to Health Regulations 2002 by providing lockable, clearly identifiable, segregated storage for acids, alkalis and other caustic materials. The powder-coated steel construction is classified for Reaction to Fire in accordance with EN 13501-1 and produced under a quality system certified to ISO 9001:2015. Warning and hazard labels are supplied as standard. As a manufactured-to-order item this product is subject to an extended lead time.
More About This Product
The Acid & Alkali Cupboard 900.900.460 (900 x 900 x 460mm) provides safe, segregated storage for acids, alkalis and other caustic materials in the workplace, helping employers meet their obligations under the Control of Substances Hazardous to Health Regulations 2002 (COSHH). This floor-standing unit has 1 adjustable galvanised spill-retaining shelf (UDL 50kg) behind a no-snag two-point key-locking handle. An integral, fully welded liquid-tight sump rated to 14 litres contains accidental leaks and spills. The carcass and door are powder-coated in full gloss white with Germ Guard antibacterial technology and classified for Reaction to Fire under EN 13501-1. Manufactured to order in the UK.
Suitable Applications
This cupboard is suited to laboratories, schools and colleges, hospitals, water treatment works, manufacturing plants, vehicle workshops and cleaning stores. It is suitable anywhere acids, alkalis or other caustic materials need to be stored safely and segregated from incompatible chemicals. The clearly labelled, lockable design supports the control measures expected under a COSHH risk assessment. For applications requiring higher security, our Acid & Alkali Security Cupboard range is fitted with a seven-lever anti-pick safe lock.
How to Use the Acid & Alkali Cupboard
- Site the cupboard on a firm, level floor in a well-ventilated area, away from heat sources, ignition sources and incompatible materials.
- Adjust the galvanised shelves to suit the height of your containers, ensuring each shelf is fully seated on its supports.
- Store substances in their original, correctly labelled containers and never exceed the 50kg uniformly distributed load per shelf.
- Keep acids and alkalis, and any other incompatible substances, segregated in separate cupboards as identified by your COSHH risk assessment.
- Affix the supplied corrosive hazard warning labels so the contents are clearly identifiable.
- Lock the cupboard after every use and restrict key access to authorised, trained personnel only.
Warning:
Always consult the safety data sheet (SDS) for every substance before storage. Never store incompatible chemicals together. Acids and alkalis must be kept in separate cupboards. Do not store quantities or substances beyond the scope of your COSHH risk assessment.
Safety Information
- Carry out a COSHH risk assessment before storing any hazardous substance and follow the control measures it identifies.
- Store acids, alkalis and other incompatible substances in separate, clearly labelled cupboards.
- Keep all substances in their original, correctly labelled containers with the lids secure.
- Ensure the storage area is adequately ventilated and away from heat and ignition sources.
- Provide and use appropriate personal protective equipment (PPE) when handling stored substances.
- Keep the cupboard locked when not in use and limit key access to trained, authorised personnel.
Inspection and Maintenance
Clean the paintwork periodically with warm soapy water or a foaming cleaner. Oil the hinges and lock sparingly as required with a light oil (3-in-1 or similar). Where a sump is fitted, inspect it regularly and clean out any spillage promptly using a suitable absorbent. Check that hazard warning labels remain legible and replace them if damaged. Replacement locks and spare keys are available on request.
Frequently Asked Questions
Q: Does this cupboard meet COSHH requirements?
Hazardous substance cupboards of this type are designed to help employers comply with the Control of Substances Hazardous to Health Regulations 2002 by providing lockable, clearly identifiable, segregated storage. COSHH does not specify a particular size or material, so the cupboard forms part of the wider control measures identified in your own COSHH risk assessment.
Q: Can I store acids and alkalis in the same cupboard?
No. Acids and alkalis are incompatible and should always be stored in separate cupboards, each clearly identified with the supplied hazard warning labels.
Q: What is the difference between this and the Security version?
Q: Is it delivered assembled?
Yes. The unit is manufactured to order and delivered fully assembled with corrosive hazard warning labels supplied. As a made-to-order item it is subject to an extended lead time.
