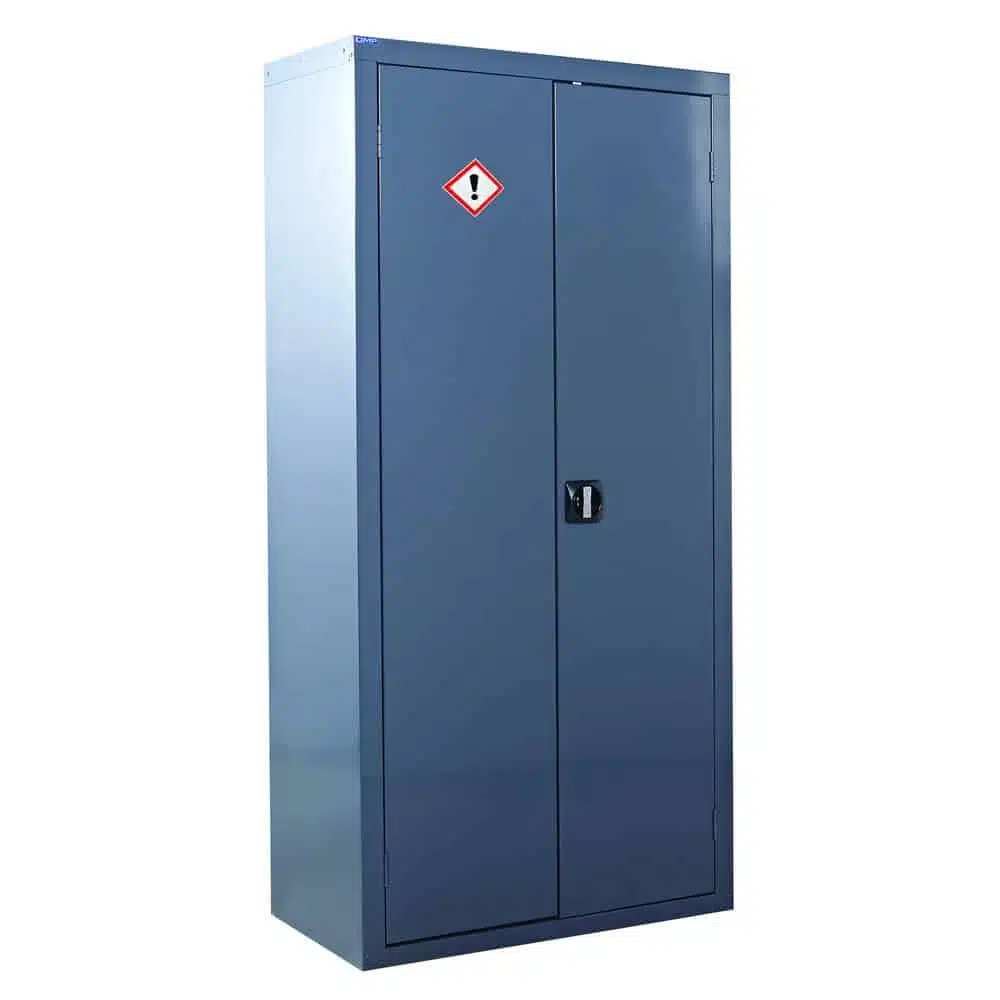

The CoSHH Cupboard (1800 x 900 x 460mm) provides safe, segregated storage for substances hazardous to health, helping employers meet their obligations under COSHH 2002. The floor-standing unit has 3 adjustable galvanised spill-retaining shelves (UDL 50kg) behind a no-snag two-point key-locking handle, with a fully welded liquid-tight 14-litre sump containing accidental leaks and spills. Powder-coated in graphite grey with Germ Guard antibacterial technology, classified for Reaction to Fire under EN 13501-1 and manufactured to order in the UK.
Key Features
- Integral liquid-tight sump: a fully welded steel sump rated to 14 litres retains accidental leaks and spills for COSHH compliance
- No-snag two-point locking: an all-metal key-locking handle with two-point locking and no protruding snag points
- Adjustable spill-retaining shelves: galvanised, height-adjustable shelves with raised lips, rated to a 50kg uniformly distributed load
- Germ Guard antibacterial finish: powder-coated graphite grey with a germ-guard antibacterial compound
- Reaction to Fire classified: classified to EN 13501-1, manufactured under ISO 9001:2015
- Hazard labels supplied: warning and hazard labels supplied as standard
Technical Specifications
| External Dimensions (H × W × D) |
1800 × 900 × 460mm |
| Number of Shelves |
3 |
| Shelf Load (UDL) |
50kg per shelf |
| Integral Sump Capacity |
14 litres |
| Carcass |
0.7mm mild steel, pop-riveted |
| Doors |
0.9mm mild steel, two-point no-snag key-locking handle |
| Colour |
Graphite Grey (RAL 7024) |
| Finish |
Epoxy polyester powder coat with Germ Guard antibacterial technology |
| Weight |
65.75kg |
| Fire Classification |
Reaction to Fire, EN 13501-1 |
| Quality System |
ISO 9001:2015 |
| Delivery |
Manufactured to order (extended lead time) |
UK Manufactured | COSHH Compliant
This product is manufactured to order in the UK. COSHH cupboards of this type are designed to help employers comply with the Control of Substances Hazardous to Health Regulations 2002 by providing lockable, clearly identifiable, segregated storage for substances that are potentially hazardous to health. The powder-coated steel construction is classified for Reaction to Fire in accordance with EN 13501-1 and produced under a quality system certified to ISO 9001:2015. Warning and hazard labels are supplied as standard. As a manufactured-to-order item this product is subject to an extended lead time.
More About This Product
The CoSHH Cupboard 1800 x 900 x 460mm (1800 x 900 x 460mm) provides safe, segregated storage for substances hazardous to health, helping employers meet their obligations under the Control of Substances Hazardous to Health Regulations 2002 (COSHH). This floor-standing unit has 3 adjustable galvanised spill-retaining shelves (UDL 50kg) behind a no-snag two-point key-locking handle. An integral, fully welded liquid-tight sump rated to 14 litres contains accidental leaks and spills. The carcass and door are powder-coated in graphite grey with Germ Guard antibacterial technology and classified for Reaction to Fire under EN 13501-1. Manufactured to order in the UK.
Suitable Applications
This COSHH cupboard is suited to industrial, commercial and general workplaces, laboratories, workshops and stores. It is suitable anywhere substances hazardous to health need to be stored safely and segregated from incompatible materials. The clearly labelled, lockable design supports the control measures expected under a COSHH risk assessment. For applications requiring higher security, our COSHH Security Cupboard range is fitted with a seven-lever anti-pick safe lock.
At this size a mobile version is available where the cabinet needs to move with the work; the same cabinet is made for Acid & Alkali and Hazardous substances. See all COSHH storage for the full range.
How to Use the CoSHH Cupboard
- Site the unit on a firm, level floor in a well-ventilated area, away from heat sources, ignition sources and incompatible materials.
- Adjust the galvanised shelves to suit the height of your containers, ensuring each shelf is fully seated on its supports.
- Store substances in their original, correctly labelled containers and never exceed the 50kg uniformly distributed load per shelf.
- Keep incompatible substances segregated in separate cupboards as identified by your COSHH risk assessment.
- Affix the supplied hazard warning labels so the contents are clearly identifiable.
- Lock the unit after every use and restrict key access to authorised, trained personnel only.
Warning:
Always consult the safety data sheet (SDS) for every substance before storage. Never store incompatible chemicals together. Do not store quantities or substances beyond the scope of your COSHH risk assessment.
Safety Information
- Carry out a COSHH risk assessment before storing any hazardous substance and follow the control measures it identifies.
- Store incompatible substances in separate, clearly labelled cupboards.
- Keep all substances in their original, correctly labelled containers with the lids secure.
- Ensure the storage area is adequately ventilated and away from heat and ignition sources.
- Provide and use appropriate personal protective equipment (PPE) when handling stored substances.
- Keep the unit locked when not in use and limit key access to trained, authorised personnel.
Inspection and Maintenance
Clean the paintwork periodically with warm soapy water or a foaming cleaner. Oil the hinges and lock sparingly as required with a light oil (3-in-1 or similar). Where a sump is fitted, inspect it regularly and clean out any spillage promptly using a suitable absorbent. Check that hazard warning labels remain legible and replace them if damaged. Replacement locks and spare keys are available on request.
Frequently Asked Questions
Q: Does this cupboard meet COSHH requirements?
COSHH cupboards of this type help employers comply with the Control of Substances Hazardous to Health Regulations 2002 by providing lockable, clearly identifiable, segregated storage. It forms part of the control measures identified in your COSHH risk assessment.
Q: What is the difference between this and the Security version?
This standard cupboard uses a no-snag two-point key-locking handle. Our COSHH Security Cupboard range adds a seven-lever anti-pick safe lock and heavier welded construction for higher security.
Q: Is it delivered assembled?
Yes. The unit is manufactured to order and delivered fully assembled with hazard warning labels supplied.
