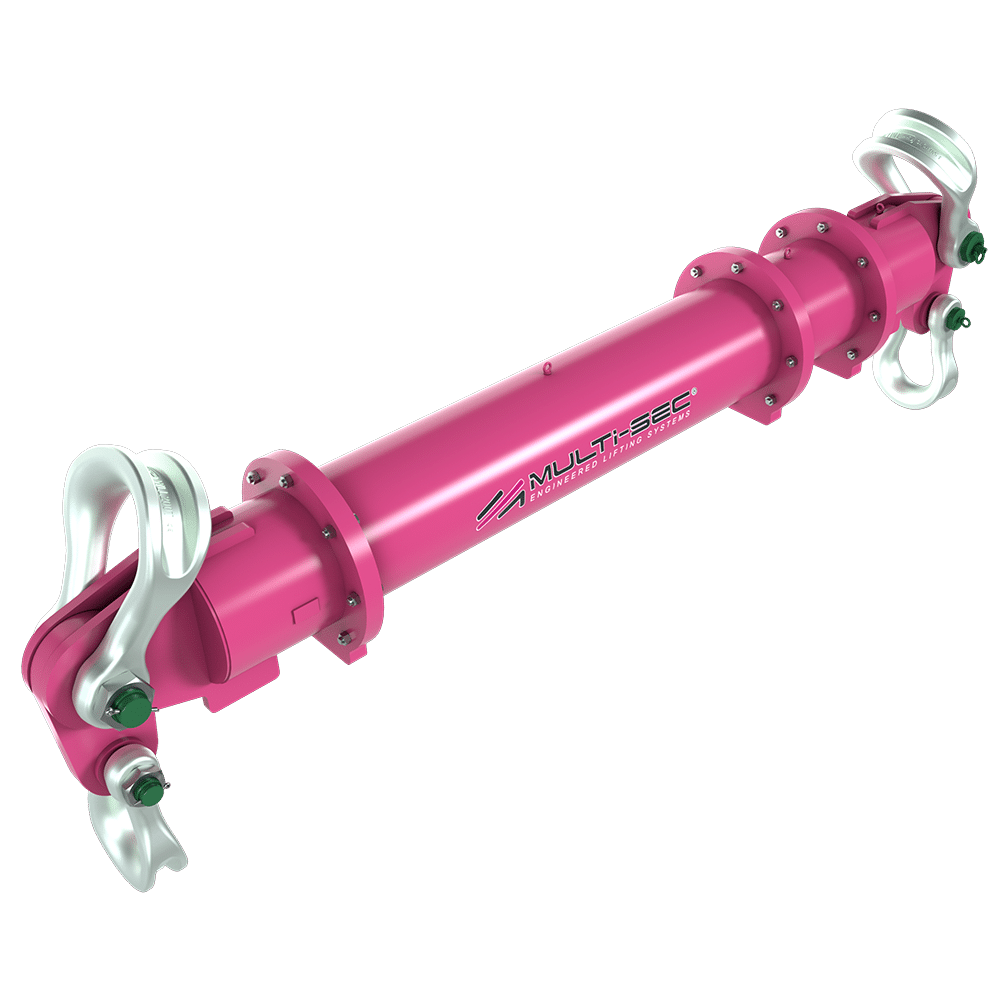

The Multi 250 is the flagship of the Multi-Sec modular range, rated to 250 tonnes at up to 15.5m lifting centres and reaching 22m at reduced capacity. Top and bottom connections use Sling Saver wide body shackles at 200 and 125 tonnes. Despite the capacity it remains a bolted modular system, so it transports and stores as components rather than as a single abnormal load.
How the system works
Each Multi-Sec spreader beam assembly is built from two end units and two drop links, with interchangeable struts bolted in between to set the span. Changing the lifting centres is a matter of adding or removing struts rather than hiring a different beam, so a single system covers every span in its range. Flanged connections are aligned with a podger or drift and fastened with the supplied bolts to a specified torque, and the whole assembly is built at ground level before the lift.
The same struts are compatible with Multi-Sec corner units, so this system can later be converted into a four point lifting frame by adding the corresponding corner units. Nothing already owned becomes redundant.
Capacity and span
| Working load limit |
250 tonnes |
| Maximum span at full WLL |
15.5m lifting centres |
| Maximum span at reduced WLL |
22m lifting centres |
| Sling angle basis |
30° sling to vertical (60° included angle) |
| End unit length |
0.75m |
| Strut lengths available |
0.5m, 0.75m, 1m, 2m, 4m, 6m |
| Top shackle |
200t |
| Bottom shackle |
125t |
Working load limits are quoted at 30° sling to vertical. Load charts for 45° STV are available on request. Longer spans at reduced capacity are available; contact us with your span and load and we will confirm the configuration.
What is included
Each kit is supplied as a complete assembly: two end units, two drop links, the strut set for the selected lifting centres, connection bolts, and two top and two bottom shackles at the rated SWL for the system. Instructions for use, proof test certification and a full component schedule are supplied with every order.
Component weights
| End unit (0.75m) |
303 kg each |
| Drop link |
114 kg each |
| 0.5m strut |
242 kg each |
| 0.75m strut |
254 kg each |
| 1m strut |
298 kg each |
| 2m strut |
410 kg each |
| 4m strut |
634 kg each |
| 6m strut |
859 kg each |
| Corner unit (frame conversion) |
697 kg each |
Modular systems are rated by assembled span, so check the marked capacity for the configuration built. The same struts extend into modular lifting frames for four-point lifts, and slings complete the assembly.
Approvals and certification
Multi-Sec modular systems are DNV Type Approved to DNV-ST-0378 and designed, manufactured and tested in the United Kingdom in accordance with DNV-ST-0378 (Offshore and Platform Lifting Appliances), BS EN 13155:2003+A2:2009, BS EN 1993-1-1:2005 (Eurocode 3), EC Machinery Directive 2006/42/EC, LOLER 1998 and PUWER 1998. Manufacture is carried out under ISO 9001:2015 with accreditation to BS EN 1090-2 Execution Class 3. Every system is 100% proof tested before despatch and supplied with full certification and traceability.
Typical applications
Structural steel and bridge sections, precast and modular building units, plant and machinery installation, petrochemical and process plant maintenance, marine and quayside handling, offshore modules, and onshore and offshore wind components.
