Yale HCH Fabric Chain Bag

Model N04600060 | 25 m Fabric Chain Bag | Compatible Yalelift 360 3 t, 10 t, 20 t | Lightweight Portable Construction

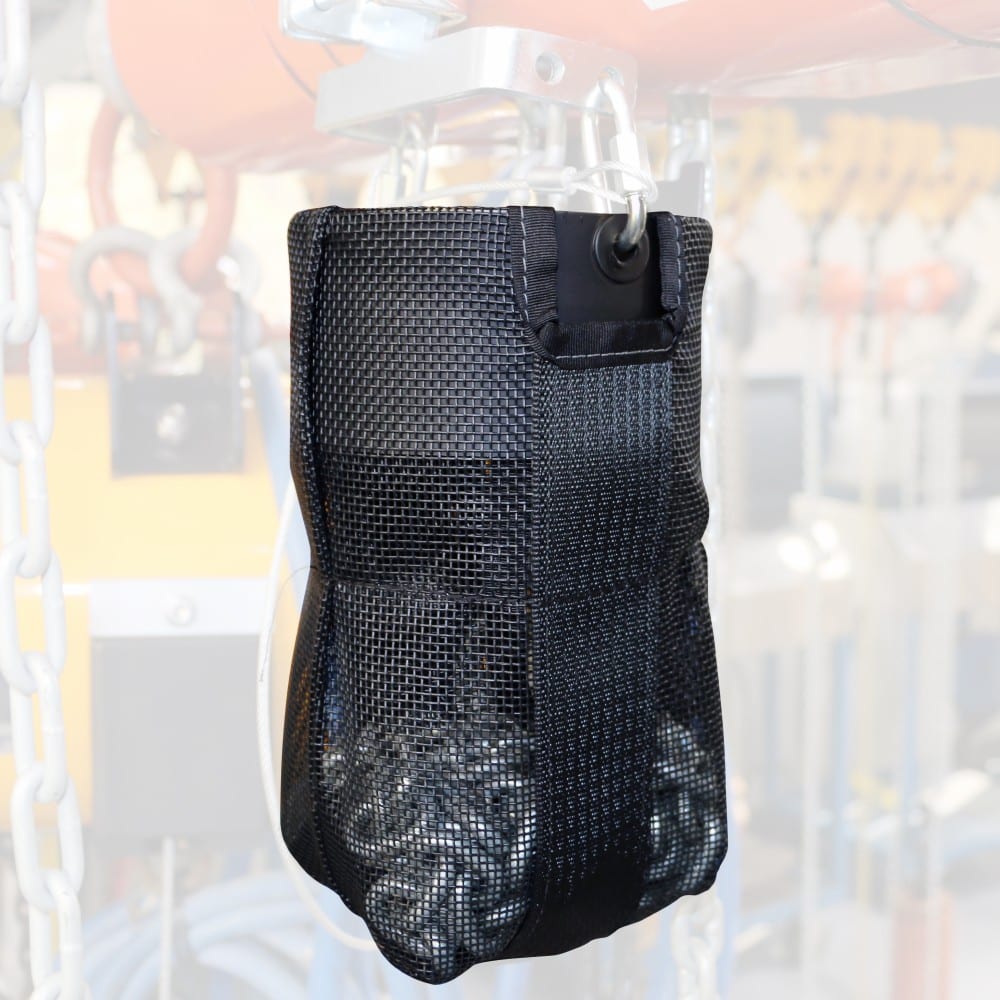

The Yale HCH Fabric Chain Bag is a lightweight, portable alternative to the metal HCH chain container, designed for users who need slack chain containment but prioritise weight, pack-down volume, and ease of transport. The bag is constructed from heavy-duty fabric and attaches to the hoist body via the same fixings as the metal HCH container. The N04600060 is specifically sized for 25 m of load chain, making it suitable for the Yalelift 360 3,000 kg, 10,000 kg, and 20,000 kg models running at significant Height of Lift, where a metal container would be impractically large or heavy. The fabric bag rolls or folds for transport between sites, making it ideal for hire fleet equipment, mobile maintenance teams, contractors who move hoists between jobs, and any application where pack-down volume matters.

Technical Specifications

The fabric chain bag is supplied as a single-size unit (25 m chain capacity) compatible with the Yalelift 360 3,000 kg, 10,000 kg, and 20,000 kg models. For other Yalelift 360 capacities or for VSIII hoists, see the metal HCH chain container products.

Key Features

• Heavy-duty fabric construction: Rolls or folds for transport. Significantly lighter and more compact than a metal container of equivalent capacity.
• 25 m chain capacity: Suitable for Yalelift 360 3 t, 10 t, and 20 t models at extended Height of Lift specifications.
• Quick to fit and remove: Attaches to the hoist body via the same fixings as the metal HCH container. No special installation tools required.
• Portable design: Ideal for hire fleet equipment, mobile teams, contractors, and any application where hoists move between jobs.
• Yalelift 360 compatible: Designed specifically for the Yalelift 360, including the 360° rotating hand chain guide.
• Cost-effective alternative to metal container: Lower cost than equivalent metal HCH container for the same chain capacity.
• Easy storage: Folds flat or rolls up when not in use, taking minimal pack-down volume.

Suitable Applications

The Yale HCH Fabric Chain Bag is the right choice where portability and pack-down volume matter more than permanent installation durability. Typical applications: hire fleet equipment travelling between sites; mobile maintenance teams; field service engineers; contractors moving hoists between jobs; temporary lifting setups for project work; and as a primary chain bag for the heavier Yalelift 360 models (3 t, 10 t, 20 t) where a metal container would be impractically large.

How to Use the Yale HCH Fabric Chain Bag

1. Position the bag under the hoist: The bag hangs below the hoist body, attached at the dedicated fixings.
2. Attach the bag: Following supplied instructions, secure the bag using the supplied fixings.
3. Verify free chain travel: Manually operate the hoist through full range, confirming chain feeds smoothly into the bag.
4. In use: Slack chain self-collects automatically as the hoist lifts.
5. After use: Remove the bag from the hoist (chain inside if appropriate), fold or roll for storage and transport.
6. Periodic inspection: Inspect the fabric at each LOLER examination for tears, abrasion, or fixing damage. Replace if compromised.

Warning: Yale hoists and trolleys are not designed for passenger elevation applications. The fabric bag is rated for 25 m of chain. Do not overload by exceeding the rated chain length, this could cause the bag to tear or fail.

Safety Information

• Verify the bag is compatible with your Yalelift 360 model (3 t, 10 t, or 20 t).
• Inspect the fabric at each LOLER examination for tears, abrasion, chemical attack, or fixing damage.
• Replace the bag if fabric integrity is compromised, fabric failure during operation could allow chain to fall free.
• Do not exceed 25 m chain capacity.
• Do not use as a primary load-bearing component, the bag holds slack chain only.
• Store dry when not in use to prevent mildew or fabric degradation.

Inspection and Maintenance

The fabric chain bag is a lightweight consumable accessory. Inspect at each LOLER examination for fabric tears, abrasion (particularly around the chain inlet), chemical attack, and fixing damage. Replace if compromised. The bag does not require lubrication, cleaning may be done with mild soap and water when dry. WOLFF Onsite supplies replacement bags as a routine consumable.

Optional Accessories

• Yale HCH metal chain container: Permanent installation alternative, available in multiple sizes for the Yalelift 360 range. See HCH Chain Container for Yalelift 360 product.
• Replacement mounting fixings: Available as a kit if lost or damaged.

Downloads

• Yalelift 360 Datasheet (EN, 2024) , Yalelift 360 hoist datasheet showing compatible models (PDF, 3.9 MB)
