~6L/hr*
Diesel consumption

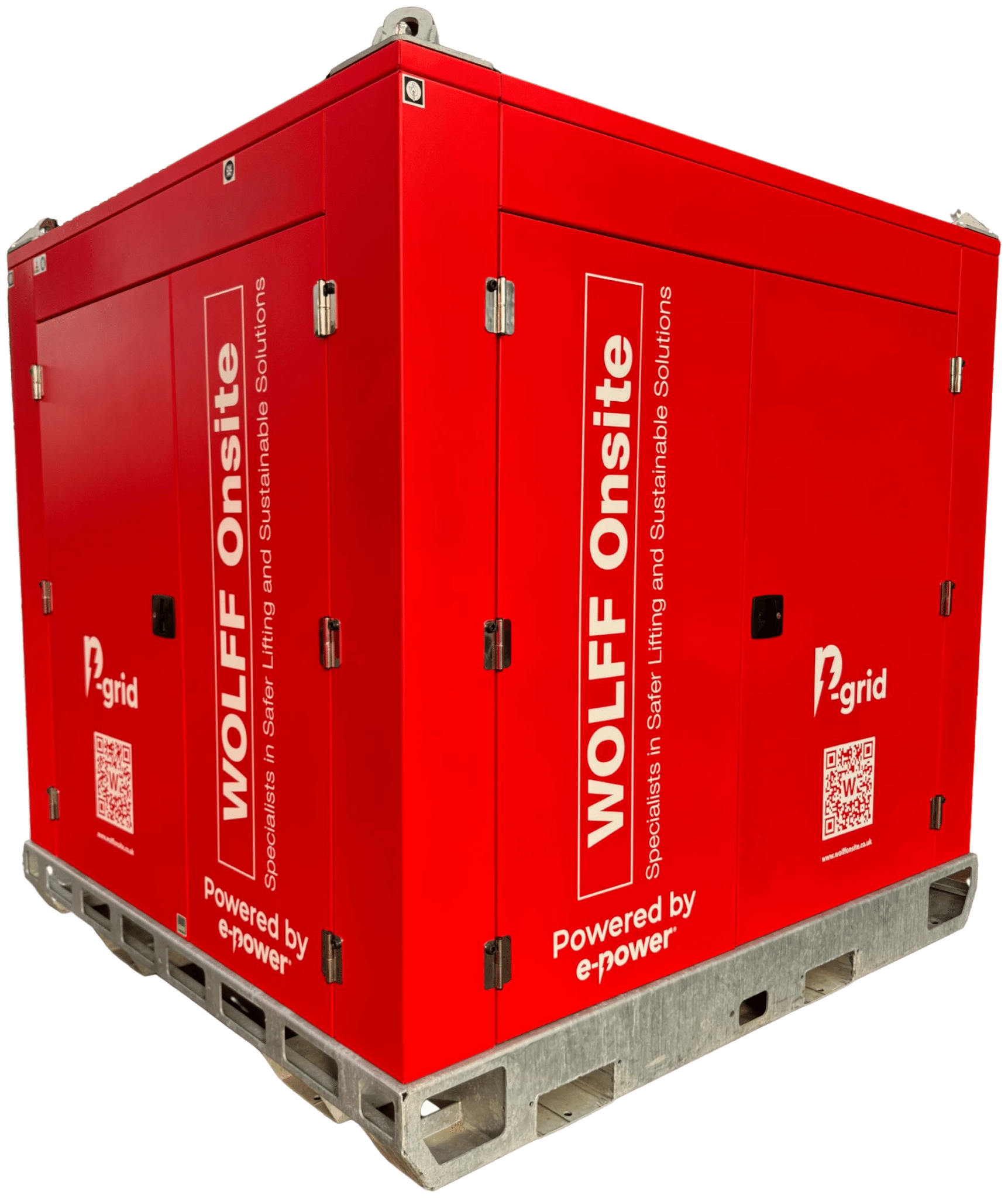

P-GRID Hybrid Power System
Only six litres.An hour.
So what is your diesel engine costing you?
A conventional diesel generator drinks fuel all day, even at part load. The P-GRID runs on roughly 6 litres an hour by letting its battery do the heavy lifting and firing the engine only when it needs to.
Available to hire or buy
*Indicative figure. Actual diesel consumption depends on the site's load profile, duty cycle and conditions, and is confirmed per project.
160kVA
Inverter output
Stage V
Yanmar engine
On / Off
Grid or standalone
A new class of site power
Swap out the old diesel generator.
The P-GRID brings battery-hybrid technology to temporary power. The engine runs only when it is genuinely needed, so you cut fuel, noise and emissions without giving up the dependable output your site relies on. It is the modern replacement for a standalone diesel set.
See what you save. A like-for-like diesel set runs flat out whether the site needs the power or not. Set your runtime below to compare the weekly fuel bill against the P-GRID, and see the difference in pounds, litres and emissions.
10 hrs
424
6 days
17
Based on diesel at £1.99/L, a conventional set burning ~30 L/hr at typical load, and the P-GRID at ~6 L/hr. Real figures vary with load profile and site setup. We will confirm against your project on request.
Estimated weekly fuel saving
£2,866
around 80% less diesel spend every week with the P-GRID
1,440 L
Fuel saved / week
3.86 t
CO₂ avoided / week
The system
A generator that
A generator that
knows when to rest
The P-GRID is an advanced hybrid power system engineered for demanding temporary power environments such as construction sites, infrastructure projects, utilities and remote industrial locations.
By integrating a Stage V diesel generator with a robust lead-carbon battery pack, the P-GRID intelligently manages loads, smooths power peaks and minimises generator runtime. Designed for both on-grid and off-grid operation, it supports peak shaving, continuous operation and microgrid applications.
Its intelligent load management system automatically optimises energy use, reducing fuel consumption, emissions, noise and maintenance. With multiple external connection options and the ability to run in parallel with additional units, the P-GRID scales easily from small sites to multi-crane developments.
Built for durability and long service life, it features a rugged, low-maintenance design and remote monitoring, giving site teams full visibility of performance, usage and system health. The result is a dependable, flexible and more sustainable hybrid generator for modern construction.
Why it works
Built for the site
01
2-in-1 Hybrid Power System
Combines a Stage V diesel generator with a high-capacity lead-carbon AGM battery pack for efficient, low-emission power delivery.
02
Intelligent Load & Peak Management
Automatically balances loads and absorbs power peaks, reducing strain on the generator and improving overall efficiency.
03
Multiple Connection Options
Supports 16A, 32A and 63A connections and integrates easily into temporary site power setups or microgrids.
04
Remote Monitoring & Telemetry
Built-in connectivity provides real-time system status, alerts and usage data, enabling proactive maintenance and improved uptime.
05
Battery Safety & Longevity
Lead-carbon AGM batteries offer long service life, high cycle durability and lower maintenance requirements compared to lithium alternatives.
06
Rugged, Site-Ready Design
Fully engineered for harsh construction and industrial environments with durability, reliability and ease of use at its core.
Specification
The numbers
Inverter
AC in400V 50Hz 63A
AC out (Pnom)160 kVA
Type3-phase, pure sine
TechnologyDC 400V
Inverters8x Hercules CE+T
ControlDynamic Load
Battery
Pack34x 12V
TechnologyAGM Lead-Carbon
Peak discharge2C
Charge0.3C
Temp range-20°C to 50°C
Weight4,980 kg
Genset & Unit
Genset38 kVA
EngineStage V Yanmar
Diesel tank309 L
Length233 cm
Width212.5 cm
Height226.5 cm
| Connection | Max average | Max kWh / day | Battery only (15s) | Battery + genset (15s) |
|---|---|---|---|---|
| Stand alone | 20 kWh | 480 kWh | 180 kVA | 200 kVA |
| 16A external | 30 kWh | 720 kWh | 200 kVA | 220 kVA |
| 32A external | 40 kWh | 960 kWh | 220 kVA | 240 kVA |
| 63A external | 60 kWh | 1440 kWh | 240 kVA | 240 kVA |
Ideal applications
Where it earns its keep
From a single welfare cabin to a multi-crane development, the P-GRID adapts to the load and keeps fuel use low wherever it is put to work.
Construction sites
Run cranes, welfare units and tools from one quiet, fuel-light source of power.
Rental fleets
A standout hire asset with built-in telemetry, low running costs and strong green credentials.
Back-up power
Holds the load seamlessly when mains or a primary supply drops, keeping critical kit running.
Residential areas
Low noise and low emissions make it suited to work close to homes, schools and offices.
Core of a microgrid
Pair it with solar or the grid and let it balance and smooth the load intelligently.
Events
Clean, near-silent power for stages, vendors, hospitality and temporary infrastructure.
Infrastructure & utilities
Dependable output for road, rail and utility works wherever the project takes you.
Remote industrial
Reliable off-grid power for locations where refuelling and mains access are limited.
Get in touch
Cut the diesel.
Cut the diesel.
Keep the power.
The P-GRID is available to hire or buy. Tell us about your site and we will work out the right setup and a fast quote. Backed by Wolffkran, with over 170 years of heritage in heavy-duty equipment.
Request a P-GRID quote
We will get back to you fast with availability and pricing.
