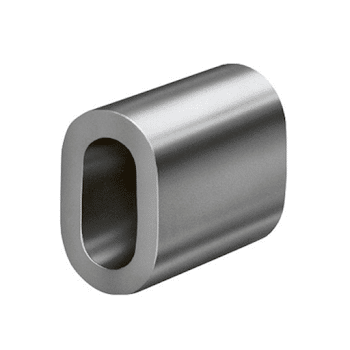

Aluminium Ferrule EN 13411-3 AF

Part no. AF
Price
Price on application
Tell us what you need and we will come back with a quote the same working day.

About this item

  • Aluminium ferrules for wire rope from 1mm to 60mm diameter
  • Conforms to BS EN 13411-3 for ferrule-secured wire rope terminations
  • One ferrule size per rope diameter, self coloured finish

Product description

The AF is an aluminium ferrule of one-piece construction with no seam, pressed onto wire rope to secure the eye of a swaged or Flemish eye sling.

Pressed with the correct dies, the aluminium flows around the strands and locks the tail against the live rope, giving a permanent, neat termination.

GT AF ferrules conform to BS EN 13411-3 (formerly DIN 3093 A). There is one ferrule size for each rope diameter, from 1 mm to 60 mm, and a works certificate is available on request.

Key Features
  • Conforms to BS EN 13411-3 (formerly DIN 3093 A)
  • One-piece aluminium construction with no seam
  • 42 sizes, one per rope diameter, from 1 mm to 60 mm
  • Self coloured finish
  • Works certificate available on request

Specifications

Product Code Rope Dia, fibre core (mm) A (mm) B (mm) C (mm) D (mm) Weight (kg/1000)
AF1 1 1.3 2.6 0.85 5 0.10
AF1.5 1.5 1.8 3.6 1.05 6 0.21
AF2 2 2.2 4.4 0.9 7 0.24
AF2.5 2.5 2.7 5.4 1.05 9 0.50
AF3 3 3.3 6.6 1.25 11 0.84
AF3.5 3.5 3.8 7.6 1.5 13 1.32
AF4 4 4.4 8.8 1.7 14 1.81
AF4.5 4.5 4.9 9.8 1.9 16 2.61
AF5 5 5.5 11.0 2.1 18 3.57
AF6 6 6.6 13.2 2.5 21 5.86
AF6.5 6.5 7.2 14.4 2.7 23 7.55
AF7 7 7.8 15.6 2.9 25 9.53
AF8 8 8.8 17.6 3.3 28 13.70
AF9 9 9.9 19.8 3.7 32 19.80
AF10 10 10.9 21.8 4.1 35 26.40
AF11 11 12.1 24.2 4.5 39 35.80
AF12 12 13.2 26.4 4.9 42 45.80
AF13 13 14.2 28.4 5.4 46 59.70
AF14 14 15.3 30.6 5.8 49 73.50
AF16 16 17.5 35.0 6.7 56 111.00
AF18 18 19.6 39.2 7.6 63 159.00
AF20 20 21.7 43.4 8.4 70 217.00
AF22 22 24.3 48.6 9.2 77 292.00
AF24 24 26.4 52.8 10.0 84 376.00
AF26 26 28.5 57.0 10.9 91 481.00
AF28 28 31.0 62.0 11.7 98 603.00
AF30 30 33.1 66.2 12.5 105 739.00
AF32 32 35.2 70.4 13.4 112 897.00
AF34 34 37.8 75.6 14.2 119 1,080.00
AF36 36 39.8 79.6 15.0 126 1,275.00
AF38 38 41.9 83.8 15.8 133 1,490.00
AF40 40 44.0 88.0 16.6 140 1,734.00
AF42 42 46.2 92.4 17.5 147 2,020.00
AF44 44 48.4 96.8 18.3 154 2,314.00
AF46 46 50.6 101.2 19.2 161 2,557.00
AF48 48 52.8 105.6 20.0 168 3,010.00
AF50 50 55.0 110.0 20.8 175 3,400.00
AF52 52 57.2 114.4 21.6 182 3,813.00
AF54 54 59.4 118.8 22.5 189 4,120.00
AF56 56 61.6 123.2 23.3 196 4,772.00
AF58 58 63.8 127.6 24.2 203 5,200.00
AF60 60 66.0 132.0 25.0 210 5,880.00
Standard BS EN 13411-3 (formerly DIN 3093 A)
Material Aluminium, one-piece (no seam)
Finish Self coloured
Dimensions Before pressing; A bore, B width, C wall, D length
Certificate Works certificate on request
Brand GT
What's Included
  • 1 x aluminium ferrule in the size selected

You may also need: a TBS BS style thimble for the eye.

Using and looking after it

Always read the manufacturer’s instructions before use.

Typical Applications
  • Ferrule-secured eyes on wire rope lifting slings
  • Flemish eye terminations
  • Wire rope assemblies for rigging, balustrades and barriers
  • Sling shop and rope workshop stock

Buying guide

Choosing the Right Size

Order the ferrule that matches the nominal rope diameter exactly. The rope sizes in the table are for fibre core rope; for steel core (IWRC) rope GT specify the next size up, for example AF6.5 for 6 mm IWRC rope.

The table gives bore (A), width (B), wall thickness (C) and length (D) before pressing.

Pressing is workshop work and needs the correct press and dies. Making a ferrule-secured termination is the sling manufacturer's responsibility.

Questions and answers

Q: How do I choose the right size?

A: Match the ferrule to the nominal rope diameter and core type. The table sizes are for fibre core rope; for steel core (IWRC) rope use the next size up, for example AF6.5 for 6 mm IWRC rope.

Q: Can I press ferrules myself?

A: Only with the correct press and dies. Making a ferrule-secured termination is the sling manufacturer's responsibility, so it is normally done in a sling shop.

Q: Grips or a swaged ferrule?

A: A pressed ferrule gives a permanent, compact termination and is the usual choice for lifting slings. Wire rope grips can be fitted on site with hand tools.
