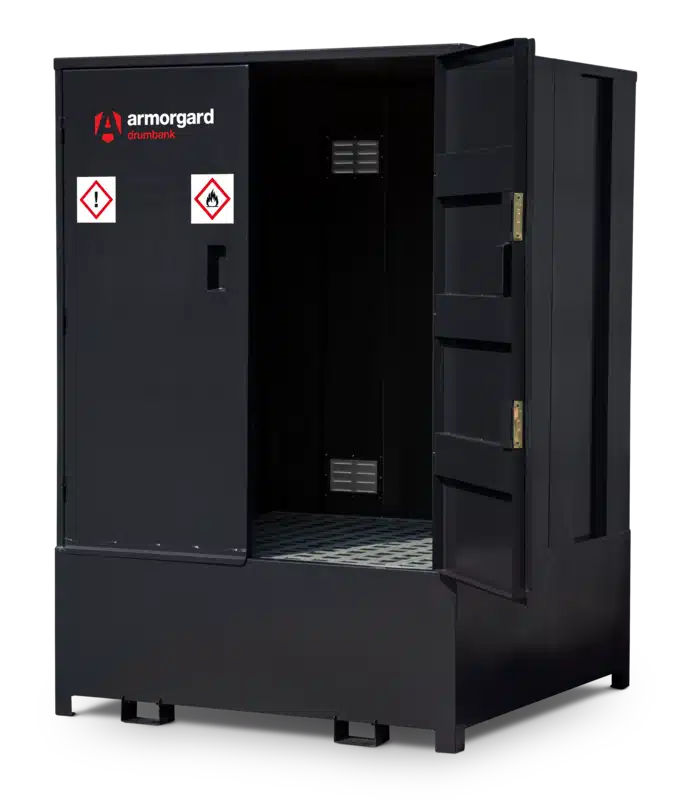

The DrumBank DBIBC1 is part of the Armorgard DrumBank range. Purpose-built storage for substances classified as hazardous under COSHH. The design contains a spill rather than simply enclosing the containers, and keeps the contents locked away from anyone without a key. External dimensions are 1500mm x 1530mm x 2220mm, with an internal capacity of 1430x1420x1605. Unit weight 390kg.
Key Features
- Liquid-Tight Sump - the base forms a welded, liquid-tight sump rated at 1100L, catching leaks and spillages from damaged or badly sealed containers before they reach the floor or drainage.
- Fire Resistance - built to specification for Fire resistant (no time rating published) of fire resistance, delaying involvement of the contents in a fire and buying time to evacuate and respond.
- Shelving - fitted with 0 shelves. Galvanised and lipped so a spill on an upper level is caught rather than running onto whatever is stored below.
- Locking - secured by 2x 5-lever deadlocks, supplied with 3 keys.
- Construction - manufactured from 2mm and 2.5mm steel, with a powder-coated finish.
- Finish and Colour - Black grey: RAL 7021, giving a durable, weather-resistant surface that stays legible and visible on site.
- Dimensions - external footprint of 1500mm x 1530mm x 2220mm, internal 1430x1420x1605. All dimensions are approximate and include protrusions.
- Hazard Signage - supplied with the relevant COSHH warning signage already fitted, so the unit is compliant on delivery.
Technical Specifications
| Specification |
Value |
| Product Code |
DBIBC1 |
| External Dimensions (W x D x H) |
1500mm x 1530mm x 2220mm |
| Internal Dimensions |
1430x1420x1605 |
| Weight |
390kg |
| Sump Capacity |
Sump capacity 1100L |
| Fire Resistance |
Fire resistant (no time rating published) |
| Shelves |
0 shelves |
| Material & Thickness |
2mm and 2.5mm steel |
| Finish |
Powder coated |
| Colour |
Black grey: RAL 7021 |
| Locking |
2x 5-lever deadlocks |
| Keys Supplied |
3 keys |
| Castors |
Not applicable |
| Suitable For |
Outdoor storage of IBC containers |
| Manufacturer |
Armorgard |
COSHH Compliant & Fire resistant (no time rating published) Fire Resistance
Built for the storage of substances classified as hazardous under the Control of Substances Hazardous to Health Regulations, and supplied with the relevant hazard warning signage fitted. All dimensions and weights are approximate and include protrusions.
More About This Product
COSHH places a duty on employers to control substances hazardous to health, and safe storage is part of meeting it. This unit answers that with containment rather than mere enclosure: a welded, liquid-tight sump in the base catches what escapes from a split container or a loose cap, and the unit locks so that access is controlled. Fire resistance buys evacuation and response time before stored flammables become involved in a fire. Armorgard build to heavy-gauge steel throughout, powder coated over an anti-corrosive undercoat, because these units live outdoors on working sites rather than in a store cupboard.
Suitable Applications
Storage of paints, solvents, thinners, adhesives, fuels, oils and cleaning chemicals classified as hazardous under COSHH. Used across construction sites, workshops, plant rooms, depots, laboratories and maintenance facilities. Armorgard specify this unit for outdoor storage of ibc containers.
Drums sit on a sump that catches leaks. For cylinders see the gas cage range, and for smaller secure containers a site security box.
How to Use the DrumBank DBIBC1
- Site the unit on firm, level ground away from ignition sources, heat and means of escape.
- Level the unit so the sump sits flat and spill containment works as intended.
- Confirm the hazard warning signage matches what you intend to store and add substance-specific labelling where needed.
- Load heavier containers low and lighter items high, keeping containers upright with caps secure.
- Keep the sump clear of stored items so it can take a spill.
- Lock the unit after every access and control key issue to authorised persons.
- Record the contents on your COSHH inventory and keep the safety data sheets available.
Warning:
Do not store incompatible substances together - consult the safety data sheet for each product. Never store gas cylinders in this unit. Keep the unit away from ignition sources and means of escape. Fire resistance is built to specification and does not replace a fire risk assessment or suitable extinguishing provision.
Safety Information
- Read the safety data sheet for every substance before storing it.
- Do not store incompatible substances together - keep oxidisers away from flammables and acids away from alkalis.
- Do not store gas cylinders in this unit.
- Site away from ignition sources, heat and means of escape.
- Keep the sump clear so it can contain a spill, and clean spills promptly.
- Keep the unit locked when unattended.
- Dispose of contaminated absorbent and waste through a licensed route.
Inspection and Maintenance
Inspect regularly for corrosion, impact damage and correct operation of locks and hinges. Check the sump is dry and clear at each inspection and clean any spill promptly, as prolonged contact with solvents can attack the coating. The unit is built from 2mm and 2.5mm steel and finished in powder coated, which stands up to site conditions but benefits from being kept clean. Confirm the hazard signage remains legible and correct for the current contents, and keep your COSHH inventory up to date as they change. Replacement keys and spare parts are available from Armorgard against the unit's serial number.
Frequently Asked Questions
Q: What is the sump for, and how big is it?
The base of the unit is formed into a welded, liquid-tight sump with a capacity of 1100L. It catches leaks and spillages from containers stored above so hazardous liquids cannot reach the floor or enter drainage. Keep it clear of stored items so it can do its job.
Q: What does the fire resistance rating mean?
The unit is built to specification for Fire resistant (no time rating published) of fire resistance. That is intended to delay the contents becoming involved in a fire and give time to evacuate and respond. It is one control measure among several and does not replace a fire risk assessment.
Q: Where can this unit be sited?
Armorgard specify it for outdoor storage of ibc containers. Siting it outside those conditions may affect both its performance and its warranty.
Q: How many keys are supplied, and can I get more?
The unit comes with 3 keys. Replacement and additional keys are available from Armorgard against the unit's serial number, so keep a record of it.
Q: Is this available in other sizes?
Yes - Armorgard list no feature icons (as displayed): 2x 5-lever deadlocks ; coshh compliant ; fire resistant ; forklift skids ; safety signage ; sump capacity 1100l features & specs (as published): specialised storage, designed specifically for securely housing intermediate bulk containers (ibcs) and drums ; compliant with relevant regulations governing the storage of hazardous materials and liquids, ensuring adherence to safety standards in the workplace ; integrated forklift pockets facilitate easy transportation and manoeuvrability around the site, enhancing efficiency and convenience ; built with a robust construction to withstand the rigours of industrial environments, ensuring longevity and protection against theft and environmental damage ; equipped with safety signage for clear identification of stored materials ; sump capacity of 1100 litres in this range. If the capacity or footprint here does not suit, contact us and we will size it against what you need to store.
