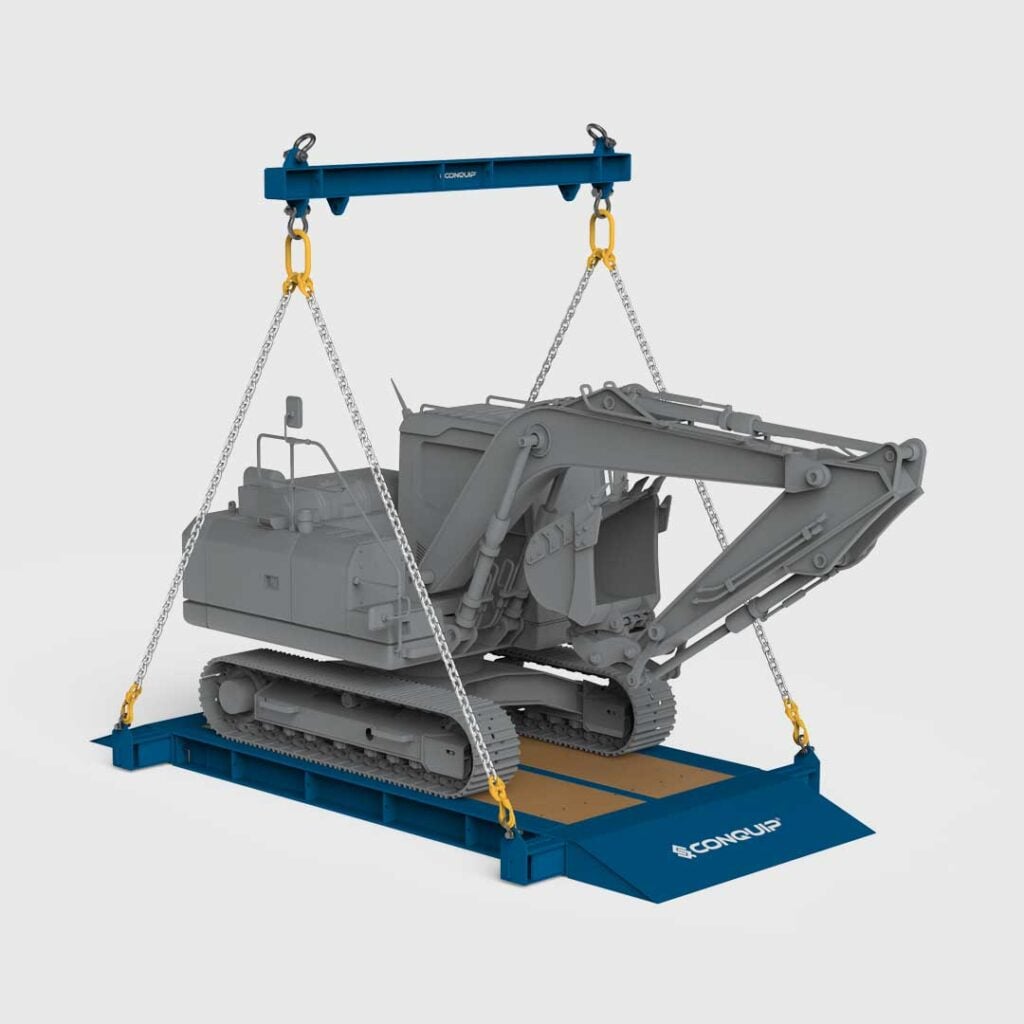

The Conquip Excavator Lifting Platform is a heavy-duty steel platform with timber load bed, supplied with a matched spreader beam, for crane-lifting excavators safely into tunnels, shafts and basement excavations where wide-load transport is impractical. Telescopic I-beams let the platform travel to site at standard width and extend on arrival to suit the load, with multiple lifting eyes on the spreader beam permitting chain adjustment to match. Tie-down points secure the excavator before lifting, and ramped access on both sides lets it drive on and off under its own power.
Key Features
- 30-tonne capacity covers most tracked excavators used in confined-space groundworks
- Telescopic I-beams retract for road transport without a wide-load permit
- Spreader beam included with multiple lifting eyes for chain adjustment to match load
- Ramped access both sides allows the excavator to drive on and off under its own power
- Tie-down points around the platform allow the excavator to be secured with load binders before lifting
- Engineering and lift-planning support available from Conquip's pre-construction team
- Repeated-use construction designed for projects requiring multiple level changes
Technical Specifications
| Maximum Excavator Weight |
30 tonnes |
| Platform Construction |
Welded steel frame with timber load bed |
| Beam Configuration |
Telescopic I-beams adjustable to load width |
| Spreader Beam |
Supplied as standard with multiple lifting eyes for chain adjustment |
| Access |
Ramped both sides for drive-on / drive-off |
| Securing |
Tie-down points around the platform plus D-rings on the timber bed |
| Standards |
BS EN 13155 |
| Compliance |
LOLER 1998, PUWER 1998 |
Using an excavator to lift brings requirements around certified lifting points. See grabs and slings.
LOLER 1998 compliant | Designed for excavators up to 30 tonnes | Manufactured in the UK
Supplied complete with matched spreader beam and chain assembly. Conquip's pre-construction engineering team can support lift planning for site-specific applications.
More About This Product
The Conquip Excavator Lifting Platform is a heavy-duty steel platform with a timber load bed, supplied with a matched spreader beam, designed for crane-lifting excavators safely into tunnels, shafts and basement excavations where wide-load transport is impractical. Telescopic I-beams allow the platform to be transported to site at standard width and extended on arrival to suit the load. Multiple lifting eyes on the spreader beam base permit chain adjustment to match load width. Tie-down points around the platform secure the excavator before lifting and ramped access on both sides allows the excavator to drive on and off under its own power.
Suitable Applications
The Excavator Lifting Platform is the standard solution for tunnelling, basement excavations, shaft sinking, infrastructure projects with deep working levels, and any site where an excavator needs to be lifted in and out of a confined working area. Common applications include central London basements, station box excavations, deep drainage works and underground car parks. For lift planning support, Conquip's pre-construction engineering team can provide site-specific advice including load calculations and crane selection guidance.
