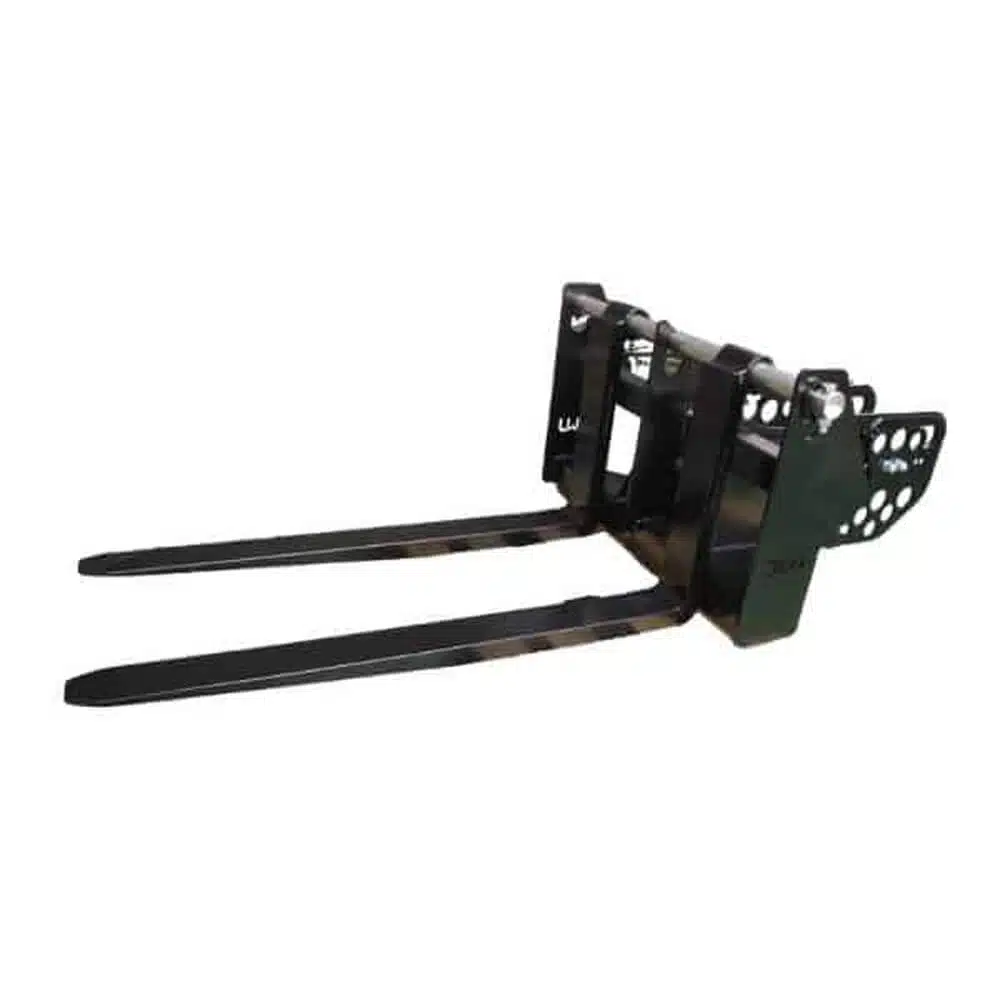

The Invicta Excavator Pallet Fork Frame (Model IEFF) enables an excavator to lift palletised material — especially useful where space or manoeuvrability is restricted on site. Available in two sizes to suit excavators from 5 to 22 tonnes, the see-through design gives clear operator visibility of the pallet and load, while the floating fork design enables easier placement and lifting on uneven surfaces. Manufactured in Leeds by Invicta Forks & Attachments.
Key Features
- Quick and easy attachment — adjustable pin centres and pin sizes to suit any excavator quick hitch
- See-through frame design — clear operator visibility of the pallet and load
- Floating forks — easier placement and lifting on uneven surfaces
- Foldable fork tines — compact storage when not in use
- Two size ranges — covers excavators from 5 to 22 tonnes
Technical Specifications
| Model |
Excavator Range |
L×W×H (mm) |
Weight (kg) |
SWL (kg) |
| IEFF-5-9T |
5–9 Tonne |
2150 × 990 × 610 |
241 |
1000 |
| IEFF-13-22T |
13–22 Tonne |
2410 × 990 × 610 |
375 |
2500 |
Pin sizes: 5-9T models available with 45, 50 or 60mm pins. 13-22T models available with 65 or 80mm pins.
UK Manufactured | LOLER Compliant
This product is designed and manufactured in the UK by Invicta Forks & Attachments, the UK's largest mechanical forklift attachment manufacturer, based in Leeds. Where applicable, this product is supplied with a test certificate and EC Declaration of Conformity. LOLER 1998 thorough examinations are required every 6 months by a competent person after initial certification.
More About This Product
The Invicta Excavator Pallet Fork Frame (Model IEFF) enables an excavator to lift palletised material, especially useful where space or manoeuvrability is restricted on site. Available in two sizes to suit excavators from 5 to 22 tonnes, the see-through design allows clear operator visibility of the pallet and load. The floating fork design enables easier placement and lifting on uneven surfaces. Manufactured in Leeds by Invicta Forks & Attachments.
Using an excavator to lift brings requirements around certified lifting points. See grabs and slings.
Inspection and Maintenance
Inspect regularly with particular attention to all weld points, lifting eyes, pivot points and any signs of deformation or corrosion. Certified for six months from manufacture — thorough examination under LOLER 1998 required every 6 months.
