ELD Grade 8 Clevis Self Locking Hook – G8CSLHL
1 / 4

ELD Grade 8 Clevis Self Locking Hook G8CSLHL

Part no. G8CSLHL8
£40.30£33.58Inc VATEx VAT
£33.58 ex VAT£40.30 inc VAT ·
Size: 7/8mm

About this item

  • Locks automatically under load: cannot be knocked open
  • Grade 8 alloy steel to BS EN 1677-3
  • ELD range, red finish, 5 sizes
  • ✕ Rated -40 °C to +200 °C: check before hot work

Product description

The ELD G8CSLHL is a Grade 8 clevis self locking hook that pins straight onto the chain end link. Under load it locks positively and can't be opened; the release lever frees it once the load is down.

Four orderable sizes cover 7/8 mm to 16 mm chain. Made to BS EN 1677-3, red painted and rated -40 °C to +400 °C, with WLL reductions at higher temperatures. It is a GT product; the eye version joins through a coupling link instead.

Key Features
  • Clevis pins direct to the chain end link
  • Locks positively under load
  • Opens with the release lever once the load is down
  • BS EN 1677-3, Grade 8 alloy steel
  • Four sizes, 7/8 mm to 16 mm chain

Specifications

Choose a size above to see its specifications.

Compare all 4 sizes
Code Part no. Chain (mm) WLL C D E F G H L M
G8CSLHL8 103-7/8 7/8 2 t 20 33 25 10 28 45 122 165
G8CSLHL10 103-10 10 3.15 t 27 44 35 12.5 35 58 151 207
G8CSLHL13 103-13 13 5.3 t 31 54.5 40 16 38 71 184 255
G8CSLHL16 103-16 16 8 t 40 67 52 20 50 84 212 300

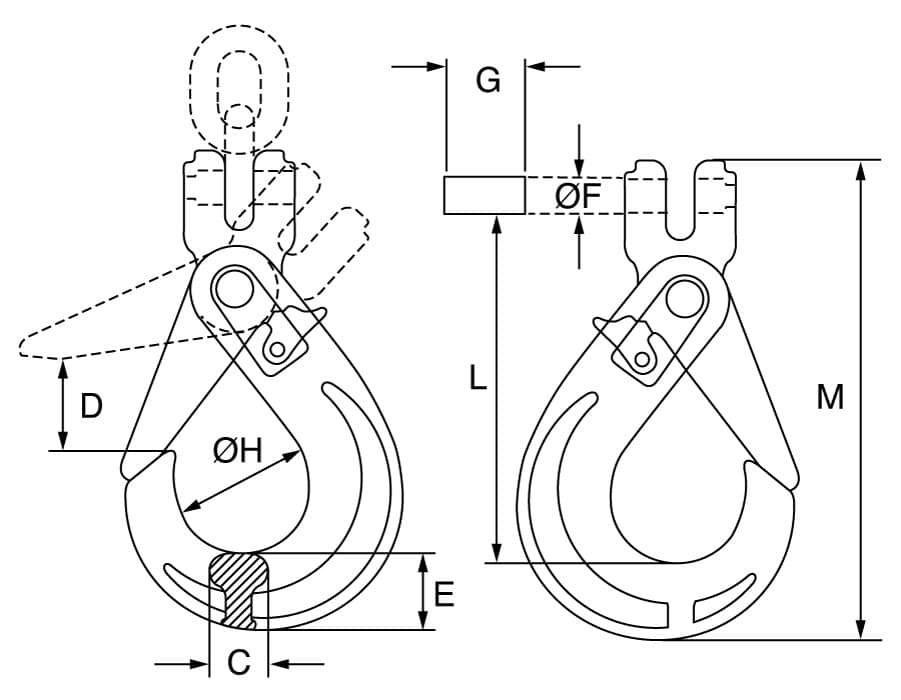

Dimensions in mm; letters refer to ELD's dimension drawing.

Standard BS EN 1677-3
Material Grade 8 alloy steel
Finish Red painted
Temperature range -40 °C to +400 °C (reductions in WLL apply)
Marking Grade, manufacturer ID, size, product ID and traceability code
Certification Supplied with a certificate
Before you use it
  • Check hooks for a bent or opened throat, cracks and wear, and make sure the safety latch closes fully.
  • Check connectors and links for distortion, cracks, nicks and worn load pins.
  • Never weld, heat, grind or bend alloy components. Heat changes the steel and reduces its strength.
  • Inspection: under LOLER, lifting accessories need a thorough examination by a competent person at least every 6 months.

Buying guide

Choosing the right chain component
  • Match the grade. Alloy lifting chain and fittings come in grades such as 8 (G80), 10 (G100) and 12 (G120). Every part of a sling must be rated for the chain it is used with. The WLL of the finished sling is set by its lowest-rated part.
  • Match the size code. Components are made to suit a chain size (for example 8 mm or 10 mm). Use the component made for your chain size, never a larger or smaller one.
  • Stay within one system. Connecting links, couplers and shorteners are designed to work with their maker's own chain and fittings. Don't mix brands in one sling unless the makers confirm they are compatible.
  • Check the marking. Each component carries its grade, size and traceability marks. Never use a part you can't identify.

Questions and answers

Q: Why a clevis hook?

A: It pins straight to the chain, so no coupling link is needed and the leg stays shorter. For a hook you can turn before the lift, see the ELD swivel version.

Q: What WLL is it?

A: From 2 t on 7/8 mm chain up to 8 t on 16 mm; see the table for each size.

Q: How often does it need examining?

A: Under LOLER 1998, lifting accessories need a thorough examination by a competent person at least every 6 months.
