Green Pin® Tapered Pin ROV Release & Retrieve Shackle with D Handle – GPROV5361D
1 / 4

Green Pin Tapered Pin ROV Release & Retrieve Shackle with D Handle GPROV5361D

Part no. GPROV5361D6.5
£343.45£286.21Inc VATEx VAT
£286.21 ex VAT£343.45 inc VAT ·
Size: 6.5t

About this item

  • Tapered pin ROV release and retrieve shackle with D handle, WLL 6.5t to 55t
  • Grade 8 polar quality alloy steel body and pin, white body with green painted pin
  • MBL 5 times the WLL; temperature range -60ºC to +200ºC; supplied without wires

Product description

The Green Pin Tapered Pin ROV Release & Retrieve Shackle lets an ROV arm both release a load on the seabed and reconnect to retrieve it, using a tapered pin worked through a D handle.

It comes in 7 sizes from 6.5 t to 55 t, in Grade 8 polar-quality alloy steel with a white body and green pin, rated -60 °C to +200 °C.

Key Features
  • Release and retrieve by ROV
  • Tapered Pin with D handle for the ROV gripper
  • 7 sizes, 6.5 t to 55 t WLL
  • Grade 8 polar quality alloy, MBL 5 x WLL
  • Rated -60 °C to +200 °C; supplied without wires

Specifications

Choose a size above to see its specifications.

Compare all 7 sizes

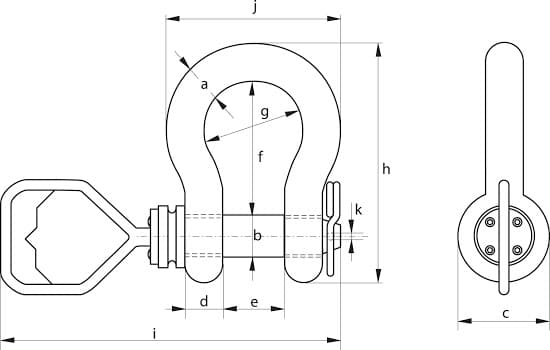

Code WLL A (mm) B (mm) C (mm) D (mm) E (mm) H (mm) Weight (kg)
GPROV5361D6.5 6.5 t 22 25 52 22 36 144 3.79
GPROV5361D9.5 9.5 t 28 32 67 28 47 185 5.38
GPROV5361D12 12 t 32 35 72 32 51 201 6.5
GPROV5361D17 17 t 38 42 88 38 60 249 8.19
GPROV5361D25 25 t 45 50 103 45 74 300 14.2
GPROV5361D35 35 t 50 57 111 50 83 331 19.9
GPROV5361D55 55 t 65 70 145 65 105 433 39.6
Material Grade 8 polar quality alloy steel body and pin
Finish White painted body, green painted pin
Minimum breaking load 5 x WLL
Temperature range -60 °C to +200 °C
Operation ROV release and retrieve, D handle
Wires Not supplied
Before you use it
  • Check it. Markings must be legible, and the body and pin must be the same brand, type and size. Look for damaged threads, distortion, wear, nicks, gouges, cracks and corrosion. Never use a shackle with a bent pin, tight threads or misaligned pin holes.
  • Fit the pin properly. Screw a collar pin in hand-tight, then tighten it with a wrench so the collar sits fully on the eye. Never use a safety bolt shackle without its cotter pin.
  • Use only the matching pin. Never replace it with any other pin or bolt.
  • Never modify it. No welding, heating, machining or bending, and no washers welded inside the eyes to narrow the jaw.
  • Keep it away from acids and other harmful chemicals.
  • Hazardous work. The WLL assumes normal conditions. For offshore work, lifting people, or molten or corrosive loads, a competent person must reduce it.
  • Inspect it at least every 6 months, more often in severe conditions.
What's Included
  • 1 x Green Pin Tapered Pin ROV shackle with D handle (supplied without wires)

Documents (1)

View on this page or download.

PDFDatasheet
PDF document

Using and looking after it

Always read the manufacturer’s instructions before use. See the documents

Typical Applications
  • Subsea installation where loads may need recovering
  • ROV release and retrieve operations
  • Offshore construction and decommissioning

Buying guide

Choosing the right Green Pin shackle

Pin type. A screw collar pin is quick to fit and remove, for lifts where the shackle is not left in place. Choose a safety bolt shackle (bolt, nut and cotter pin) where the shackle stays in place for a long time, where the load can move over the pin and turn it, or where you need maximum pin security.

Two slings on one hook. Use a bow shackle, with the slings on the bow and the pin in the hook. Put no more than two sling legs on the bow, with no more than 120° between them. Loaded evenly like this, the full WLL can be used.

Side loading. Green Pin shackles are not designed for side loads. If one cannot be avoided, the WLL must be reduced using Van Beest's side-load chart.

The ROV shackles P-5363 and P-5367 are for in-line use only, and sling shackles have their own reduction curves.

Heat. Above 200 °C the WLL must be reduced:

Temperature Usable WLL
Up to 200 °C 100%
200 to 300 °C 90%
300 to 400 °C 75%
Above 400 °C Not allowed
Design & Construction

Most ROV shackles only release. This tapered pin design also lets the ROV re-engage the pin, so the same shackle can be used to recover the load.

The D handle is the part the ROV gripper holds; the fishtail handle version suits a different gripper.

The tapered end of the pin makes underwater assembly easier, the handle is turned by a hydraulically operated ROV arm, and grooves in the pin head let it be tethered to the body with wire rope. Green Pin describes the thread as completely chambered to protect the sling.

Green Pin's user manual gives the step-by-step procedure.

It is supplied without wires so the wiring plan can be designed for the job. The white body and green pin are easy to see in poor subsea light.

Choosing the Right Size

Choose by WLL, and choose the handle to suit your ROV's gripper: this is the D handle version.

Questions and answers

Q: What is a release and retrieve shackle?

A: A subsea shackle the ROV can open to release a load and close again to recover it.

Q: Is it supplied with wires?

A: No, so you can design the wiring plan for your ROV operation.

Q: How should it be looked after?

A: Rinse in fresh water, dry and lightly oil before storage. Inspect at least every six months.

Have a question about this product?Ask a question
