Fork Mounted Drum Tilter
1 / 10

Fork Mounted Drum Tilter

Part no. IDTL-1.0
£1,585.16£1,320.97Inc VATEx VAT
£1,320.97 ex VAT£1,585.16 inc VAT ·
Control Type: Crank Handle

About this item

  • Controlled drum discharge in confined spaces
  • Crank handle or looped chain control
  • 360kg SWL; UK manufactured by Invicta

Product description

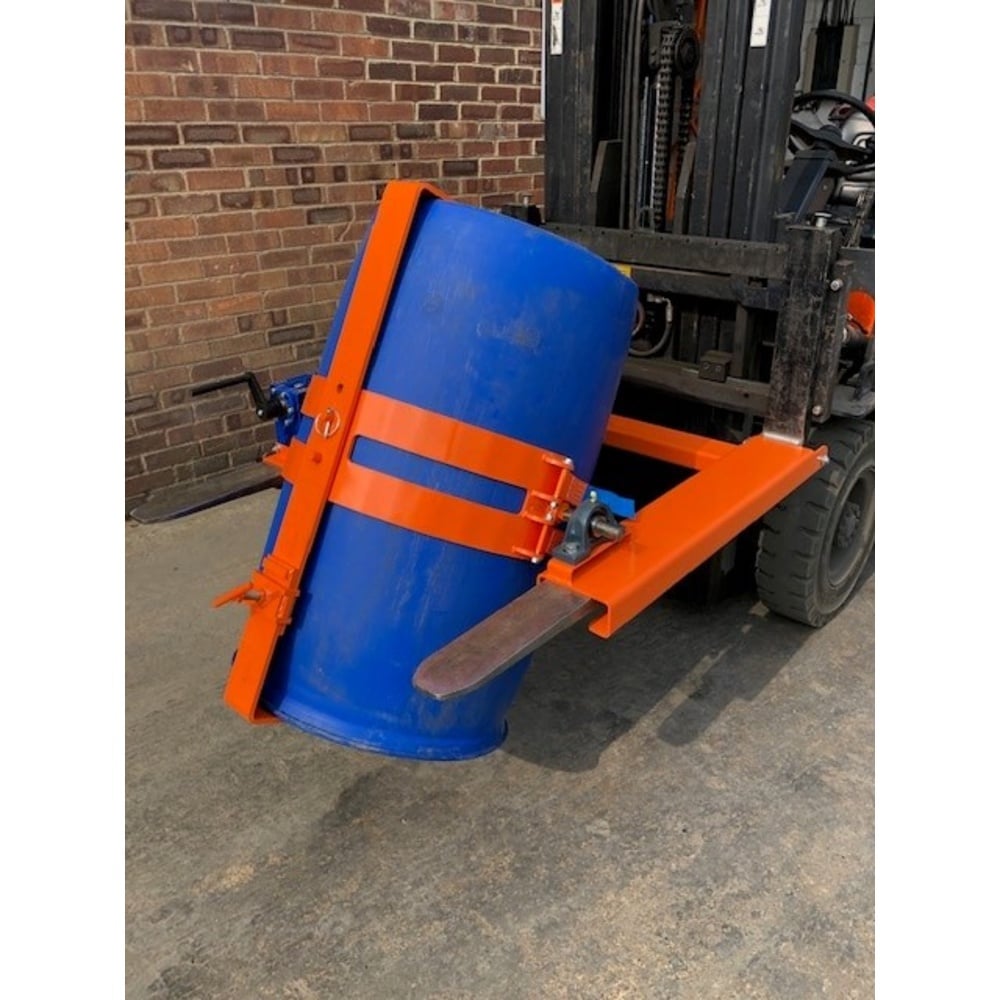

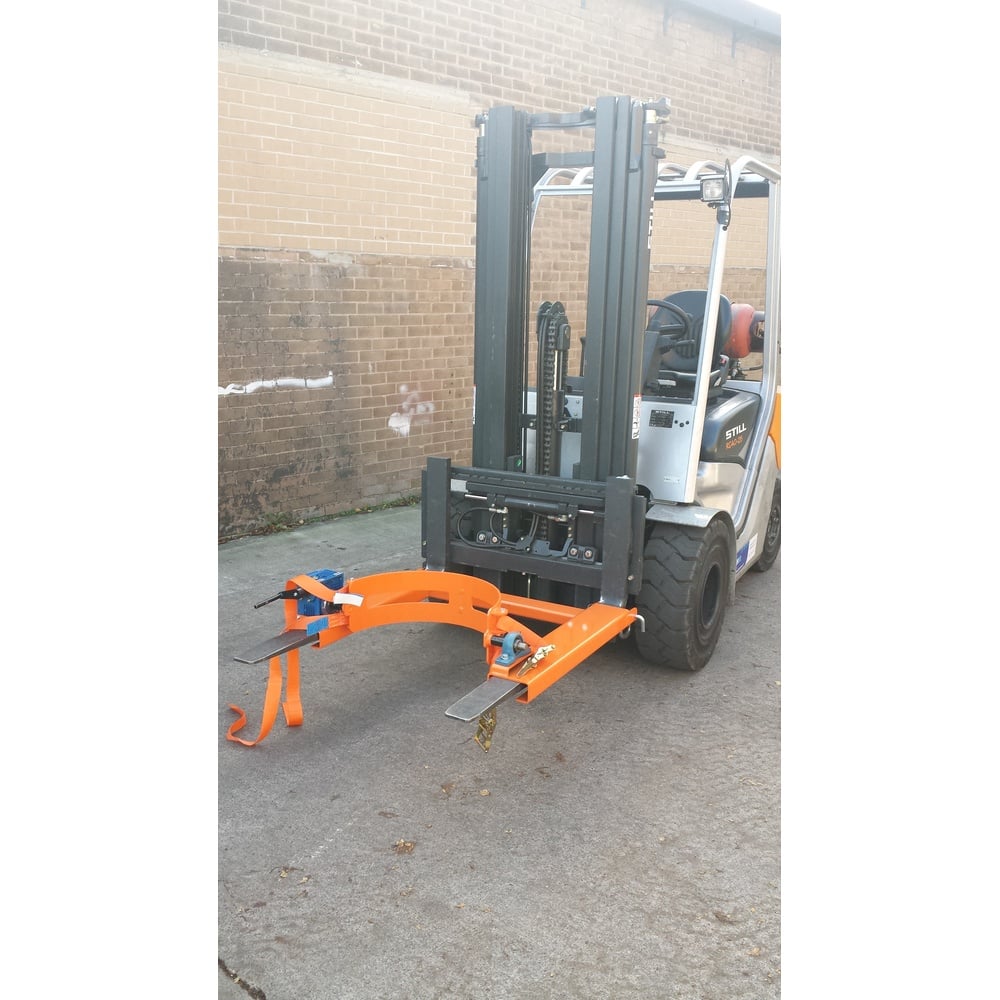

The Invicta IDTL Fork Mounted Drum Tilter slides onto forklift tines and tips steel and plastic drums for a controlled pour in tight spaces, one of the fork-mounted options in our drum grabs range.

It is rated at 360 kg and a plastic drum adaptor is available as an option.

Choose a crank handle for pouring at low level, or a looped chain to tip the drum when it is raised on the mast. The gearbox locks the drum at any angle. Made in Leeds by Invicta.

Key Features
  • Gearbox holds the drum at any angle mid-pour
  • Crank handle for low pours, looped chain for raised pours

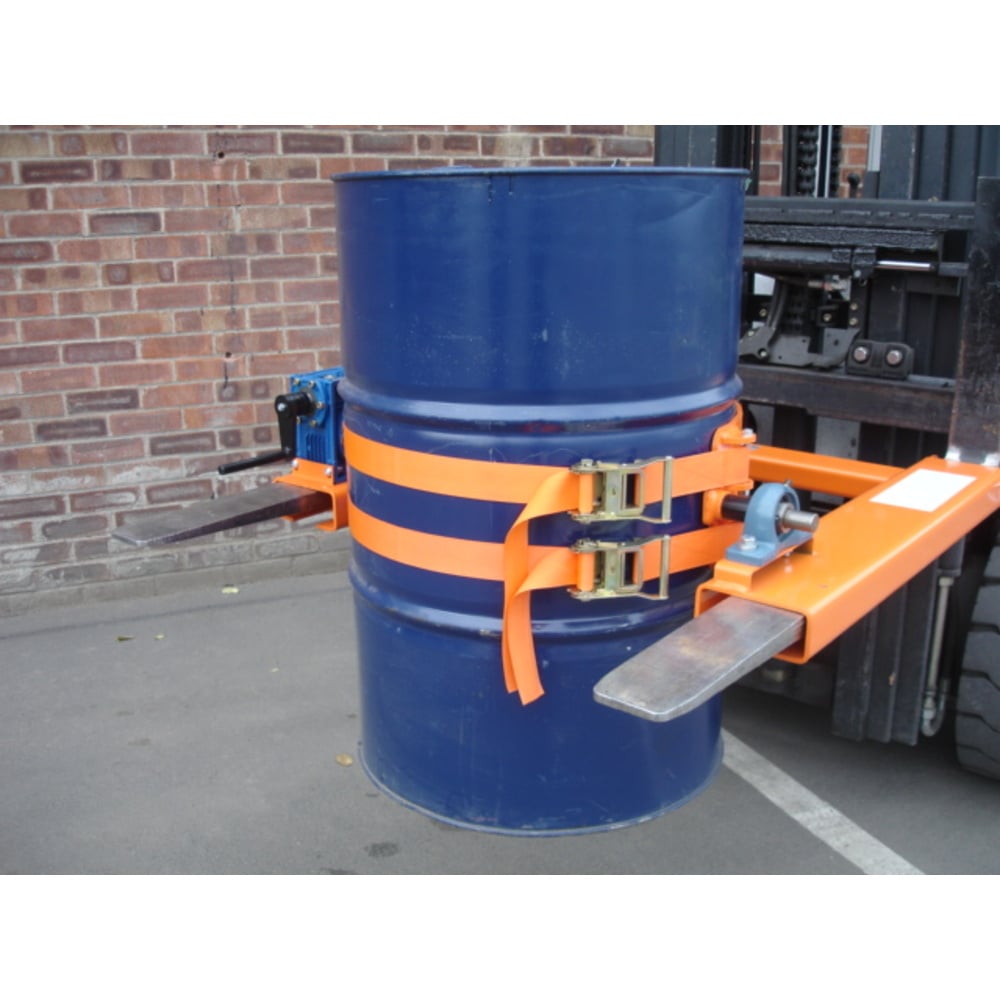

  • Three-point restraints plus twin 50 mm ratchet straps
  • Fork pockets with zinc-plated heel pins
  • 360 kg SWL, orange high-visibility finish

Specifications

Choose a size above to see its specifications.

Compare all 2 sizes
Model Capacity Control Weight C of G
IDTL-1.0 360 kg Crank handle 70 kg 560 mm
IDTL-2.0 360 kg Looped chain 95 kg 560 mm

Max fork section: 125 x 50 mm at 825 mm centres. Manufacturer: Invicta Forks & Attachments, Leeds, UK.

What's Included
  • 1 x Invicta IDTL Fork Mounted Drum Tilter with your chosen control
  • Test certificate and EC Declaration of Conformity where applicable

Where forklift access is limited, the crane slung ICTL drum tilter hangs from an overhead crane instead.

Documents (1)

View on this page or download.

PDFDatasheet
PDF document

Using and looking after it

Always read the manufacturer’s instructions before use. See the documents

Typical Applications
  • Decanting oil and chemical drums in warehouses
  • Feeding mixers and process hoppers
  • Drum handling in workshops and factories

Buying guide

Which Option Do I Need?
  • Crank Handle, IDTL-1.0 (70 kg): pouring at low level into containers, bunds or mixers.
  • Looped Chain, IDTL-2.0 (95 kg): pouring with the drum lifted, such as into a hopper or tank opening.

Questions and answers

Q: Will it fit my forks?

A: It takes forks up to 125 x 50 mm section at 825 mm centres.

Q: Can it handle plastic drums?

A: Yes, with the optional plastic drum adaptor.

Q: Crank handle or chain?

A: Use the crank handle for pouring at low level. The looped chain lets you tip the drum from the ground when it is raised on the forks.
