Large Dee Shackle with Type A Screw Collar Pin – HTLD
1 / 2

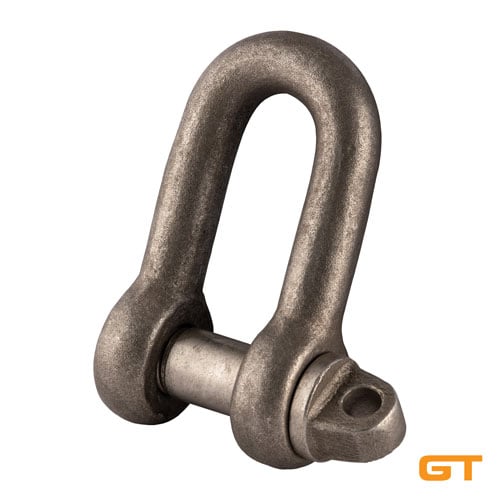

Large Dee Shackle with Type A Screw Collar Pin HTLD

Part no. HTLDSC.25
£1.39£1.16Inc VATEx VAT
£1.16 ex VAT£1.39 inc VAT ·
Size: 0.25t (SC.25)

About this item

  • Large dee shackle with Type A screw collar pin, WLL 0.25t to 14.25t
  • High tensile steel in self colour or hot dipped galvanised finish
  • Meets the WLL requirements of withdrawn BS 3032; MBL 4 times the WLL

Product description

The HTLD from GT is a high tensile steel large dee shackle with a Type A screw collar pin, for general in-line lifting connections. The large dee pattern gives a longer inside length than a small dee of the same pin size.

It comes in self colour or hot dipped galvanised, from 0.25 t to 14.25 t WLL, with a minimum breaking load of four times WLL. It meets the WLL requirements of the withdrawn BS 3032.

Key Features
  • Large dee pattern, longer inside length
  • Type A screw collar pin
  • Self colour or hot dipped galvanised
  • Minimum breaking load 4 x WLL
  • 0.25 t to 14.25 t WLL

Specifications

Choose a size above to see its specifications.

Compare all 13 sizes
Code (self colour) Code (galvanised) WLL (t) A B C D E Weight (kg)
HTLDSC.25 HTLDG.25 0.25 7.5 10 12 25 19 0.1
HTLDSC.5 HTLDG.5 0.5 10 13 20 37 25 0.12
HTLDSC.75 HTLDG.75 0.75 13 16 28.5 54 32 0.29
HTLDSC1.5 HTLDG1.5 1.5 16 19 32 63 38 0.57
HTLDSC2 HTLDG2 2 20 22 38 73 44 0.92
HTLDSC3 HTLDG3 3 22 25 44 82 51 1.59
HTLDSC3.75 HTLDG3.75 3.75 25 28 51 95 57 2.12
HTLDSC6 HTLDG6 6 32 35 60 114 70 4.54
HTLDSC7 HTLDG7 7 36 38 66 127 76 6.06
HTLDSC9.5 HTLDG9.5 9.5 38 44 70 137 88 8.74
HTLDSC11.25 HTLDG11.25 11.25 41 48 76 146 95 11
HTLDSC13 HTLDG13 13 45 51 83 156 102 12.5
HTLDSC14.25 HTLDG14.25 14.25 48 54 92 178 108 15.2

Dimensions in mm. GT lists both finishes in every size; 13 t and 14.25 t are currently orderable online in self colour only. For the rest of the rigging, see our chain and fittings.

Material High tensile steel
Finish Self colour or hot dipped galvanised
Standard Meets WLL requirements of withdrawn BS 3032
Safety factor Minimum breaking load 4 x WLL
Marking CE, WLL, manufacturer ID, traceability code

Questions and answers

Q: Bow or dee?

A: A bow has a rounded body that takes several sling eyes and copes better with angled loads. A dee is narrower and is for a single, in-line load; don't put a multi-leg sling in a dee.

Q: Screw pin or safety pin?

A: A screw collar pin is quick to fit and remove, but movement or vibration can turn it loose. For anything left rigged, or where a sling could rotate the pin, use a bolt, nut and split pin shackle.

Q: How often does it need examining?

A: Under LOLER 1998, lifting accessories need a thorough examination by a competent person at least every 6 months, and must be withdrawn after any overload.
