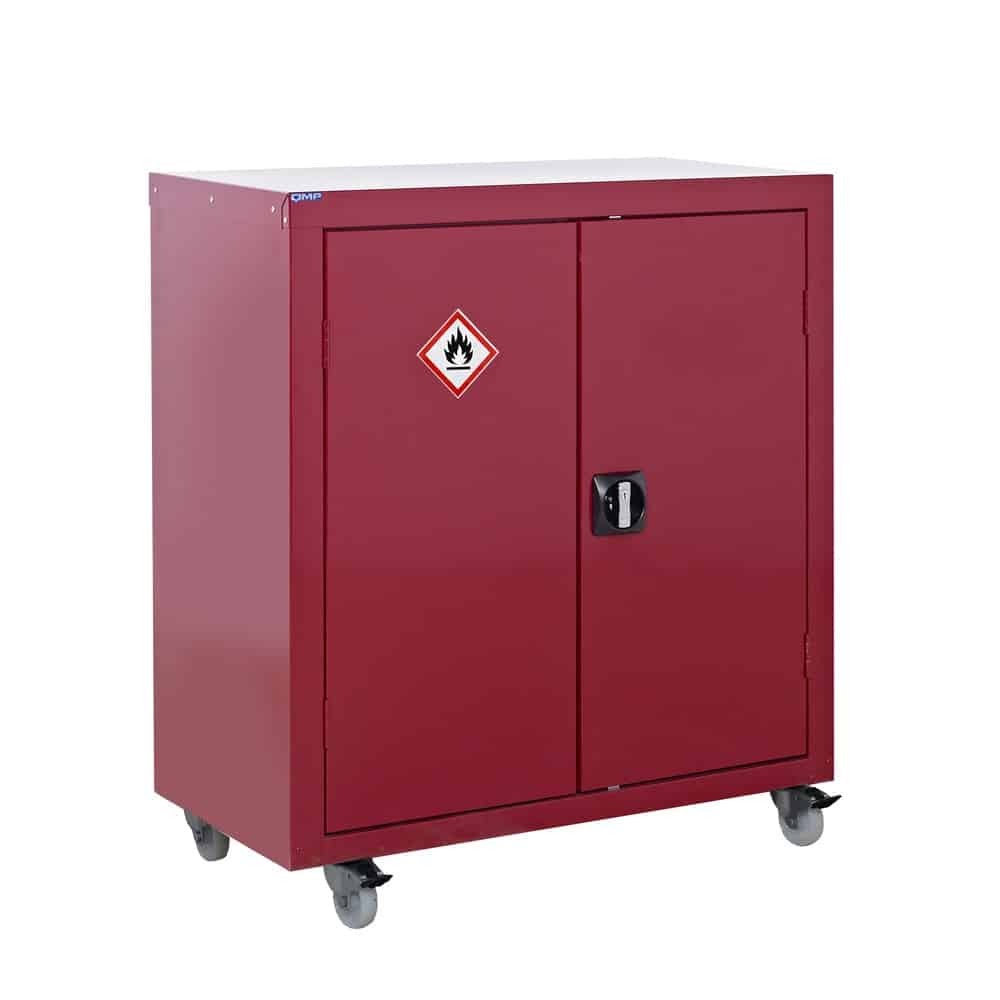

The Mobile Flammable Liquid Storage Cupboard (1040 x 900 x 460mm) offers safe, segregated storage for flammable liquids, supporting compliance with DSEAR 2002. The castor-mounted unit moves between work areas, with 1 adjustable galvanised spill-retaining shelf (UDL 50kg) behind a no-snag two-point key-locking handle (no sump is fitted to this mobile version). Powder-coated red with Germ Guard antibacterial technology, classified for Reaction to Fire under EN 13501-1, supplied with warning and regulation labels and manufactured to order in the UK.
Key Features
- No-snag two-point locking: an all-metal key-locking handle with two-point locking and no protruding snag points
- Adjustable spill-retaining shelves: galvanised, height-adjustable shelves with raised lips, rated to a 50kg uniformly distributed load
- Clearly marked red finish: powder-coated red with a germ-guard antibacterial compound, supplied with warning and regulation labels
- Reaction to Fire classified: classified to EN 13501-1, manufactured under ISO 9001:2015
- Fully mobile: mounted on castors for easy relocation between work areas
Technical Specifications
| External Dimensions (H × W × D) |
1040 × 900 × 460mm |
| Number of Shelves |
1 |
| Shelf Load (UDL) |
50kg per shelf |
| Integral Sump Capacity |
Not fitted |
| Mobility |
Mounted on castors |
| Carcass |
0.7mm mild steel, pop-riveted |
| Doors |
0.9mm mild steel, two-point no-snag key-locking handle |
| Colour |
Light grey carcass with red doors |
| Finish |
Epoxy polyester powder coat with Germ Guard antibacterial technology |
| Weight |
44.65kg |
| Fire Classification |
Reaction to Fire, EN 13501-1 |
| Quality System |
ISO 9001:2015 |
| Delivery |
Manufactured to order (extended lead time) |
UK Manufactured | Fire Classified EN 13501-1
This product is manufactured to order in the UK. Flammable liquid cupboards of this type help employers store flammable liquids safely and support compliance with the Dangerous Substances and Explosive Atmospheres Regulations 2002 (DSEAR) by providing segregated, sump-contained, clearly marked storage away from ignition sources. The powder-coated steel construction is classified for Reaction to Fire in accordance with EN 13501-1 and produced under a quality system certified to ISO 9001:2015. Warning and regulation labels are supplied as standard. As a manufactured-to-order item this product is subject to an extended lead time.
More About This Product
The Mobile Flammable Liquid Storage Cupboard 1040 x 900 x 460mm (1040 x 900 x 460mm) offers safe, segregated storage for flammable liquids in the workplace, supporting compliance with the Dangerous Substances and Explosive Atmospheres Regulations 2002 (DSEAR). This mobile (castor-mounted) unit has 1 adjustable galvanised spill-retaining shelf (UDL 50kg) behind a no-snag two-point key-locking handle. (No sump is fitted to this mobile version.) The unit is mounted on castors so it can be moved between work areas. It is powder-coated red with Germ Guard antibacterial technology and classified for Reaction to Fire under EN 13501-1. Supplied with warning and regulation labels. Manufactured to order in the UK.
Suitable Applications
Flammable Liquid Cupboards suit garages, workshops, factories, laboratories and stores wherever flammable liquids such as solvents, fuels, paints and thinners are kept in the workplace. The clearly marked red finish, segregated storage and integral sump support the control measures expected under DSEAR and your fire risk assessment, keeping flammables away from ignition sources.
See also the related range.
How to Use the Flammable Liquid Cupboard
- Site the cupboard in a well-ventilated area away from heat, sparks, naked flames and other ignition sources.
- Fit the enclosed warning and regulation labels so the contents and hazards are clearly marked.
- Adjust the galvanised shelves to suit your containers, ensuring each shelf is fully seated on its supports.
- Store flammable liquids in their original, correctly labelled containers and never exceed the 50kg uniformly distributed load per shelf.
- Keep only the quantities permitted by your DSEAR and fire risk assessments, and keep incompatible substances apart.
- Lock the cupboard after every use and restrict key access to authorised, trained personnel only.
Warning:
Flammable liquids are dangerous substances. Keep away from all ignition sources and store only the quantities permitted by your DSEAR and fire risk assessments. Always consult the safety data sheet (SDS) for every substance and never store incompatible materials together.
Safety Information
- Carry out a DSEAR risk assessment before storing flammable liquids and follow the control measures it identifies.
- Keep the cupboard away from heat, sparks, naked flames and other sources of ignition.
- Ensure the storage area is well ventilated and store only authorised quantities.
- Keep all liquids in their original, correctly labelled containers with the lids secure.
- Provide and use appropriate personal protective equipment (PPE) and have suitable spill absorbents to hand.
- Keep the cupboard locked when not in use and limit key access to trained, authorised personnel.
Inspection and Maintenance
Clean the paintwork periodically with warm soapy water or a foaming cleaner. Oil the hinges and lock sparingly as required with a light oil (3-in-1 or similar). Where a sump is fitted, inspect it regularly and clean out any spillage promptly using a suitable absorbent. Check that warning and regulation labels remain legible and replace them if damaged. Replacement locks and spare keys are available on request.
Frequently Asked Questions
Q: Does this help with DSEAR compliance?
Yes. It provides segregated, sump-contained, clearly marked storage for flammable liquids as part of the control measures identified in your DSEAR and fire risk assessments.
Q: Can I store flammables and other chemicals together?
Keep incompatible substances apart and follow your risk assessment. Flammable liquids should be stored away from ignition sources and oxidising or corrosive materials.
Q: Is it delivered assembled?
Yes. The unit is manufactured to order and delivered fully assembled with warning labels supplied.
