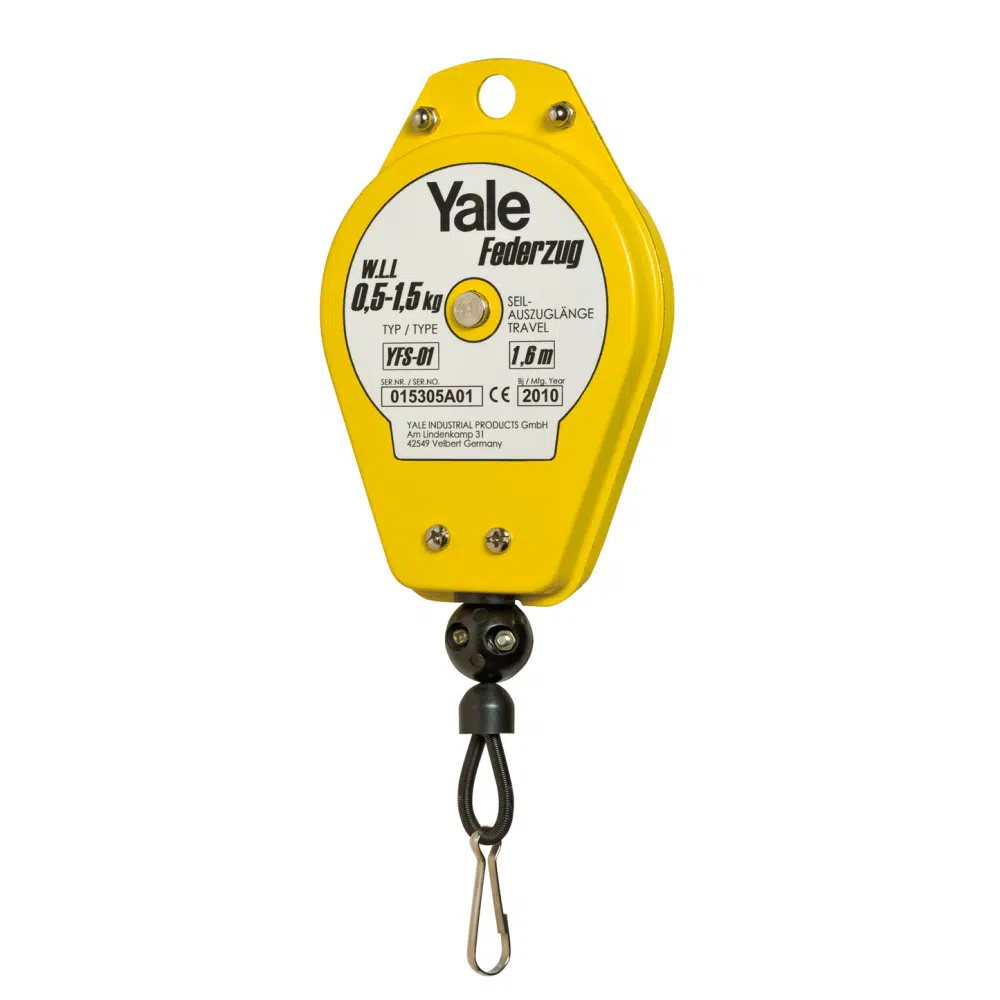

Yale YFS Retractor

Model YFS | Capacity 0.5 kg – 10 kg | Steel Cable, 1.5 m – 2.4 m Travel | Powder-Coated Stamped Steel Housing | CE & UKCA Marked | DIN 15112 Compliant | Made in Germany

The Yale YFS retractor is a spring-loaded tool retractor that suspends hand tools at the workstation, taking the weight off the operator and keeping equipment out of the way between operations. Five capacity grades cover everything from 0.5 kg cordless screwdrivers through to 10 kg pneumatic guns and welding torches, with steel cable travel from 1.5 m up to 2.4 m. An automatic drum lock complying with DIN 15112 arrests the cable if the spring fails, and a secondary anchor point accepts a safety chain for redundant load attachment.

Key Features

• Automatic drum lock per DIN 15112: Should the internal spring fail, the drum lock engages and arrests cable retraction, keeping the suspended load in place until the unit can be safely removed and replaced.
• Secondary safety hanger: The housing includes an additional anchor point for a safety chain in line with DIN 15112, providing a backup load path independent of the primary suspension hook.
• Adjustable cable stop: A movable stop on the cable lets the operator set the working position so the tool sits at a consistent rest height across the shift.
• Stamped-steel powder-coated housing: Built for continuous industrial workstation use; resistant to oil, coolant, and routine impact from tools and workpieces.
• Wear-resistant nylon rope guide: Protects the steel cable on every extension and retraction cycle, dramatically extending cable service life over unguided designs.
• Swivel snap hook at the tool end: Lets the suspended tool rotate freely without twisting the cable or fatiguing the spring drum bearing.
• EC Declaration of Conformity supplied: Every unit ships with the relevant compliance documentation for use in regulated production environments.
• Optional YFS-A variant: Adds an operator-switchable ratchet locking device that holds the tool at any extended position when engaged.

Technical Specifications

Capacity is a working range, not a maximum — the spring tension is fixed per model and the tool weight must fall within the rated band for the retractor to hold position correctly. Models YFS-04 and YFS-05 share the same larger housing.

More About This Product

The Yale YFS retractor is a spring-loaded tool retractor for suspending hand tools at the workstation, taking the weight off the operator and keeping equipment out of the way between operations. Five capacity grades cover everything from 0.5 kg cordless screwdrivers through to 10 kg pneumatic guns and welding torches, with steel cable travel ranges from 1.5 m up to 2.4 m for the larger units. Each retractor combines a stamped-steel powder-coated housing with a steel cable wound onto an internal spring drum. A wear-resistant nylon rope guide protects the cable on extension and retraction, and the housing top is fitted with an integrated suspension hook. The working end terminates in a swivel snap hook so tools can rotate freely without twisting the cable. An automatic drum lock complying with DIN 15112 arrests the cable if the spring fails, and a secondary anchor point on the housing accepts a safety chain for redundant load attachment.

Suitable Applications

The Yale YFS retractor is the standard solution for tool suspension at the workstation across manufacturing, assembly, automotive bodyshops, electronics production, packaging lines, and maintenance workshops. Typical suspended tools include cordless and pneumatic screwdrivers, rivet guns, weld guns, pneumatic torque wrenches, lightweight grinders, paint spray guns, and inspection lamps. The fixed-tension retraction profile suits applications where the tool sits at one consistent working height and is pulled down to use then released to retract. For applications where the tool needs to float at any height the operator leaves it, the Yale YBA or YBF spring balancer ranges are more appropriate.

How to Use the Yale YFS Retractor

1. Verify capacity match: Confirm the tool weight falls within the model's rated band. The retractor will not hold position correctly if the tool is significantly lighter or heavier than the rated range.
2. Mount the retractor securely: Suspend from a structure rated for the working load plus an appropriate safety factor. Engage the top hook safety latch fully.
3. Fit the secondary safety chain: Attach a galvanised steel safety chain through the housing's secondary anchor point to the same structural mount, providing a redundant load path independent of the primary suspension hook.
4. Inspect before use: Visually check the cable for kinks, frays, or surface damage; verify the snap hook latch operates correctly; check the housing for impact damage.
5. Attach the tool: Connect the tool to the swivel snap hook via a suitable suspension point or balance ring. Ensure the safety latch fully closes.
6. Set the rest height: Adjust the movable cable stop so the tool rests at the operator's preferred working height between uses.
7. Operate: Pull the tool down to the workpiece against the spring tension; release to allow the retractor to return the tool to the rest position.
8. End of shift: Allow the cable to fully retract. Do not leave the cable extended under load overnight if avoidable.

Warning:
Yale retractors are designed exclusively for tool suspension and must not be used to lift, lower, or transport personnel or loads. Never exceed the rated capacity band. Never use a retractor with a damaged cable, hook, or housing. The internal spring is under high tension — do not attempt to disassemble the spring drum.

Safety Information

• Always inspect the retractor before each use — cable, hooks, safety latches, and housing.
• Never exceed the capacity range stamped on the unit.
• Fit a secondary safety chain through the housing anchor point as a redundant load path.
• Ensure the suspended tool cannot snag or be pulled beyond the cable's working range.
• Replace the cable immediately if it shows any sign of fraying, kinking, or strand failure.
• Do not modify the housing or attempt to disassemble the spring drum — spring tension is hazardous if released uncontrolled.
• Workplace operators should establish a Thorough Examination regime under PUWER 1998 (and LOLER 1998 where tools are suspended above persons) appropriate to the duty cycle.
• Do not use the retractor as a lifting device — it is a tool suspension product only.

Inspection and Maintenance

The YFS retractor is essentially maintenance-free in normal use. The cable should be inspected before each shift for kinks, surface damage, or signs of internal wire failure (look for "barbing" where individual strands protrude). The drum lock should be tested periodically by allowing the cable to retract with no load attached — it should return smoothly under spring tension and arrest immediately if the unit is dropped or jolted. The housing, hooks, and snap hook latches require no scheduled servicing but should be replaced if any visible damage develops. WOLFF Onsite supplies replacement units and can arrange Thorough Examination under your existing site inspection contract.

Optional Accessories

• Safety chain: Galvanised steel safety chain for connection through the secondary anchor point on the retractor housing.
• YFS-A switchable ratchet variant: Available on request — adds an operator-switchable ratchet that locks the tool at any extended position.
• Workstation mounting brackets: Jib brackets and overhead rail trolleys for moving retractor position along an assembly line.

Downloads

• Yale YFS and YFS-A Datasheet (EN, 2024) — full spec table and dimensional drawings (PDF)
