Certex Eureka Wirelock – EWL
1 / 4

Certex Eureka Wirelock EWL

Part no. EWL4
£17.51£14.59Inc VATEx VAT
£14.59 ex VAT£17.51 inc VAT ·
Size: 4-5mm

About this item

  • Wire rope clamp approved for lifting, for rope from 4mm to 16mm diameter
  • Sizes 4-6mm in cast steel, zinc plated finish
  • Sizes 8mm to 16mm in drop forged steel, hot dipped galvanised

Product description

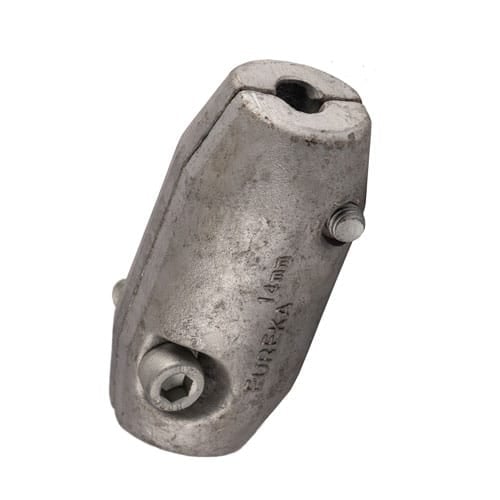

The Certex EUREKA is a two-half bolted wire rope grip for forming an eye in steel wire rope.

Each grip clamps the rope between two halves drawn together by two bolts, and every termination uses two grips. Assembled to Certex's instructions, EUREKA grips are approved for lifting.

For a permanent pressed termination, see the aluminium ferrule.

The termination can hold up to 90% of the rope's minimum breaking load. Sizes for 4 mm to 6 mm rope are cast steel, zinc plated; sizes from 8 mm to 16 mm are drop forged steel, hot dipped galvanised.

Key Features
  • Approved for lifting when assembled to Certex instructions
  • Two grips per termination for every size
  • Up to 90% of rope MBL retained
  • Cast steel zinc plated (4 to 6 mm); drop forged, hot dipped galvanised (8 to 16 mm)
  • For rope from 4 mm to 16 mm

Specifications

Choose a size above to see its specifications.

Compare all 8 sizes
Product Code Rope Dia (mm) Grips per Termination Bolt Dia (mm) D (mm) L (mm) Weight (kg) Bolt Torque (Nm) Certex Art. No.
EWL4 4-5 2 5 22 27 0.065 6 121100500070
EWL6 6 2 6 28 42 0.140 15 121100600070
EWL8 8 2 6 33 50 0.240 15 121100800070
EWL9 9-10 2 8 42 63 0.520 30 121101000070
EWL11 11 2 8 43 62 0.520 30 121101100070
EWL12 12-13 2 10 48 82 0.800 70 121101300070
EWL14 14 2 10 50 106 1.150 70 121101400070
EWL15 15-16 2 12 62 100 1.700 115 121101600070
Approval Approved for lifting when assembled to Certex instructions
Termination efficiency Up to 90% of rope MBL
Rope type 6 or 8 strand, steel or fibre core, grades up to 1960 N/mm²
Material and finish, 4 to 6 mm Cast steel, zinc plated
Material and finish, 8 to 16 mm Drop forged steel, hot dipped galvanised
Assembly Bolts tightened sequentially and evenly with a hex key; retighten after first loading
Inspection (Certex) At least monthly, with a complete inspection at least every 12 months
Brand Certex EUREKA
What's Included
  • 1 x Certex EUREKA wirelock grip in the size selected (two needed per termination)

You may also need: a TBS BS style thimble for the eye.

Using and looking after it

Always read the manufacturer’s instructions before use.

Typical Applications
  • Lifting eye terminations formed without a ferrule press
  • Site-made wire rope slings and strops
  • Winch and hoist rope eyes
  • Rope terminations that may need to be remade

Buying guide

Choosing the Right Size

Choose the grip for your rope diameter and order two per termination. EUREKA grips suit 6 or 8 strand steel wire rope with steel or fibre core, in rope grades up to 1960 N/mm².

They are not for compacted or plastic-coated rope in lifting use, and must not be mixed with other makes of grip.

Every eye needs a thimble that fits the rope, and the finished assembly must be load tested with the maximum permissible load before use.

Questions and answers

Q: How many grips do I need?

A: Two grips per termination, for every rope size.

Q: Can I use it on any wire rope?

A: It suits 6 or 8 strand steel wire rope with steel or fibre core, up to 1960 N/mm² grade. It is not for compacted or plastic-coated rope in lifting use.

Q: How strong is the termination?

A: Assembled to Certex's instructions, up to 90% of the rope's minimum breaking load.
