Cobra Grade 8 Clevis Jaw Shackle – CG8CJS
1 / 3

Cobra Grade 8 Clevis Jaw Shackle CG8CJS

Part no. CG8CJS8
£7.51£6.26Inc VATEx VAT
£6.26 ex VAT£7.51 inc VAT ·
Size: 7/8mm

About this item

  • Grade 8 alloy steel, BS EN 1677-1
  • Red painted finish: identifies the grade at a glance
  • Rated -20 °C to +200 °C
  • Fully marked and certificated, LOLER ready

Product description

The Cobra CG8CJS is a Grade 8 clevis jaw shackle that joins a chain leg straight onto a flat lifting lug, padeye or plate eye.

The jaw straddles the lug, a pin locks through it, and the clevis end pins to the chain, so no separate bow shackle is needed.

It comes in four chain sizes from 7/8 mm to 16 mm, rated 2 t to 8 t, in Cobra red to BS EN 1677-1. A Grade 10 version, the Cobra Plus G100CJS, is also available.

Key Features
  • Jaw fits directly over lugs and padeyes, no extra shackle
  • W.L.L. 2 t (7/8 mm) to 8 t (16 mm)
  • Jaw opening (F) from 36 mm to 70 mm
  • Clevis end pins to the chain, no coupling link
  • Red finish marks it as Grade 8 on site

Specifications

Choose a size above to see its specifications.

Compare all 4 sizes
Code Chain (mm) W.L.L. (t) Proof force (kN) Min. breaking force (kN) Weight (kg)
CG8CJS8 7/8 2 49 78.4 0.48
CG8CJS10 10 3.15 77.2 123.5 0.89
CG8CJS13 13 5.3 130 208 1.51
CG8CJS16 16 8 196 314 2.62

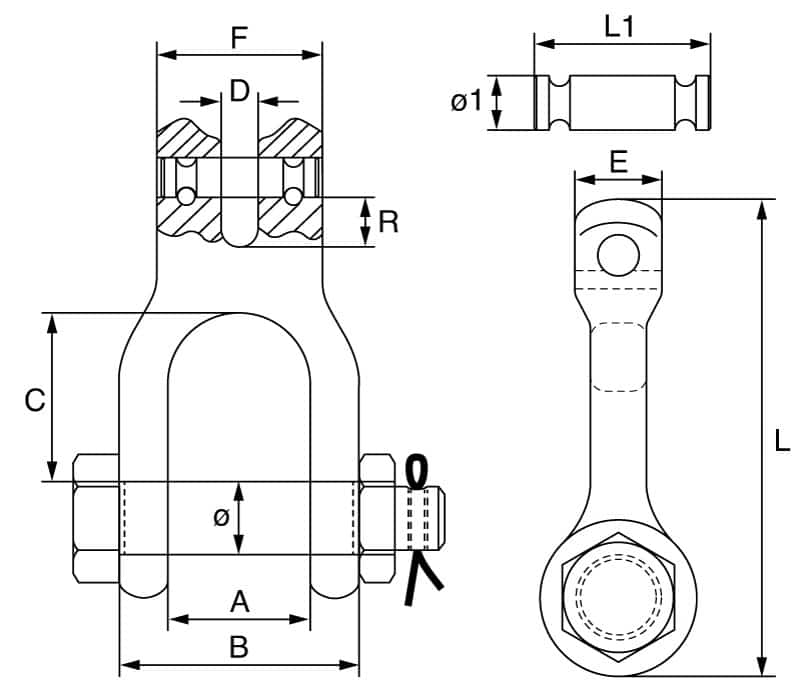

Dimensions (mm):

Code A B C D E F L P R Ø Ø1 L1
CG8CJS8 31 51 36.3 9 20 36 103.5 9.7 10.3 16 9.5 34
CG8CJS10 34 62 48 12.5 25 46.5 130.7 12.2 13 20 12 44
CG8CJS13 49 83 64 15 31 59 160 16 17 22 15.8 57
CG8CJS16 58 95 69.5 19 40 70 190.5 19.7 20.5 28.5 19.5 68
Material Grade 8 alloy steel
Standard BS EN 1677-1
Safety factor Minimum breaking force 4 x W.L.L.
Finish Red painted
Temperature range -20 °C to +200 °C (no WLL reduction; use below -20 °C or above +200 °C not permitted)
Marking Grade, manufacturer ID, size, product ID, traceability code; certificate supplied

Documents (1)

View on this page or download.

PDFGT Cobra Grade 8 User Instructions
PDF document

Buying guide

Choosing the Right Size

Match the shackle to the chain diameter of the chain sling leg, then check the jaw opening (F) and pin diameter suit the lug you are connecting to.

Code Chain W.L.L. Jaw opening F
CG8CJS8 7/8 mm 2 t 36 mm
CG8CJS10 10 mm 3.15 t 46.5 mm
CG8CJS13 13 mm 5.3 t 59 mm
CG8CJS16 16 mm 8 t 70 mm

Questions and answers

Q: When would I use a jaw shackle instead of a hook?

A: When the lifting point is a flat lug or padeye. The jaw pins through it, so the connection cannot slip off if the leg goes slack, unlike a hook.

Q: Can I mix it with Grade 10 chain?

A: Only if the whole assembly is derated to Grade 8, re-marked and recertified. It is simpler to keep one grade throughout.

Q: Does it come with a certificate?

A: Yes, it is supplied marked and certificated.
