Cobra Plus Grade 10 Clevis Reevable Egg Link – 1
1 / 2

Cobra Plus Grade 10 Clevis Reevable Egg Link 1062

Part no. G100REL8
£11.45£9.54Inc VATEx VAT
£9.54 ex VAT£11.45 inc VAT ·
Size: 8mm

About this item

  • Grade 10 alloy steel, BS EN 1677-1 +25% of loads
  • Blue painted finish: identifies the grade at a glance
  • Rated -20 °C to +200 °C
  • Fully marked and certificated, LOLER ready

Product description

The Cobra Plus G100REL is the Grade 10 version of the reevable egg link, letting a chain leg choke round a pipe or bundle by passing back through itself.

At each chain size it carries more than the Grade 8 egg link: 10 t on 16 mm chain against 8 t.

Four sizes suit 8 mm to 16 mm Grade 10 chain, rated 2.5 t to 10 t, in blue.

Key Features
  • Egg-shaped bore lets chain reeve through without jamming
  • W.L.L. 2.5 t to 10 t for 8 mm to 16 mm chain
  • Clevis end, no coupling link
  • Grade 10 to BS EN 1677-1 plus 25%
  • Blue finish identifies Grade 10

Specifications

Choose a size above to see its specifications.

Compare all 4 sizes
Code Chain (mm) W.L.L. (t) Proof force (t) Min. breaking force (t) Weight (kg)
G100REL8 8 2.5 6.25 10 0.53
G100REL10 10 4 10 16 0.95
G100REL13 13 6.7 16.75 26.8 1.76
G100REL16 16 10 25 40 2.8

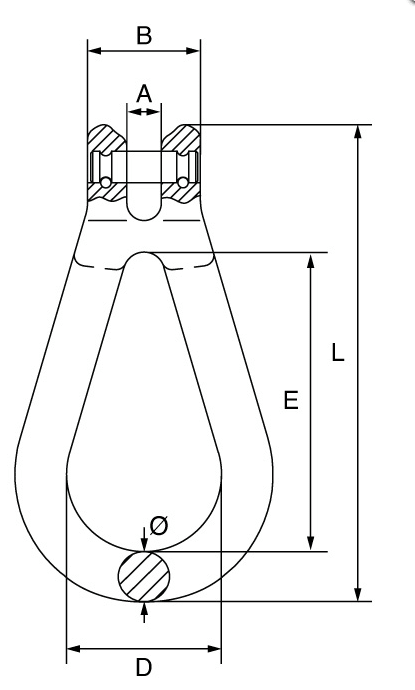

Dimensions (mm):

Code A B D E Ø L
G100REL8 10 32.8 45 85 15 139
G100REL10 12 42 59 108 19 174
G100REL13 16.5 55.5 66.5 137 22 228
G100REL16 19 68 72 165 26 264
Material Grade 10 alloy steel, quenched and tempered
Standard BS EN 1677-1 plus 25% of loads
Finish Blue painted
Temperature range -20 °C to +200 °C
Before you use it
  • Check hooks for a bent or opened throat, cracks and wear, and make sure the safety latch closes fully.
  • Check connectors and links for distortion, cracks, nicks and worn load pins.
  • Never weld, heat, grind or bend alloy components. Heat changes the steel and reduces its strength.
  • Inspection: under LOLER, lifting accessories need a thorough examination by a competent person at least every 6 months.

Documents (2)

View on this page or download.

PDFSpecification Sheet
PDF document
PDFSafety Information
PDF document

Buying guide

Choosing the right chain component
  • Match the grade. Alloy lifting chain and fittings come in grades such as 8 (G80), 10 (G100) and 12 (G120). Every part of a sling must be rated for the chain it is used with. The WLL of the finished sling is set by its lowest-rated part.
  • Match the size code. Components are made to suit a chain size (for example 8 mm or 10 mm). Use the component made for your chain size, never a larger or smaller one.
  • Stay within one system. Connecting links, couplers and shorteners are designed to work with their maker's own chain and fittings. Don't mix brands in one sling unless the makers confirm they are compatible.
  • Check the marking. Each component carries its grade, size and traceability marks. Never use a part you can't identify.
Choosing the Right Size

Match the egg link to the chain diameter. Remember the sling's choke rating, not its straight-pull rating, applies once it is reeved.

Questions and answers

Q: What does reeving do?

A: It forms a choke so the sling grips a round or loose load as it tightens.

Q: Grade 8 or Grade 10 egg link?

A: Grade 10 is rated higher at each chain size; use it with Grade 10 chain and fittings.

Q: Can it run through a standard link instead?

A: Not reliably; a standard link can jam the chain on a tight radius.
