Green Pin® Heavy Duty Bow Shackle with Safety Nut and Bolt Pin – GPHDB
1 / 4

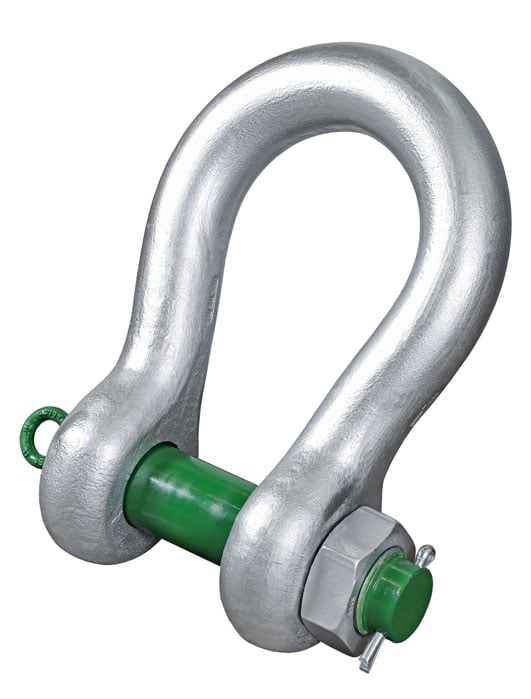

Green Pin Heavy Duty Bow Shackle with Safety Nut and Bolt Pin GPHDB

Part no. GPHDB120
£1,339.46£1,116.22Inc VATEx VAT
£1,116.22 ex VAT£1,339.46 inc VAT ·
Size: 120t

About this item

  • Heavy duty bow shackle with safety nut and bolt pin, WLL 120t to 1500t
  • Grade 8 quenched and tempered alloy steel, conforms to ASME B30.26
  • Silver body with green pin, minimum breaking load 5 x WLL

Product description

The Green Pin Heavy Duty bow shackle (GPHDB) is a large Grade 8 alloy shackle with safety nut and bolt pin for heavy lifts, offered from 120 t to 300 t.

It has a silver painted body and green painted pin. See our chain and fittings for the rest of the rig.

Key Features
  • Grade 8 alloy steel, quenched and tempered
  • Minimum breaking load 5 x W.L.L.
  • Silver body, green pin; ask us to confirm standard and temperature range

Specifications

Choose a size above to see its specifications.

Compare all 5 sizes

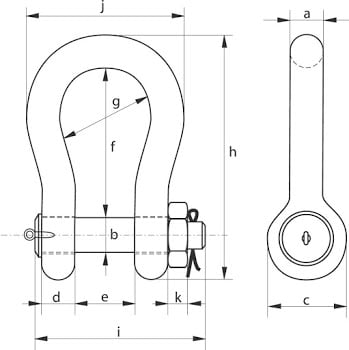

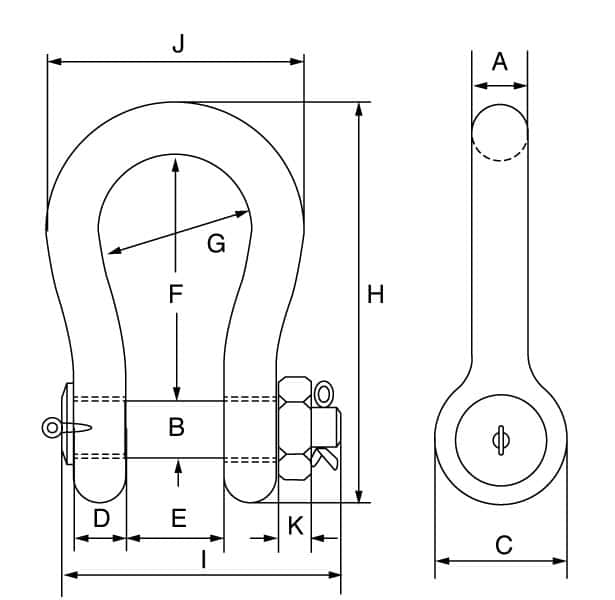

Code W.L.L. (t) A B C D E F G H I J K Weight (kg)
GPHDB120 120 95 95 204 95 147 400 238 644 453 428 50 116
GPHDB150 150 105 108 235 105 169 410 275 686 496 485 50 161
GPHDB200 200 120 130 270 120 179 513 290 833 564 530 71 252
GPHDB250 250 130 140 284 130 205 554 305 896 614 565 71 317
GPHDB300 300 140 150 308 140 205 618 305 987 644 585 81 386

Dimensions in mm. Table trimmed to the sizes that can be ordered.

Before you use it
  • Check it. Markings must be legible, and the body and pin must be the same brand, type and size. Look for damaged threads, distortion, wear, nicks, gouges, cracks and corrosion. Never use a shackle with a bent pin, tight threads or misaligned pin holes.
  • Fit the pin properly. Screw a collar pin in hand-tight, then tighten it with a wrench so the collar sits fully on the eye. Never use a safety bolt shackle without its cotter pin.
  • Use only the matching pin. Never replace it with any other pin or bolt.
  • Never modify it. No welding, heating, machining or bending, and no washers welded inside the eyes to narrow the jaw.
  • Keep it away from acids and other harmful chemicals.
  • Hazardous work. The WLL assumes normal conditions. For offshore work, lifting people, or molten or corrosive loads, a competent person must reduce it.
  • Inspect it at least every 6 months, more often in severe conditions.

Documents (1)

View on this page or download.

PDFDatasheet
PDF document

Buying guide

Choosing the right Green Pin shackle

Pin type. A screw collar pin is quick to fit and remove, for lifts where the shackle is not left in place. Choose a safety bolt shackle (bolt, nut and cotter pin) where the shackle stays in place for a long time, where the load can move over the pin and turn it, or where you need maximum pin security.

Two slings on one hook. Use a bow shackle, with the slings on the bow and the pin in the hook. Put no more than two sling legs on the bow, with no more than 120° between them. Loaded evenly like this, the full WLL can be used.

Side loading. Green Pin shackles are not designed for side loads. If one cannot be avoided, the WLL must be reduced using Van Beest's side-load chart.

The ROV shackles P-5363 and P-5367 are for in-line use only, and sling shackles have their own reduction curves.

Heat. Above 200 °C the WLL must be reduced:

Temperature Usable WLL
Up to 200 °C 100%
200 to 300 °C 90%
300 to 400 °C 75%
Above 400 °C Not allowed

Questions and answers

Q: Why a safety nut and bolt pin?

A: The bolt is secured by a nut and split pin, so it cannot unscrew. That suits long-term or permanent rigging, or any lift where the pin could rotate under load. The fixed nut safety pin version adds a locked nut for vibration.

Q: How often must it be examined?

A: As a lifting accessory, a thorough examination by a competent person at least every 6 months under LOLER 1998, plus a check before each use.

Have a question about this product?Ask a question
