Green Pin® Spring Release ROV Shackle – GPROV5367
1 / 5

Green Pin Spring Release ROV Shackle GPROV5367

Part no. GPROV536712
£2,883.67£2,403.06Inc VATEx VAT
£2,403.06 ex VAT£2,883.67 inc VAT ·
Size: 12t

About this item

  • Spring release ROV shackle, WLL 12t to 150t
  • Grade 8 polar quality alloy steel, minimum breaking load 5 x WLL
  • Assembled with wire rope slings and monkey's fist; compression tool needed from 42.5t to 150t (sold separately)

Product description

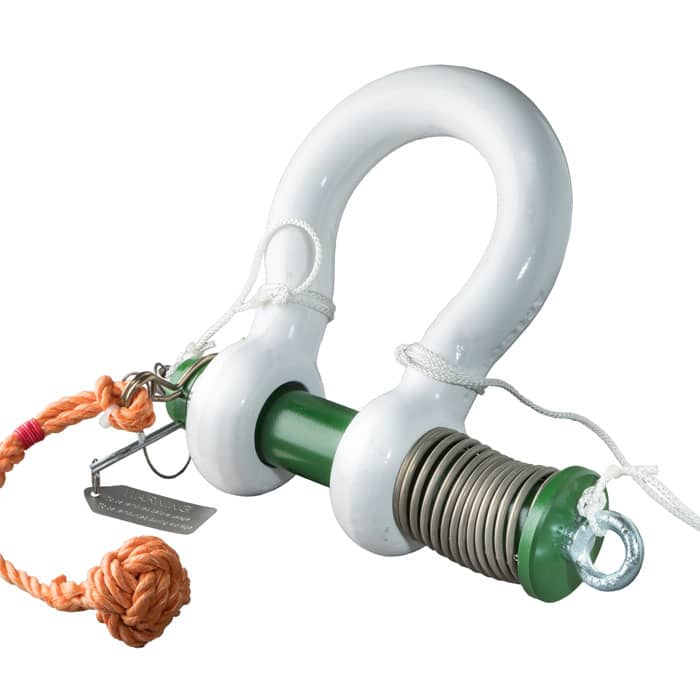

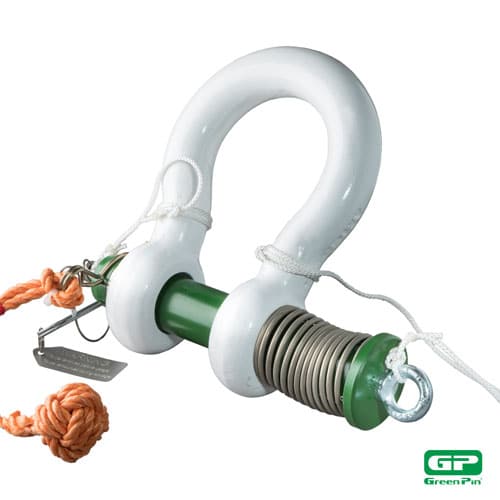

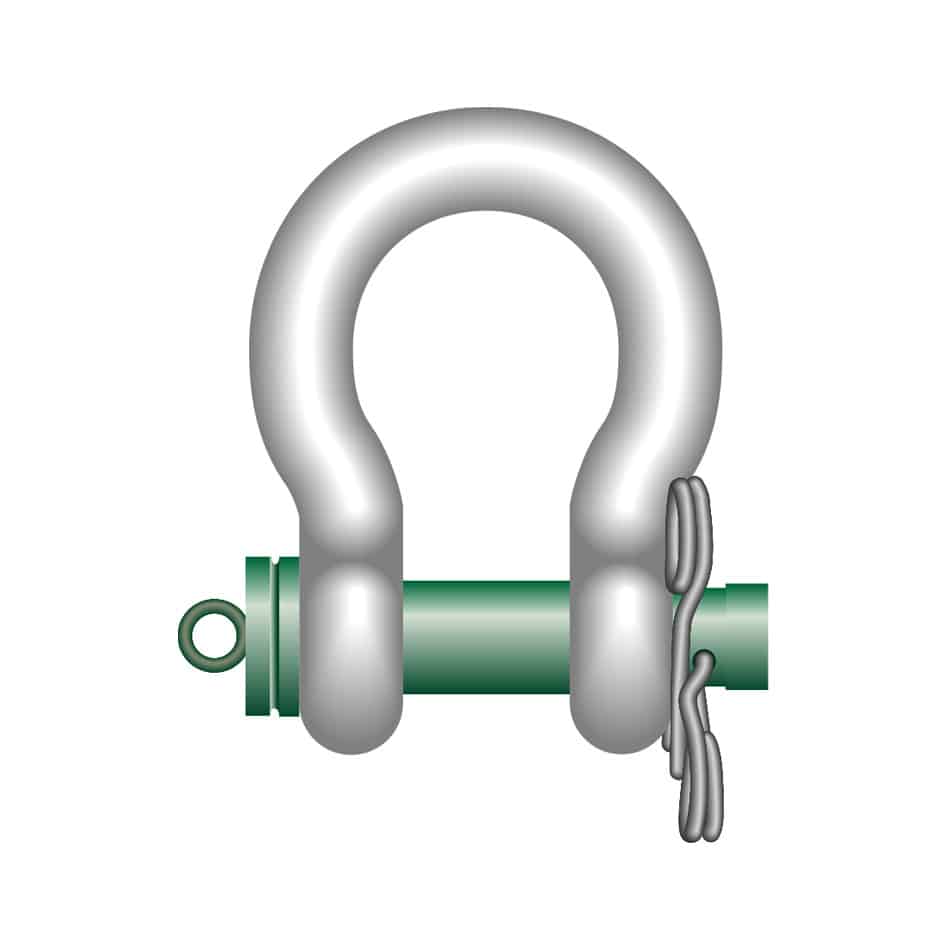

The Green Pin Spring Release ROV Shackle is a spring-loaded subsea release shackle for in-line use. An ROV arm pulls a wire rope sling with a monkey's fist (a knotted grip) to trigger the spring and release the load.

It is orderable in eight sizes from 12 t to 85 t, in Grade 8 alloy steel, quenched and tempered, with a minimum breaking load of 5 x WLL.

Key Features
  • Spring-loaded pin released by ROV
  • Supplied with wire rope slings and monkey's fist
  • 8 sizes, 12 t to 85 t WLL
  • Grade 8 alloy steel, MBL 5 x WLL
  • White body, green pin for visibility

Specifications

Choose a size above to see its specifications.

Compare all 8 sizes

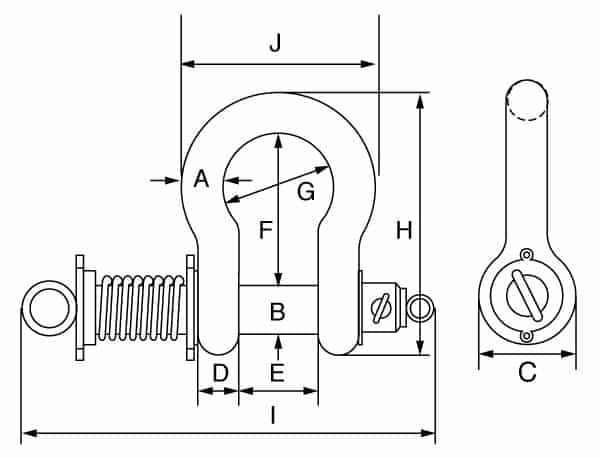

Code WLL A (mm) B (mm) C (mm) D (mm) E (mm) H (mm) Weight (kg)
GPROV536712 12 t 32 35 72 32 51 201 5.24
GPROV536713.5 13.5 t 35 38 80 35 57 227 7
GPROV536717 17 t 38 42 88 38 60 249 9.25
GPROV536725 25 t 45 50 103 45 74 300 15.5
GPROV536735 35 t 50 57 116 50 83 334 20.4
GPROV536742.5 42.5 t 57 65 130 57 95 377 39
GPROV536755 55 t 65 70 145 65 105 433 42
GPROV536785 85 t 75 83 162 75 127 527 67
Material Grade 8 alloy steel, quenched and tempered
Finish White painted body, green painted pin
Minimum breaking load 5 x WLL
Temperature range -40 °C to +200 °C
Operation Spring release by ROV; in-line use only
Supplied with Wire rope slings and monkey's fist
Assembly tool P-5368 compression tool needed from 42.5 t (sold separately)
Before you use it
  • Check it. Markings must be legible, and the body and pin must be the same brand, type and size. Look for damaged threads, distortion, wear, nicks, gouges, cracks and corrosion. Never use a shackle with a bent pin, tight threads or misaligned pin holes.
  • Fit the pin properly. Screw a collar pin in hand-tight, then tighten it with a wrench so the collar sits fully on the eye. Never use a safety bolt shackle without its cotter pin.
  • Use only the matching pin. Never replace it with any other pin or bolt.
  • Never modify it. No welding, heating, machining or bending, and no washers welded inside the eyes to narrow the jaw.
  • Keep it away from acids and other harmful chemicals.
  • Hazardous work. The WLL assumes normal conditions. For offshore work, lifting people, or molten or corrosive loads, a competent person must reduce it.
  • Inspect it at least every 6 months, more often in severe conditions.
What's Included
  • 1 x Green Pin Spring Release ROV Shackle, assembled with wire rope slings and monkey's fist

You may also need: Green Pin Compression Tool for sizes 42.5 t to 85 t.

Documents (1)

View on this page or download.

PDFDatasheet
PDF document

Using and looking after it

Always read the manufacturer’s instructions before use. See the documents

Typical Applications
  • Subsea release by ROV
  • Offshore installation and decommissioning
  • In-line subsea connections

Buying guide

Choosing the right Green Pin shackle

Pin type. A screw collar pin is quick to fit and remove, for lifts where the shackle is not left in place. Choose a safety bolt shackle (bolt, nut and cotter pin) where the shackle stays in place for a long time, where the load can move over the pin and turn it, or where you need maximum pin security.

Two slings on one hook. Use a bow shackle, with the slings on the bow and the pin in the hook. Put no more than two sling legs on the bow, with no more than 120° between them. Loaded evenly like this, the full WLL can be used.

Side loading. Green Pin shackles are not designed for side loads. If one cannot be avoided, the WLL must be reduced using Van Beest's side-load chart.

The ROV shackles P-5363 and P-5367 are for in-line use only, and sling shackles have their own reduction curves.

Heat. Above 200 °C the WLL must be reduced:

Temperature Usable WLL
Up to 200 °C 100%
200 to 300 °C 90%
300 to 400 °C 75%
Above 400 °C Not allowed
Design & Construction

The quick release system is designed to be worked easily by a hydraulically operated ROV arm: activating the spring disassembles the shackle quickly and safely. The monkey's fist on the wire rope slings gives the ROV gripper something to hold.

From 42.5 t upwards, a special compression tool is needed to compress the spring when assembling the shackle; it is sold separately.

Choosing the Right Size

Choose by WLL. Sizes 42.5 t, 55 t and 85 t need the compression tool for assembly.

Questions and answers

Q: Is it supplied with wires?

A: Yes. It comes assembled with wire rope slings and a monkey's fist.

Q: Do I need the compression tool?

A: For sizes 42.5 t and above, yes, to assemble the shackle. It is sold separately.

Q: How should it be looked after?

A: Rinse in fresh water, dry and lightly oil before storage. Inspect at least every six months.
