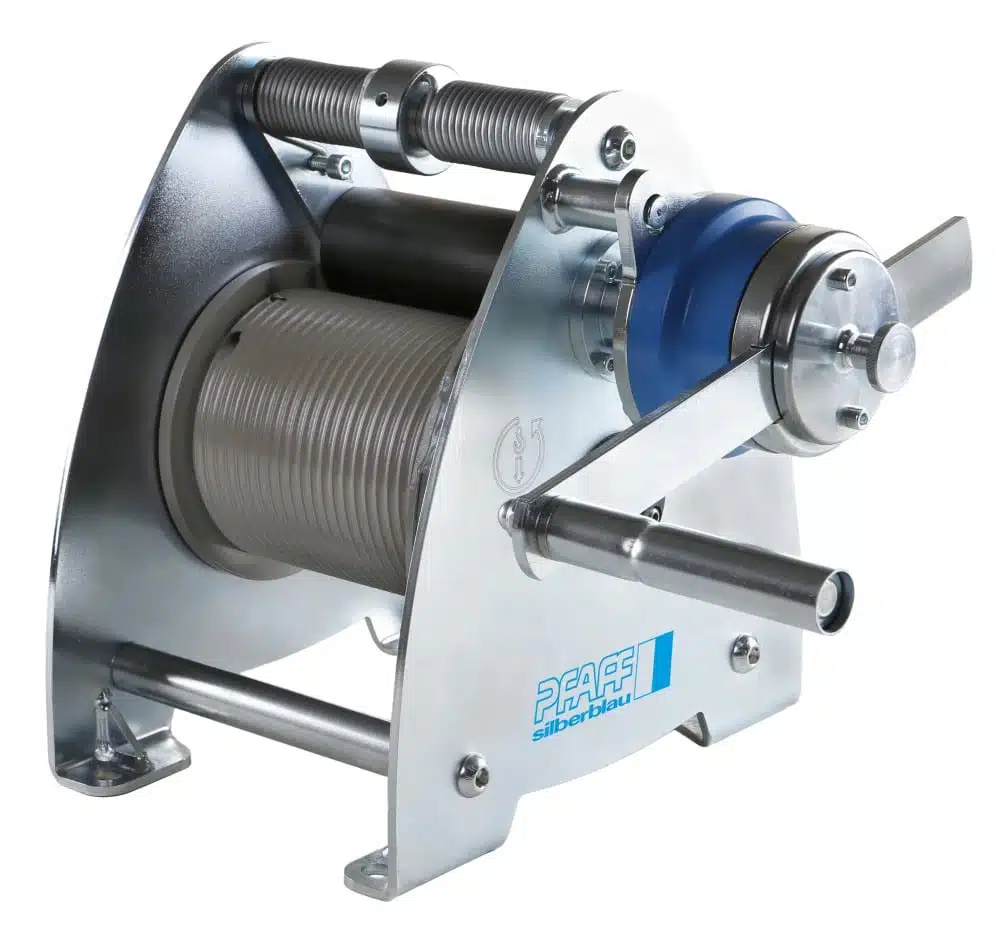

The Pfaff-Silberblau SW-K LAMBDA is the 300 kg console-mounted galvanised steel wire rope winch built on the same proven platform as the SW-K GAMMA range. Two configurations are offered: a single-line version with one rope drum carrying 10 m of working rope, and a dual-line version with two ropes giving 15 m on the first layer for installations requiring two separate lifting lines from one winch. Both share the galvanised steel side sections, enclosed sprocket-wheel drive, integrated safety spring brake and removable crank, with a lifting speed of 50 mm/crank revolution on 6 mm wire rope.
Key Features
- Single-line and dual-line configurations: Choose single-line for conventional single-load lifting; choose dual-line where the installation requires two separate lifting points from one winch (e.g. matched corner lifts on a load frame).
- Integrated safety spring brake system: Self-acting brake holds the load in any position when the crank is released, with smooth controlled descent during lowering.
- Compact galvanised steel side sections: Corrosion-resistant alloy housing suited to outdoor and damp environments. different platform from SW-K GAMMA (grooved drum, 18:1 drum-to-rope ratio, spring-loaded rope pressure roller, twin spring-brake safety crank).
- Enclosed sprocket-wheel drive: Drive components fully enclosed within the housing — protected against dirt ingress, weather exposure, and accidental contact.
- Removable crank: The crank handle detaches for storage or transport, preventing accidental rotation when the winch is unattended.
- Operates from either side: Symmetrical housing layout allows the crank to be fitted on either side, useful where the operator must stand in a specific position.
- Pre-fitted 6 mm wire rope: Galvanised wire rope sized to the rated capacity with appropriate safety factors; pre-terminated and ready for use.
- Low-friction shaft sliding bearings: Maintenance-free bearing design.
Technical Specifications
| Model |
Article No. |
Capacity (kg) |
Rope Diameter (mm) |
Rope Length, 1st Layer (m) |
Lift per Crank Rev. (mm) |
| SW-K LAMBDA 300 — single line |
30272015 |
300 |
6 |
10 |
50 |
| SW-K LAMBDA 300 — dual lines |
30272017 |
300 |
6 |
15 |
50 |
Both variants share the same housing dimensions, gear ratios, and mounting footprint. The dual-line variant fits two separate rope drums in the same housing, providing 15 m of working rope on the first layer split between the two lines.
CE & UKCA Marked | ISO 9001 Manufactured | Made in Germany
Pfaff-Silberblau is a brand of Columbus McKinnon Industrial Products, the global leader in hoisting, lifting, and load-positioning equipment. This product is CE marked under the EU Machinery Directive 2006/42/EC and UKCA marked under the UK Supply of Machinery (Safety) Regulations 2008, with each unit shipped with an EC Declaration of Conformity. Manufactured under EN ISO 9001 certified processes — the same quality management system applied across the wider Pfaff-silberblau, Yale, Stahl CraneSystems, and Pfaff-Silberblau product lines. Manual wire rope winches used for lifting loads in UK workplaces fall under LOLER 1998 and require Thorough Examination by a competent person at intervals not exceeding 12 months. PUWER 1998 also applies as work equipment.
More About This Product
The Pfaff-Silberblau SW-K LAMBDA is the 300 kg console-mounted galvanised steel wire rope winch built on the same proven platform as the SW-K GAMMA range, dedicated to lifting applications at this specific capacity. Two configurations are offered: a single-line version with one rope drum carrying 10 m of working rope, and a dual-line version with two ropes giving 15 m of working rope on the first layer for installations requiring two separate lifting lines from a single winch. Both share the rugged galvanised steel side sections, enclosed sprocket-wheel drive, integrated safety spring brake, and removable crank that characterise the SW-K platform. Lifting speed is 50 mm/crank revolution with 6 mm wire rope, sized for the rated capacity with appropriate safety factors.
Suitable Applications
The Pfaff-Silberblau SW-K LAMBDA is specified for fixed-position 300 kg lifting where the galvanised steel-housing platform offers corrosion resistance over a steel-housed winch. Single-line variants suit conventional 300 kg lifting from a single attachment point: sailing centre boat hoists, agricultural equipment lifts, outdoor maintenance hoists, light access platform deployment, and material handling at fixed lifting points. Dual-line variants are specified for matched two-point lifts — for example raising a small load frame, hatch, or platform that needs two synchronised lift points from a single winch operator. For capacities outside 300 kg on the same galvanised steel platform with lifting and pulling capability, see the SW-K GAMMA range (200 kg, 500 kg, 800 kg). For wall-mounted lifting in the 80 kg – 1,500 kg range with steel housing, see the SW-W (SG), SW-W Alpha, or MWS ranges.
How to Use the Pfaff-Silberblau SW-K LAMBDA
- Verify the mounting: Confirm the console mounting is secure and the bolts torqued. The mounting must support the rated capacity plus an appropriate safety factor.
- Fit the crank: Insert the removable crank into the shaft on the chosen operating side and lock in place per the OEM manual.
- Inspect the rope(s): Visually check the full working length(s) for kinks, broken strands, or surface damage. On the dual-line variant, inspect both ropes.
- Verify the brake: Attach a light test load, raise it a short distance, then release the crank. The load should hold without back-driving.
- Attach the load: Connect the rope end(s) to the load via suitable rated hooks, slings, or shackles. On the dual-line variant, ensure the two lines are attached to balanced points so the load lifts evenly.
- Lift the load: Crank smoothly. The safety spring brake engages automatically each time the crank is released.
- Lower the load: Crank in the reverse direction at a controlled rate.
- Remove the crank when unattended: Detach the crank handle for storage or when leaving the winch installed but unused.
Warning:
Wire rope winches are lifting devices and must not be used to lift, lower, or transport personnel. Never exceed the rated capacity stamped on the winch body. On dual-line variants, the rated capacity is the total combined load — not 300 kg per line.
Safety Information
- Verify the console mounting before each use — bolts torqued, mounting plate undamaged.
- Inspect the wire rope(s) for the full working length each shift; remove from service at first sign of broken strands, kinks, or surface damage.
- Never exceed the rated 300 kg capacity stamped on the winch body. On dual-line variants this is the combined total, not per-line.
- Never use the winch to lift, lower, or transport personnel.
- Test brake operation with a light load before each lifting operation.
- On dual-line variants, ensure both lines remain in tension during the lift — slack in one line transfers the full load to the other and may exceed its individual capacity.
- Keep at least three turns of rope on each drum at full extension — never run the rope off the drum.
- Remove the crank handle when leaving the winch unattended.
- Workplace operators must establish a Thorough Examination regime under LOLER 1998 / PUWER 1998 at intervals not exceeding 12 months.
Not every winch is rated for lifting; a pulling winch used on a suspended load is outside its rating. See the full winch range, and pulley blocks for changing the direction of pull.
Inspection and Maintenance
The SW-K LAMBDA shares its mechanical platform with the SW-K GAMMA range and follows the same low-maintenance service pattern. The galvanised steel side sections requires no specific corrosion protection. Before each use, inspect the wire rope(s), verify the brake holds correctly with a light test load, check the housing for impact damage, and confirm the removable crank fits cleanly and locks in place. The enclosed sprocket-wheel drive benefits from periodic light greasing per the OEM manual schedule. Replacement wire ropes are available from CMCO; only manufacturer-specified rope assemblies should be fitted. WOLFF Onsite provides LOLER-certified Thorough Examination, spare parts, replacement rope sets, and full overhaul for the Pfaff-Silberblau LAMBDA range.
Optional Accessories
- Replacement wire rope assemblies: Matched 6 mm diameter and length, pre-terminated for both LAMBDA configurations.
- Wire rope pulley blocks (DSRB): Pfaff-Silberblau DSRB pulley blocks deflect the rope at 90° or 180° to reposition the working line.
- Console mounting brackets: Reinforced mounting plates for non-standard wall structures.
- Replacement crank handle: Available from CMCO as a spare or service item.
Downloads
Frequently Asked Questions
Q: Single-line or dual-line — which do I need?
Single-line for conventional lifting of a single load via one rope. Dual-line where the load needs to be supported at two separate matched points from a single winch — typically a small load frame, balanced hatch, or platform where two synchronised lifts give better stability than a single central lift. The rated capacity is the same 300 kg total either way.
Q: Does dual-line mean 600 kg total?
No — both variants are rated 300 kg total. On the dual-line variant the load is split between the two ropes, so each rope carries roughly half (150 kg per line for a balanced lift). The dual-line is about lifting geometry, not capacity multiplication. If you need 600 kg, see the SW-K GAMMA 500 or one of the larger Pfaff winch ranges.
Q: How is the LAMBDA different from the GAMMA?
The LAMBDA is fixed at 300 kg capacity and dedicated to lifting only; the GAMMA covers 200/500/800 kg and supports both lifting and pulling. Both share the same galvanised steel side sections platform, brake system, and removable crank. The LAMBDA adds the dual-line configuration option which the GAMMA does not offer.
Q: Can the LAMBDA be used outdoors?
Yes — the galvanised steel side sections is corrosion-resistant and designed for outdoor and damp-environment use. It's the platform of choice for sailing clubs, marine sites, agricultural buildings, and any outdoor installation where a steel-housed winch would corrode prematurely.
Q: Does the LAMBDA need LOLER inspection?
Yes — manual wire rope winches used for lifting loads in UK workplaces fall under LOLER 1998 and require Thorough Examination by a competent person at intervals not exceeding 12 months. PUWER 1998 applies as work equipment. WOLFF Onsite provides full LOLER inspection across the Pfaff-Silberblau winch range.
