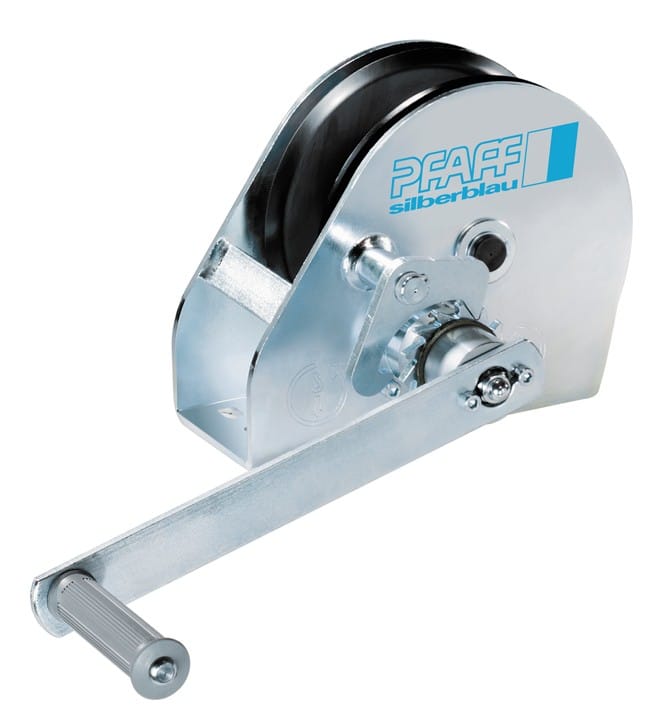

Pfaff-Silberblau SW-K LB Compact Wall-Mounted Wire Rope Winch

Model SW-K LB | Capacity 150 kg – 1,200 kg | Compact Wall-Mounted | Galvanised or Stainless Steel | Eight Standard Variants | Wire Rope 4 mm – 7 mm | CE & UKCA Marked | Made in Germany

The Pfaff-Silberblau SW-K LB is the compact wall-mounted manual wire rope winch range, offered in galvanised steel for general industrial and indoor use or stainless steel for marine, food-grade, chemical-resistant and hygiene-critical applications. Eight standard variants cover capacities from 150 kg up to 1,200 kg, each pre-fitted with wire rope sized to the rated capacity and top-layer rope lengths from 11 m to 26 m. The compact housing footprint suits installations where a full-size wall-mounted winch like the MWS or SW-W Alpha would not fit cleanly.

Key Features

• Eight standard variants: Capacities 150 kg, 250 kg, 350 kg, 650 kg, 900 kg, and 1,200 kg covered across galvanised and stainless steel material options.
• Galvanised or stainless steel construction: Material specification matched to the operating environment. Stainless steel variants give long-term corrosion resistance in marine, food-grade, chemical, and wash-down environments where zinc plating would fail.
• Compact wall-mounted design: Smaller housing footprint than the SW-W Alpha or MWS ranges — suits space-constrained installations where a full-size winch will not fit.
• Pre-fitted wire rope: Each winch ships ready to use with the correct rope diameter, length, and termination — no separate rope assembly required.
• Rope diameter matched to capacity: 4 mm (150 / 250 / 350 kg), 6 mm (650 kg), 7 mm (900 kg and 1,200 kg). Sized to the rated capacity with appropriate safety factors.
• Hand-cranked drum mechanism: Direct-acting manual lifting; no power supply, hydraulic feed, or compressed air required.
• Lift speed scaled to capacity: 125 mm/rev on the light 150 – 350 kg models, down to 45 mm/rev on the 900 kg stainless and 1,200 kg models — keeping crank handle force manageable across the range.

Technical Specifications

Material specification matters as much as capacity. Choose galvanised for general workshop, plant room, and indoor industrial use. Choose stainless steel for marine and dockside applications, food and beverage production lines, pharmaceutical and chemical environments, swimming pools and leisure facilities, and any application where wash-down cleaning regimes would corrode zinc plating.

More About This Product

The Pfaff-Silberblau SW-K LB is the compact wall-mounted manual wire rope winch range available in both galvanised steel and stainless steel construction. Eight standard variants cover capacities from 150 kg up to 1,200 kg, with material specification chosen for the operating environment: galvanised for general industrial workshop and indoor use, stainless steel for marine, food-grade, chemical-resistant, or hygiene-critical applications where the corrosion resistance of austenitic stainless outperforms zinc plating. Each variant ships pre-fitted with wire rope sized to the rated capacity, with top-layer rope lengths from 11 m up to 26 m depending on model. The compact housing footprint suits installations where space is limited and a full-size wall-mounted winch (like the MWS or SW-W Alpha) would not fit cleanly.

Suitable Applications

The Pfaff-Silberblau SW-K LB is the standard compact wall-mounted manual winch where space is limited or where material specification matters. Galvanised variants cover general workshop hoists, agricultural building installations, plant room access, and equipment maintenance hoists in indoor industrial environments. Stainless steel variants are specified for marine and dockside lifting, food and beverage production lines (where stainless contact equipment is preferred), pharmaceutical and chemical handling, swimming pool and leisure facility installations, and outdoor coastal applications where salt-air corrosion would compromise galvanised steel within months. For higher capacities up to 1,500 kg in galvanised construction, see the Pfaff-Silberblau MWS range. For the 300 kg – 1,000 kg range with integrated load-pressure brake, see the SW-W Alpha range.

How to Use the Pfaff-Silberblau SW-K LB

1. Verify the mounting: Confirm the wall-fixing bolts remain fully torqued and the wall substrate is undamaged. The mounting must support the rated capacity plus an appropriate safety factor.
2. Verify material match: Confirm the model variant (galvanised or stainless) suits the installation environment. Wash-down food production lines, pool plant rooms, and marine settings need the stainless variants.
3. Inspect the rope: Visually check the full working length for kinks, broken strands, or surface damage. Remove from service if any defect is found.
4. Attach the load: Connect the rope end to the load via a suitable rated hook, sling, or shackle. Ensure all connections are secure and safety latches engaged.
5. Verify the rope alignment: The rope should run cleanly from the drum through any guide or sheave to the load without rubbing against the housing or wall.
6. Lift the load: Crank the handle smoothly in the lift direction. Note the gear ratio differs by capacity: the 150 – 350 kg models lift 125 mm per revolution; the heavier 900 / 1,200 kg models lift 45 mm per revolution.
7. Maintain a firm grip: Hand-cranked winches require the operator to maintain control of the crank handle throughout the lift cycle.
8. Lower the load: Crank the handle in the reverse direction at a controlled rate.

Warning:
Wire rope winches are lifting devices and must not be used to lift, lower, or transport personnel. Never exceed the rated capacity stamped on the winch body. Never use a winch with damaged rope or distorted housing. The stainless steel variants are not stronger than the galvanised — they are equivalently rated but with better corrosion resistance.

Safety Information

• Verify the wall mounting before each use — bolts torqued, wall substrate undamaged.
• Inspect the wire rope for the full working length each shift; remove from service at first sign of broken strands, kinks, or surface damage.
• Never exceed the rated capacity stamped on the winch body.
• Never use the winch to lift, lower, or transport personnel.
• Maintain a firm grip on the crank handle throughout lifting and lowering.
• Keep at least three turns of rope on the drum at full extension — never run the rope off the drum.
• On stainless variants, do not assume increased capacity — material rating is corrosion-related, not strength-related.
• Workplace operators must establish a Thorough Examination regime under LOLER 1998 / PUWER 1998 at intervals not exceeding 12 months.

Inspection and Maintenance

The SW-K LB is built for low routine maintenance. Galvanised variants benefit from periodic inspection for corrosion at exposed surfaces, particularly at impact damage points where the zinc plating may be compromised. Stainless variants require routine cleaning to remove deposits that can pit the surface (especially in pool, marine, and food-production environments where chlorides accumulate); no additional corrosion treatment is required. Before each use, inspect the wire rope, check the wall mounting, and verify the crank handle is firmly fitted. The gear mechanism benefits from periodic light greasing per the OEM datasheet schedule (use food-grade lubricant on stainless variants in food-contact applications). Replacement wire ropes are available from CMCO in both galvanised and stainless options. WOLFF Onsite provides LOLER-certified Thorough Examination across the full SW-K LB range.

Optional Accessories

• Replacement wire rope assemblies: Matched diameter, length, and material (galvanised or stainless), pre-terminated for each capacity.
• Wire rope pulley blocks (DSRB): Pfaff-Silberblau DSRB pulley blocks deflect the rope at 90° or 180° to reposition the working line or double the pulling capacity.
• Stainless steel mounting hardware: Matched stainless bolts and mounting plates for stainless winch variants — avoids galvanic corrosion at the mounting interface.
• Food-grade lubricants: For stainless variants used in food and pharmaceutical applications.

Downloads

• Pfaff SW-K LB Datasheet (EN, 2024) — full spec table and dimensional drawings (PDF)
• Pfaff SW-K LB Operating Manual (EN) — installation, operation, inspection, and spare parts reference (PDF)
• Pfaff Wire Rope Winches Catalogue (EN, 2024) — full Pfaff winch range overview (PDF)
