Peak power 200 flywheel energy storage system
1 / 3

Dumarey Peak Power 200

Part no. 30072076
Price
Price on application
Tell us what you need and we will come back with a quote the same working day.

About this item

  • Flywheel energy storage delivering rapid power boosts
  • Reduces mains connection or generator size
  • Cuts emissions and fuel consumption without losing performance

Product description

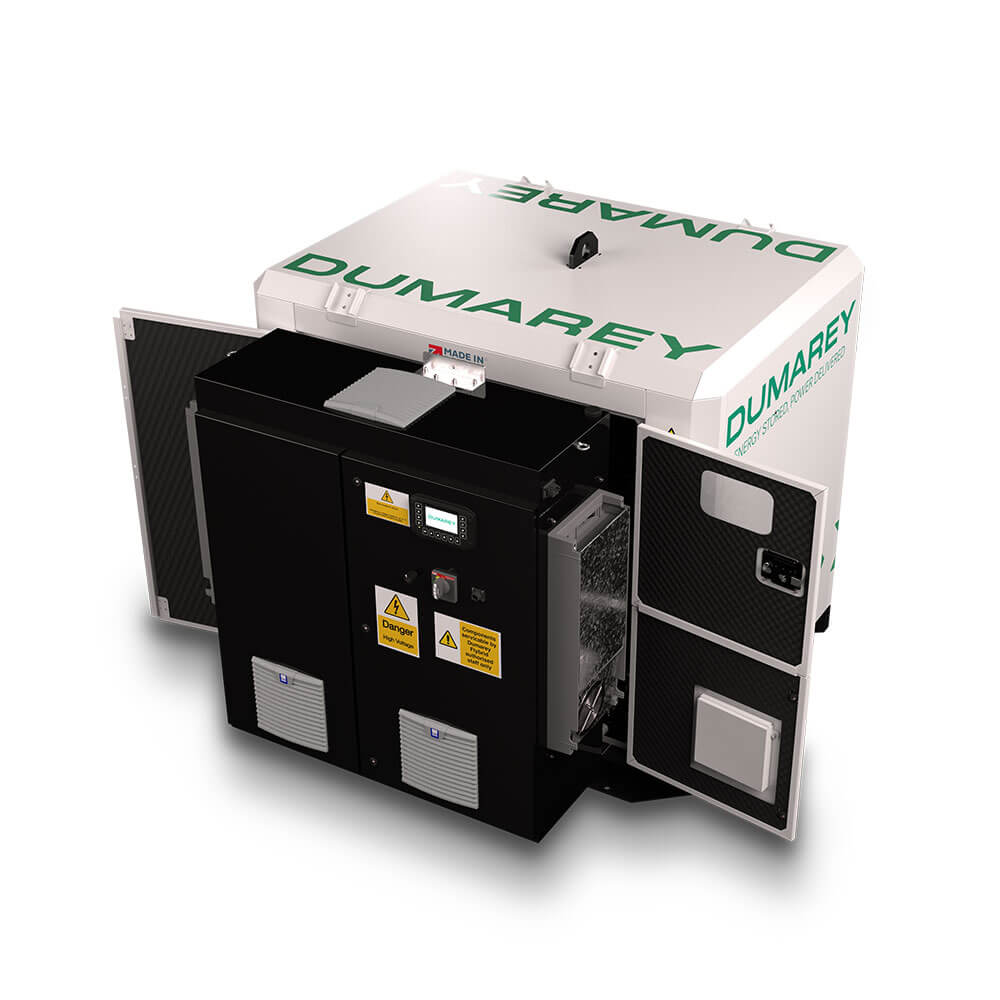

The Dumarey Peak Power 200 is a flywheel energy storage system that sits alongside a generator or mains supply and delivers rapid bursts of power for peak loads.

Dumarey state that generators can often be downsized by a factor of 2 or 3, cutting fuel use and emissions.

It delivers 85 kW of peak power, reacts in under 30 ms, and its flywheels are designed for over 15 million full charge-discharge cycles. Contact us to discuss your site.

Key Features
  • 85 kW peak power, ramping at 2,500 kW/s
  • Reacts to load changes in under 30 ms
  • Generators can often be downsized by a factor of 2 or 3
  • Over 15 million full charge-discharge cycles; 80,000 h design life
  • 4G telemetry and IP67 control display

Specifications

Peak power rating85 kW
Peak power rate2,500 kW/s
Apparent powerUp to 133 kVA for around 5 seconds
Load reaction timeUnder 30 ms
Voltage400/480 V
Frequency50/60 Hz
Cycle lifeOver 15 million full charge-discharge cycles
Design life80,000 h
Operating temperature-20 to 45 °C
Sound pressure (50 Hz, 60% SoC)68 dB(A) at 1 m, 58 dB(A) at 7 m
Dimensions (A / B / C)1,591 / 1,300 / 1,654 mm
Mass1,280 kg
ControlDSE M840 4.3" display, IP67; Ethernet/USB; 3G/4G cloud telemetry
What's Included
  • Peak Power 200 flywheel energy storage unit with DSE M840 control panel and telemetry router

It sits alongside a diesel generator on site; for longer-duration storage, see the Ampd Enertainer battery system.

Documents (1)

View on this page or download.

PDFPeak Power 200
PDF document

Using and looking after it

Always read the manufacturer’s instructions before use. See the documents

Typical Applications
  • Tower cranes and hoists
  • Concrete pumps and batching plants
  • Welding equipment
  • Sites with a limited grid connection

Buying guide

Design & Construction

A flywheel stores energy as rotation: a heavy rotor spinning in a vacuum chamber. When a tower crane hoists or a concrete pump starts, the Peak Power 200 releases that energy in milliseconds to cover the spike, then recharges from the generator or grid once demand falls.

The generator only has to cover average load, so a smaller set can be used and it runs at a more efficient load.

Unlike chemical batteries, flywheels charge and discharge rapidly without wearing out, which suits the constant stop-start duty of cranes and hoists. It can also supply up to 133 kVA of apparent power for around 5 seconds, which helps with the motor starting loads that strain small generators.

The IP67 DSE M840 4.3" control panel shows power, voltage and frequency for plant, generator and storage, plus flywheel state of charge, oil pressure and temperature and vacuum level, with event logs, alarms and cloud telemetry over an onboard 3G/4G router.

Questions and answers

Q: How does it let me use a smaller generator?

A: It covers short peaks, such as a crane hoisting, from its flywheels, so the generator only needs to handle average load. Dumarey state that generators can often be downsized by a factor of 2 or 3.

Q: Is it a battery?

A: No. It stores energy mechanically in flywheels, which are designed for over 15 million full charge-discharge cycles. It is for short peaks, not long-duration storage.

Q: Can I monitor it remotely?

A: Yes, through cloud telemetry over its onboard 3G/4G router, as well as on the local control panel.
