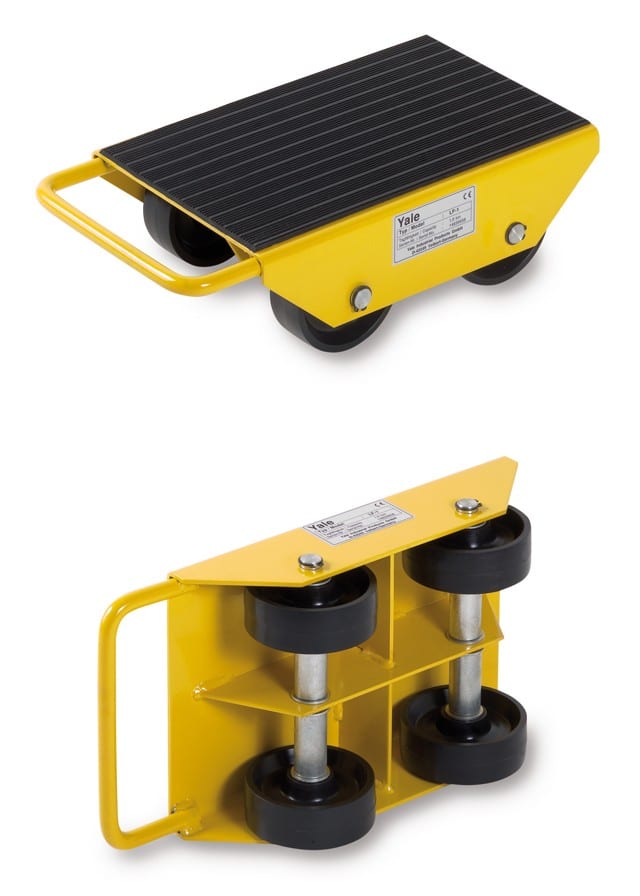

Steerman LF-1 Fixed-Wheel Load Moving Skates, 1t Capacity
1 / 4

Steerman LF-1 Fixed-Wheel Load Moving Skate, 1t Capacity

Part no. LF-1
£96.90£80.75Inc VATEx VAT
£80.75 ex VAT£96.90 inc VAT ·

About this item

  • 1000kg fixed-wheel load moving skate
  • Solid forged steel with anti-slip rubber top; 4 nylon wheels (100x35mm)
  • 400x228x120mm, 7kg, maintenance-free
  • Use individually or combined with matching-capacity LF/LFL skates

Product description

The Steerman LF-1 is the lightest fixed-wheel skate in the LF range: a 7 kg forged steel skate rated 1 t, running on four 100 x 35 mm nylon wheels.

Use a set under workbenches, cabinets and light machines for straight-line moves across a smooth floor.

Key Features
  • 1 t per skate
  • 4 abrasion-resistant nylon rollers, 100 x 35 mm
  • Plain bearings
  • Solid forged steel with anti-slip rubber top
  • Maintenance-free; combines with LF and LFL skates

Specifications

ModelLF-1
Capacity1,000 kg (1.0 t)
Rollers4 x 100 x 35 mm, abrasion-resistant nylon
BearingsPlain bearings
Dimensions (L x W x H)400 x 228 x 120 mm
Weight7.0 kg
ConstructionSolid forged steel, anti-slip rubber lining
SteeringNone (fixed wheels)

Documents (1)

View on this page or download.

PDFSteerman LF Datasheet
PDF document

Using and looking after it

Always read the manufacturer’s instructions before use. See the documents

Typical Applications
  • Moving machines and tooling on shop floors
  • Repositioning workbenches and cabinets
  • Machinery installation and removal
  • Fabricated assemblies on production lines

Buying guide

Choosing the Right Model

Divide the load by the skate rating and round up, then check the load is rigid enough to share weight across all skates. Add steerable LFL skates at one end if you need to guide the load. Figures for the LF range:

Model Capacity Rollers Roller size L x W x H Weight
LF-1 1.0 t 4 100 x 35 mm 400 x 228 x 120 mm 7.0 kg
LF-2 2.0 t 8 100 x 35 mm 400 x 228 x 120 mm 8.0 kg
LF-2.5 2.5 t 2 85 x 90 mm 275 x 120 x 100 mm 4.0 kg
LF-3 3.0 t 4 85 x 85 mm 400 x 228 x 100 mm 9.5 kg
LF-6 6.0 t 6 85 x 85 mm 415 x 210 x 100 mm 12.0 kg

Questions and answers

Q: What is the difference between LF and LFL skates?

A: LF skates have fixed wheels and roll straight. LFL skates have swivel wheels for steering. They combine if capacities match.

Q: How many skates do I need?

A: Divide the load weight by 1 t and round up, allowing extra skates for long or flexible loads. For 2 t in the same footprint, see the LF-2 skate.
