Viper 360° Rotating Machinery Moving Skate 2T – VRS2
1 / 3

Viper 360° Rotating Machinery Moving Skate 2T VRS2

Part no. VRS2
£273.65£228.04Inc VATEx VAT
£228.04 ex VAT£273.65 inc VAT ·

About this item

  • 2 tonne capacity, every wheel rotates 360° for movement in any direction
  • Turntable top on bearings, load rotates independently of the skate
  • Polyurethane wheels to protect finished floors
  • Compatible steering handle VRSHAN (V4503) available separately

Product description

The Viper VRS2 is the smallest rotating skate in the range, rated 2 t, with a squarer 416 x 536 mm footprint that sits stably under cabinets, small machines and switchgear.

Every wheel swivels and the top turns on bearings. For bases with narrow feet or rails, the 4 t VRS4 has a long, narrow body.

Key Features
  • 2 t capacity
  • Squarer 416 x 536 mm footprint
  • All wheels swivel 360 degrees
  • Bearing-mounted turntable top
  • Shares the VRSHAN handle with the VRS4

Specifications

ModelVRS2
Capacity2 t
Dimensions (W x L)416 x 536 mm
Deck height105.5 mm
Weight39 kg
WheelsPolyurethane, 360 degree swivel
TopBearing-mounted turntable
HandleVRSHAN (V4503), sold separately

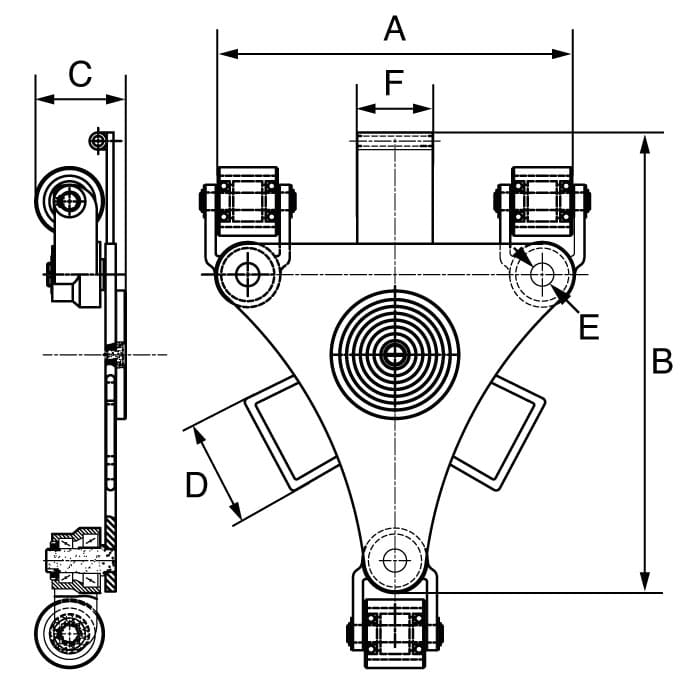

DocumentsViper user instruction manual; dimension drawing

Using and looking after it

Always read the manufacturer’s instructions before use.

Typical Applications
  • Machine tool installation and relocation
  • Generators, transformers and compressors in plant rooms
  • Moving plant through doorways and round corners
  • Positioning equipment onto foundations

Buying guide

Design & Construction

Every wheel sits on a swivel, so the skate rolls forwards, sideways or diagonally without being lifted and turned. The top plate is a turntable on bearings, so the load can also rotate on the spot.

Together they let a machine be walked sideways through a doorway and then turned to its final position without being set down.

Wheels are polyurethane, chosen to reduce marking on finished floors. Keep them free of grit and swarf, which would score the floor.

Choosing the Right Model
Model Capacity Footprint Deck height Weight Handle
VRS2 2 t 416 x 536 mm 105.5 mm 39 kg VRSHAN (V4503)
VRS4 4 t 250 x 676 mm 105.5 mm 39 kg VRSHAN (V4503)
VRS10 10 t 218 x 576 mm 70 mm 93 kg VRSHAN10

Rotating skates are normally used three or four under a load. The number depends on the weight distribution and where the base can be supported, not only on dividing the weight by the rating.

For a matched rig with steering skate and handle included, see the Viper VMMS skate set.

Questions and answers

Q: Is the handle included?

A: No. The compatible handle is VRSHAN (V4503), ordered separately.

Q: Will they damage my floor?

A: Polyurethane wheels reduce marking compared with steel, but the slab still needs assessing: the load is concentrated through small wheels.
