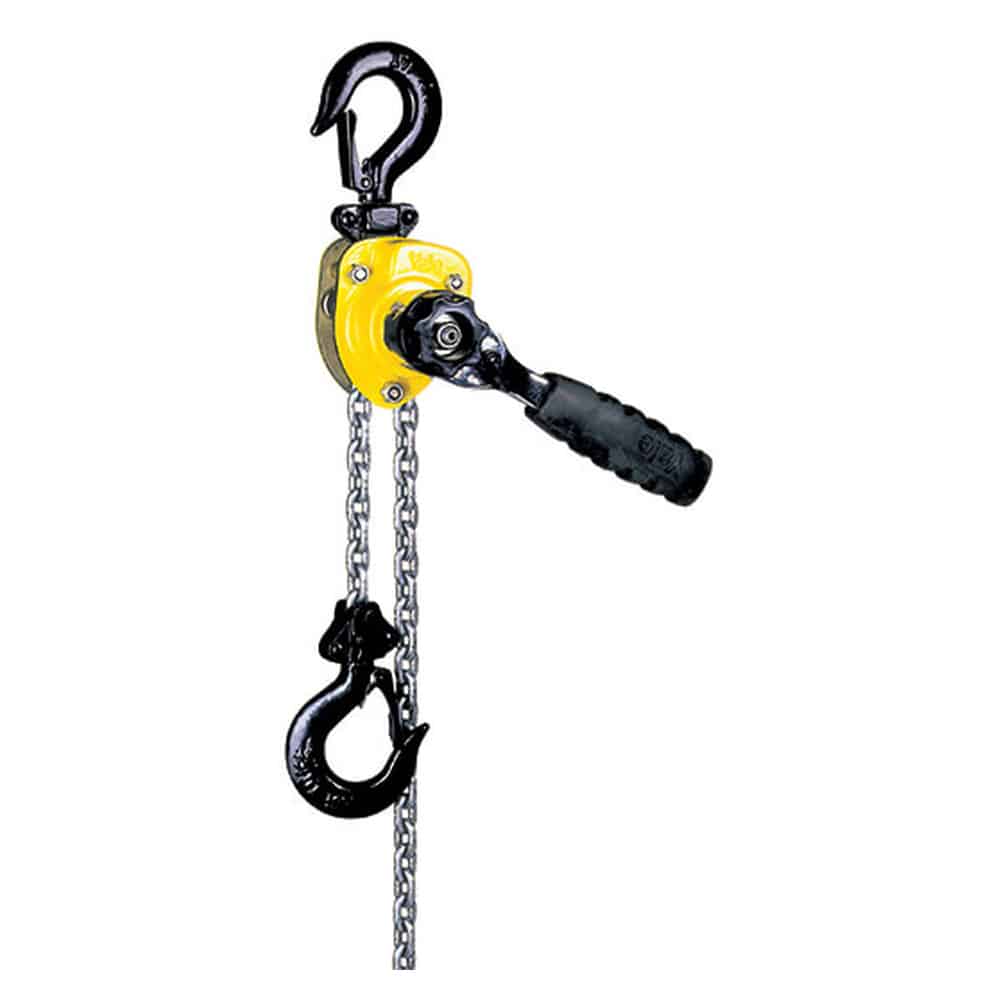

The Yale Yalehandy 250 kg is the smallest ratchet lever hoist in the Yale range, designed for confined working conditions where a full-size hoist simply will not fit. With an extreme low own weight of just 2.2 kg and a very compact body, it is the right tool for service technicians, electricians, fitters and any tradesperson needing occasional pulling and lifting power without carrying a heavier industrial hoist. The enclosed design protects the internal parts from contamination, while a short hand lever with ergonomic rubber grip keeps operation comfortable.
Key Features
- Extreme low own weight and very compact design: Just 2.2 kg total — easy to use in confined working conditions and easy to carry on a service truck.
- Enclosed housing: The fully enclosed design protects the internal parts from dust, dirt and moisture contamination.
- Short hand lever with ergonomic rubber grip: Comfortable operation in a compact format — handle pull is just 25 daN at WLL.
- Disc-type load brake with corrosion-protected components: All parts of the disc-type load brake are manufactured from high-quality materials and are corrosion-protected.
- Standard free-chaining device: Quickly attach the load or pull the chain through the hoist in both directions.
- Alloyed steel link chain, zinc-plated or yellow chromated: 4 × 12 mm load chain in accordance with national and international standards.
- Forged suspension and load hooks with robust safety latches: Made from non-aging, high-tensile steel.
Technical Specifications
| Model |
Article No. |
Capacity (kg) |
Chain Falls |
Chain (d × p, mm) |
Lift per Lever Turn (mm) |
Handle Pull at WLL (daN) |
Weight at 1.5 m Lift (kg) |
| Yalehandy 250 |
N02300018 |
250 |
1 |
4 × 12 (T) |
80 |
25 |
2.2 |
Supplied with 1.5 m standard chain length. Throat opening: 21 mm.
CE & UKCA Marked | German Engineered | Compact Service Hoist
Yale is part of the Columbus McKinnon group. CE marked (EU Machinery Directive 2006/42/EC) and UKCA marked. Note that ratchet lever hoists under 750 kg capacity are not designed for load attachment per EN 12195 — refer to the Yale C85/D85 or UNOplus-A range for load attachment applications. LOLER 1998 thorough examinations are required every 12 months by a competent person where used as lifting equipment.
More About This Product
The Yale Yalehandy 250 kg is the smallest ratchet lever hoist in the Yale range — designed for confined working conditions where a full-size hoist simply will not fit. With an extreme low own weight of just 2.2 kg and a very compact body, the Yalehandy is the right tool for service technicians, electricians, fitters, and any tradesperson who needs occasional pulling and lifting power without carrying around a heavier industrial hoist. The enclosed design protects the internal parts from contamination, while a short hand lever with ergonomic rubber grip keeps operation comfortable.
Suitable Applications
The Yalehandy 250 kg is a compact-format ratchet lever hoist designed for industry, trade and service applications. Typical uses include light pulling tasks, equipment positioning in tight spaces, electrical work (cable pulling, conductor tensioning), light fabrication, fence and wire tensioning, vehicle and machinery service work, agricultural maintenance and building services. Where 250 kg is not enough the Yalehandy 500 kg is the same format at double the capacity, and above that the UNOplus-A range starts at 750 kg.
