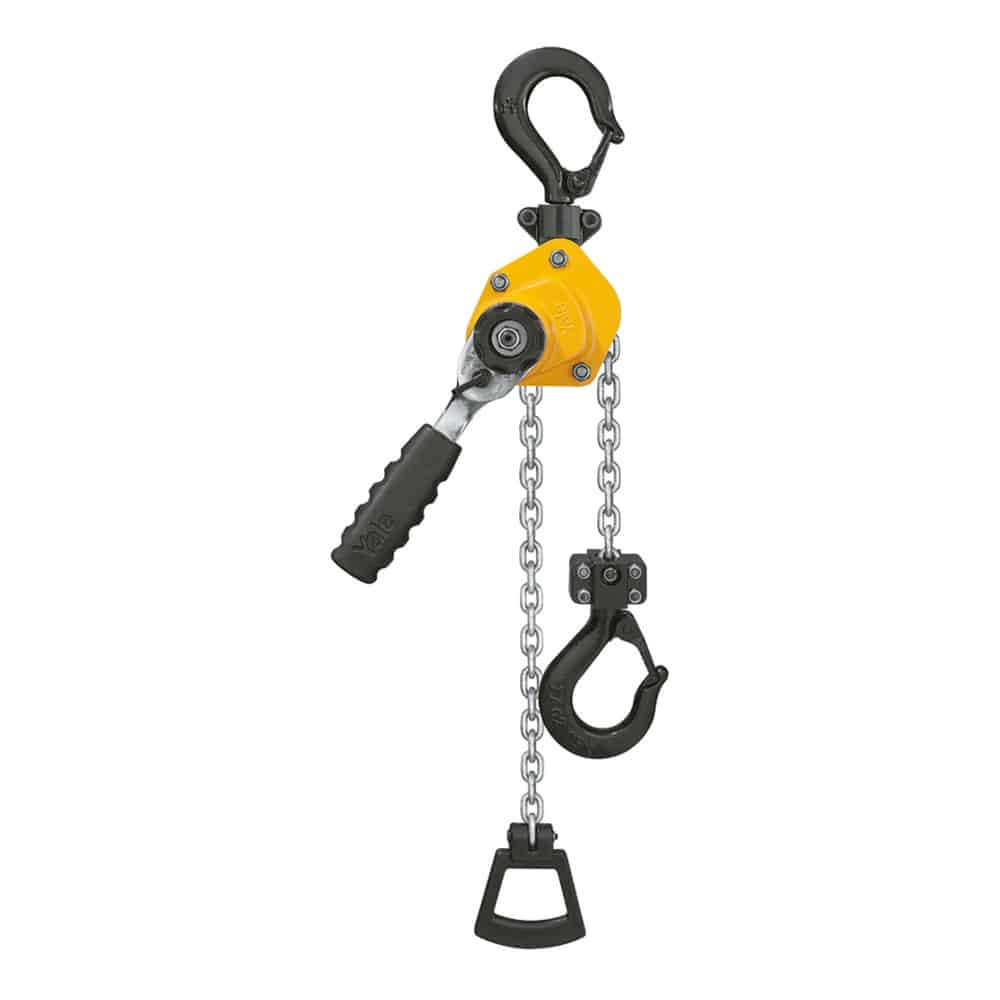

Yale Yalehandy 500 kg Compact Ratchet Lever Hoist

Yale Yalehandy 500 kg Compact Ratchet Lever Hoist

Part no. YALE-YALEHANDY-500
£149.00£124.17Inc VATEx VAT
£124.17 ex VAT£149.00 inc VAT ·
Lift Height: choose one

About this item

  • Ultra-compact ratchet lever hoist, 500kg
  • Just 2.8kg, enclosed housing with disc load brake
  • Free-chaining; for technicians, fitters and electricians

Product description

The Yale Yalehandy 500 kg packs twice the capacity of the 250 kg version into a compact 2.8 kg hoist. It is part of the Yalehandy range, Yale's smallest ratchet lever hoists, built for technicians and fitters working in confined spaces.

An enclosed housing protects the disc brake, free-chaining speeds up hook-up, and the short rubber-gripped lever needs only 25 daN at full load.

Key Features
  • Just 2.8 kg with 1.5 m of chain
  • Enclosed housing keeps dirt and moisture out
  • Short lever with rubber grip, 25 daN pull at full load
  • Corrosion-protected disc-type load brake
  • Free-chaining for quick hook-up in either direction

Specifications

ModelYalehandy 500
Article no.N02300070
Capacity500 kg
Chain falls1
Chain d x p4 x 12 mm (V)
Lift per lever turn40 mm
Handle pull at WLL25 daN
Min. headroom A282 mm
Hook opening C24 mm
Handle length E160 mm
Weight (1.5 m lift)2.8 kg
HooksForged high-tensile steel with safety latches
MarkingCE and UKCA
What's Included
  • 1 x Yale Yalehandy 500 kg with 1.5 m or 3 m load chain
  • Declaration of Conformity

For smaller, lighter jobs there is the Yalehandy 250 kg, and from 750 kg the Yale UNOplus-A, whose models above 750 kg are rated for load securing.

Documents (1)

View on this page or download.

PDFDatasheet
PDF document

Using and looking after it

Always read the manufacturer’s instructions before use. See the documents

Using it safely
  • Never lift people with a hoist built only for goods.
  • Hang it from a suitable, rated anchor point, such as a beam clamp, trolley or lifting eye, and keep the load directly below the hoist.
  • Operate it by hand only. Never extend a lever hoist's handle or use more than one person on the hand chain to force it.
  • Check it before every use: the brake holds the load, the hooks and latches are undamaged, and the load chain is not twisted, stretched or worn.
  • Inspection: under LOLER, lifting equipment needs a thorough examination by a competent person at least every 12 months.
Typical Applications
  • Cable pulling and conductor tensioning
  • Positioning equipment in tight plant rooms
  • Vehicle and machinery servicing
  • Fence and wire tensioning
  • Building services and light fabrication

Buying guide

Choosing the right manual hoist
  • Chain block or lever hoist. A hand chain hoist (chain block) is for vertical lifting from a fixed point above the load. A lever hoist is compact and can pull in any direction, so it also suits tensioning, pulling and positioning.
  • Capacity. Choose a hoist rated for more than the heaviest load, including any lifting accessories hanging from the hook.
  • Height of lift. The chain must reach from the suspension point to the load at its lowest position. Longer chain can usually be supplied to order.
  • Headroom. Check the closed height (hook to hook at the shortest) fits the space between the suspension point and the top of the load.

Questions and answers

Q: Can I use it to secure loads in transit?

A: No. Yale rate only lever hoists above 750 kg for load securing to EN 12195. Use a UNOplus-A or C85/D85 for that.

Q: How much does it weigh?

A: 2.8 kg including 1.5 m of chain.

Q: 250 kg or 500 kg?

A: The 250 kg is the smallest and lightest, with 80 mm lift per lever turn. The 500 kg doubles capacity at 2.8 kg, with 40 mm per turn.
