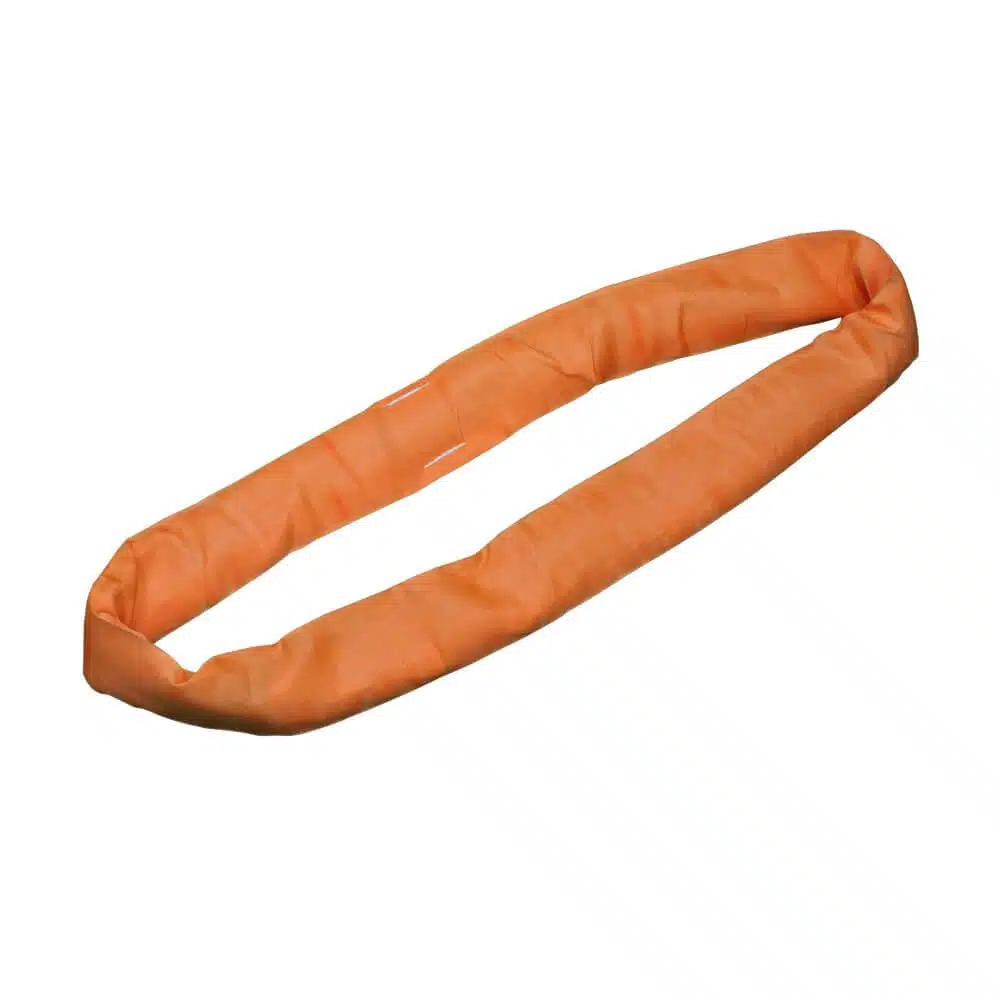

The 10 Tonne Round Sling is an endless-loop lifting sling made from continuous strands of high-tenacity polyester yarn in a colour-coded tubular woven sleeve, manufactured to BS EN 1492-2:2000. The orange-coded sling provides a Working Load Limit of 10,000 kg in a straight lift, rising to 20,000 kg in a basket hitch, and flexes in any direction to conform to cylindrical, curved and irregular loads. The protective sleeve shields the core from abrasion and UV degradation; available in effective working lengths from 1m to 10m.
Key Features
- Manufactured to BS EN 1492-2:2000 - produced from 100% high-tenacity polyester, tested and certified to the European harmonised standard for textile round slings
- Endless loop construction - continuous polyester yarn core inside a protective tubular sleeve provides exceptional strength with multi-directional flexibility
- Orange colour-coded for 10 Tonne WLL - instant visual identification of Working Load Limit in accordance with the international colour standard
- Protective tubular sleeve - the outer woven polyester cover protects the load-bearing core from abrasion, cuts, UV degradation, and contamination while remaining soft against the load
- 20,000 kg capacity in basket hitch - in a basket configuration the effective WLL doubles, providing significant versatility for heavier loads
- 7:1 safety factor - minimum core breaking strength of 70,000 kg, with the outer sleeve rated to withstand at least twice the WLL before rupture
- Conforms to any load shape - the tubular construction flexes in any direction, naturally wrapping around cylindrical, curved, and irregularly shaped loads for a secure grip
- Superior choke performance - forms a tighter, more even choke hitch than flat webbing slings, particularly effective on pipes, drums, and cylindrical loads
- Lightweight and easy to handle - significantly lighter than chain or wire rope slings of equivalent capacity, reducing manual handling strain during rigging
- Blue identification label - individually serialised with WLL, EWL, mode factors, and manufacturer details for full LOLER traceability
Technical Specifications
| Specification |
Value |
| Working Load Limit (WLL) |
10,000 kg (10 Tonne) |
| Colour Code |
Orange |
| Construction |
Endless loop - polyester core in tubular sleeve |
| Core Material |
100% high-tenacity polyester yarn |
| Sleeve Material |
Woven polyester tubular cover |
| Safety Factor |
7:1 |
| Minimum Breaking Strength |
70,000 kg |
| Temperature Range |
-40°C to +100°C |
| Standard |
BS EN 1492-2:2000 |
| Directive |
Machinery Directive 2006/42/EEC |
CE Marked, UKCA Compliant & BS EN 1492-2 Certified
This product is CE marked in accordance with EU Machinery Directive 2006/42/EEC and is UKCA compliant for the Great Britain market. Manufactured to the performance requirements of BS EN 1492-2:2000 with a 7:1 safety factor - the minimum breaking strength of the core is seven times the stated Working Load Limit, and the outer sleeve must not rupture below twice the WLL. Each sling is individually serialised and supplied with full traceability documentation including an EC Declaration of Conformity. Following Brexit, the UK government has confirmed indefinite recognition of CE marking for lifting equipment in Great Britain.
More About This Product
10 Tonne Round Sling is an endless-loop lifting sling constructed from continuous strands of high-tenacity polyester yarn encased in a durable, colour-coded tubular woven polyester sleeve. Manufactured to BS EN 1492-2:2000, the orange-coded sling provides a Working Load Limit of 10,000 kg in a straight lift - rising to 20,000 kg in a basket hitch configuration. The endless tubular construction allows the sling to flex in any direction, conforming naturally to cylindrical, curved, and irregularly shaped loads. The protective outer sleeve shields the load-bearing polyester core from abrasion, UV degradation, and surface damage, while the soft material protects the load from scratching and marking. Orange colour-coded for instant WLL identification in accordance with the international colour standard. Each sling is individually serialised with a blue identification label. Available in effective working lengths (EWL) from 1m to 10m.
Selecting Between Round Slings, Duplex Slings, and Chain at 10 Tonnes
- Choose round slings when - the load is cylindrical, curved, or irregular in shape; you need maximum flexibility to rig around awkward geometries; the load requires soft, non-marking contact; or weight savings are important for manual rigging at height.
- Choose duplex webbing slings when - the load is flat-sided (beams, panels, pallets); you need a wide, flat bearing surface to distribute pressure; you want the easiest visual inspection of the load-bearing material; or the load has clearly defined flat lifting points.
- Choose chain slings when - the load is hot (above 100°C); the environment is chemically aggressive; the sling will contact sharp edges that cannot be protected; or the application requires permanent rigging that will remain attached to the load long-term.
- Cost comparison - at 10 tonne capacity, round slings and duplex slings are significantly less expensive than chain slings. Webbing slings also have lower inspection costs because damage is visually obvious, whereas chain requires close physical examination of each link.
- Weight comparison - a 10 tonne round sling weighs a fraction of an equivalent chain sling. This dramatically reduces manual handling strain during rigging and de-rigging, which is particularly important for repeated lifts and at-height operations.
- Hybrid approach - many contractors use chain for the top connection (hook to lifting beam) and round slings for the bottom connection (beam to load). This combines the durability and heat resistance of chain with the surface protection of webbing at the load contact points.
Certification and Compliance
This product is CE marked in accordance with EU Machinery Directive 2006/42/EEC and is UKCA compliant for the Great Britain market. Manufactured to the performance requirements of BS EN 1492-2:2000 - the European harmonised standard for textile round slings used in general purpose lifting operations. Each sling is produced with a 7:1 safety factor, individually serialised, and supplied with full traceability documentation including an EC Declaration of Conformity. All lifting equipment used on UK construction sites must comply with the Lifting Operations and Lifting Equipment Regulations 1998 (LOLER) and the Provision and Use of Work Equipment Regulations 1998 (PUWER).
Safety Information
- Never exceed the rated Working Load Limit (WLL) for the selected hitch configuration. A choke hitch reduces the WLL to 8,000 kg.
- Inspect the sling before every use. Check the outer sleeve for cuts, tears, abrasion, and holes. If the inner core yarns are exposed, remove from service immediately.
- Do not use round slings on sharp-edged loads without protective wear sleeves - sharp edges can cut through the outer sleeve and damage the core.
- Do not knot or twist the sling to shorten it. Knotting damages the core yarns and dramatically reduces the WLL.
- Position the choke point at the natural 120° angle. Forcing a tighter choke generates friction that can damage the sleeve and reduce capacity.
- Do not expose polyester round slings to strong alkalis, concentrated acids, or temperatures above 100°C.
- Never stand under a suspended load. Maintain exclusion zones during all lifting operations.
- A risk assessment must be in place before any lifting operation. Operation only by competent persons trained in sling use and rigging techniques.
Sling type is chosen by what the load will do to it: chain tolerates heat and sharp edges, webbing is lighter and kinder to finished surfaces. Rated capacity assumes the angle on the tag — see also shackles and chain and fittings for the connections.
Inspection and Maintenance
Round slings must be visually inspected before each use and undergo a thorough examination at least every six months by a competent person under LOLER 1998. Inspection must cover the full circumference of the outer sleeve on all sides, paying particular attention to bearing points where the sling contacts the load. Key indicators of damage include: cuts, tears, or holes in the outer sleeve; exposed core yarns; lumps, hard spots, or unevenness in the core; abrasion wear or thinning of the sleeve; discolouration from chemical or heat exposure; and damage to or illegibility of the identification label. Any round sling showing signs of damage must be removed from service immediately. Round slings cannot be field-repaired - damaged slings must be cut and disposed of to prevent re-use.
Frequently Asked Questions
Q: What does EWL mean and how does it relate to circumference?
EWL stands for Effective Working Length - the usable length of the sling when laid flat. Because a round sling is an endless loop, the EWL is exactly half the total circumference. For example, a 3m EWL round sling has a 6m total circumference. All sizes listed on this page are EWL measurements. The circumference shown on the sling's identification label will be double the EWL you select.
Q: What colour is a 10 tonne round sling?
Orange. Under BS EN 1492-2, orange indicates 10 tonne WLL and above. Always check the blue identification label to confirm the exact WLL - 10T and 12T slings share the same colour.
Q: What is the breaking strength of a 10 tonne round sling?
The minimum core breaking strength is 70,000 kg (70 tonnes) with a 7:1 safety factor. The outer sleeve must withstand at least 20,000 kg before rupture.
Q: When should I choose a round sling over duplex at 10 tonnes?
Choose round slings for cylindrical or irregular loads, when multi-directional flexibility is needed, when weight savings matter for manual rigging, or when a tighter choke hitch is required. Choose duplex for flat-sided loads where a wide bearing surface is beneficial.
Q: What is the basket hitch capacity?
In a basket hitch, the effective WLL doubles to 20,000 kg. This allows a pair of 10 tonne round slings to handle very heavy loads that would otherwise require chain, while still providing surface protection.
Q: Do I need a formal lifting plan?
For routine lifts of known loads, a generic risk assessment is usually sufficient. For non-routine, complex, or tandem lifts at 10 tonne capacity, a formal lifting plan prepared by the Appointed Person is recommended.
Q: Can 10 tonne round slings be used for modular construction?
Yes. Prefabricated building modules, bathroom pods, and service risers weighing up to 10 tonnes require soft slings to protect finished surfaces. Round slings' flexibility allows them to be rigged in tight spaces around completed modules.
Q: What is the hybrid rigging approach?
Many contractors use chain for the top connection (hook to lifting beam) and round slings for the bottom connection (beam to load). This combines chain's durability with webbing's surface protection at the load contact points.
