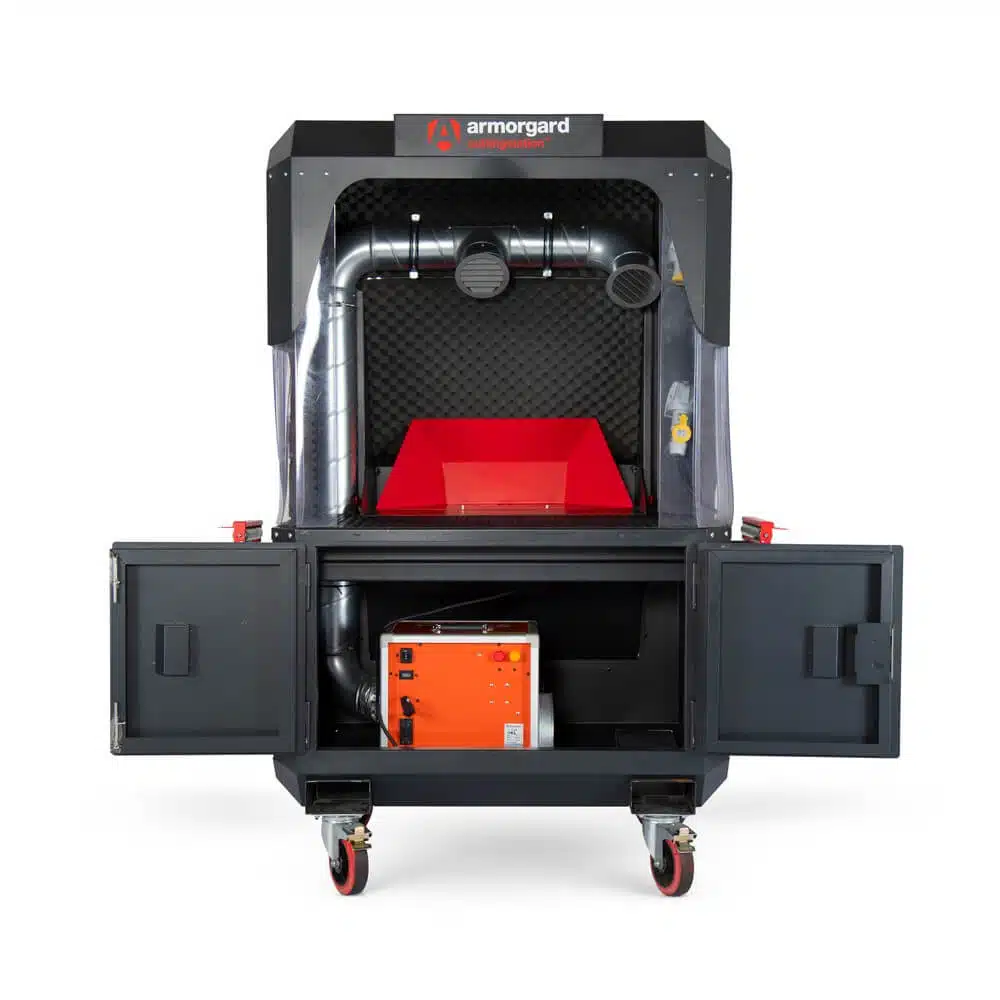

The Armorgard CuttingStation Xtract SS7X-240 is an advanced mobile cutting workstation with integrated dust extraction and air filtration, adding the Husqvarna Aircube A1000 — one of the most advanced portable air scrubbers available — to the proven SS7 platform. The HEPA H13 filtration system is tested and certified at 99.99% efficiency at 0.3 microns, making this the safest choice for cutting materials on site. Fire-rated sound-deadening foam reduces noise by up to 20dB, with PVC spark curtains and a secure lockable cabinet completing the package.
Key Features
- Husqvarna Aircube A1000 Extraction - one of the most advanced portable air scrubbers available. Functions as both an air scrubber and negative air machine with ducting to capture dust directly at the cutting point.
- HEPA H13 Filtration - tested and certified at 99.99% efficiency at 0.3 microns. Effectively captures concrete dust, fine sanding dust, and gypsum dust with two warning lights indicating when filters are clogged or leaking.
- Fire-Rated Sound-Deadening Foam - reduces noise pollution by up to 20dB, significantly improving workplace noise exposure compliance and protecting nearby workers.
- PVC Spark Curtains - contain sparks and debris during cutting, protecting nearby workers and reducing fire risk on site.
- Rubber Vibration Mat - reduces vibration transmitted to the operator, improving comfort and removing the trip hazard of cutting on the floor.
- Extendable Back Panel - provides additional workspace to accommodate mitre saws and larger metal cut-off saws.
- Four-Configuration Support Arms - extendable arms with flat rest, V-shaped holder for round materials, roller support, and stop configuration for versatile material handling.
- Chamfered Corners - further reduce noise reflection and improve acoustic performance.
- Cutaway Sides - allow easier handling of longer lengths of material during cutting.
- Integrated 240V Power - recessed inlet socket connects to site power. Two 240V outlets inside power your cutting tools.
- LED Work Light - built-in lighting provides visibility in all conditions.
- Secure Lockable Cabinet - spacious storage beneath the work surface with 5-lever deadlock keeps tools and equipment safe.
- Heavy-Duty Castors Fitted as Standard - 6" rubberised swivel wheels (2 braked) for easy site mobility.
- Forklift Pockets - integrated skids for crane or forklift positioning.
Technical Specifications
| Specification |
Value |
| Model |
SS7X-240 |
| External Dimensions (W x D x H) |
1390 x 750 x 1900mm (standard) / 1390 x 1020 x 1900mm (extended) |
| Internal Dimensions - Top (W x D x H) |
1140 x 1020 x 960mm (with extended back) |
| Internal Dimensions - Cabinet (W x D x H) |
1135 x 710 x 550mm |
| Weight |
200kg |
| Weight Load Capacity |
800kg total / 50kg per support arm |
| Power Supply |
240V, 16A inlet |
| Power Outlets |
2 x 240V, 16A sockets |
| Lighting |
240V LED work light (included) |
| Extraction Unit |
Husqvarna Aircube A1000 |
| Filtration |
HEPA H13 (99.99% efficiency at 0.3 microns) |
| Noise Reduction |
Up to 20dB |
| Material |
Steel and aluminium |
| Finish |
Powder coated and aluminium |
| Colour |
Black Grey (RAL 7021) / Traffic Red (RAL 3020) |
| Locking |
5-lever deadlock |
| Keys Supplied |
2 |
| Castors |
Heavy-duty 6" rubberised swivel castors (2 braked) - fitted as standard |
| Warranty |
12 months |
HEPA H13 Certified Filtration & 12-Month Warranty
The integrated Husqvarna Aircube A1000 features HEPA H13 filtration tested and certified at 99.99% efficiency at 0.3 microns, suitable for concrete dust, fine sanding dust, and gypsum dust. This product is protected by European Patent Application Number EP17183824.6. Covered by Armorgard's 12-month manufacturer warranty. All electrical components must be PAT tested at least every 3 months.
More About This Product
The Armorgard CuttingStation Xtract SS7X-240 is an advanced mobile cutting workstation with integrated dust extraction and air filtration. Building on the proven SS7 platform, the Xtract version adds the Husqvarna Aircube A1000 - one of the most advanced portable air scrubbers available - to extract dust and respirable particulates created during cutting operations. The HEPA H13 filtration system is tested and certified at 99.99% efficiency at 0.3 microns, making this the safest choice for cutting materials on site. Combined with fire-rated sound-deadening foam that reduces noise by up to 20dB, PVC spark curtains, and a secure lockable cabinet, the SS7X-240 provides a complete cutting solution for sites where dust control and operator health are paramount.
Suitable Applications
The CuttingStation Xtract SS7X-240 is the safest choice for sites where dust control and operator health are paramount. Ideal for cutting concrete, masonry, and materials that generate respirable crystalline silica (RCS) dust, as well as general cutting of conduit, timber, cable tray, and pipe. The HEPA H13 filtration makes it suitable for sensitive environments including healthcare refurbishments, occupied buildings, and sites with strict dust control requirements. The 240V power supply makes it ideal for workshops, factories, and sites with standard UK mains power.
Containment reduces spread but does not replace extraction and respiratory protection where dust is generated. See also site workbenches.
How to Use the CuttingStation Xtract SS7X-240
- Position the CuttingStation on level ground and apply both castor brakes before cutting.
- Connect the 240V power inlet on the rear corner to a suitable power supply.
- Power on the Husqvarna Aircube extraction unit and verify filter status indicators show green.
- Extend the back panel if needed by lifting the handles and pushing outward.
- Configure the support arms as required for your material.
- Turn on the work light and mount your cutting tool on the work surface.
- Position materials on the rubber mat and support arms. Cut safely at working height with extraction capturing dust at source.
- Monitor the Aircube filter indicators during operation - warning lights indicate when filters need attention.
- When finished, allow the extraction unit to run for a few minutes to clear residual dust, then power down and lock the cabinet.
Warning:
All relevant PPE must be worn. Apply both brakes whilst cutting. Do not use a dust extraction system whilst cutting aluminium - this presents a fire/explosion risk. All electrical parts must be PAT tested at least every 3 months. Relevant fire extinguishers must be nearby whilst cutting.
Safety Information
- All relevant PPE must be worn when operating cutting equipment - the extraction system supplements but does not replace PPE requirements.
- Apply both castor brakes before commencing any cutting operation.
- Do not use the dust extraction system whilst cutting aluminium - this presents a fire/explosion risk.
- All electrical parts must be PAT tested at least every 3 months.
- Relevant fire extinguishers must be kept nearby whilst cutting.
- Monitor the Aircube filter warning lights - replace filters when indicated to maintain extraction efficiency.
- Take care when moving the rear panel as it can present a finger trap hazard.
- Do not plug extension leads into the sockets provided - this could cause overheating.
Inspection and Maintenance
The CuttingStation Xtract features steel and aluminium construction with a powder-coated finish suitable for site conditions. The Husqvarna Aircube A1000 has two warning lights: one indicates clogged filters requiring replacement, the other indicates filter leakage requiring attention. Replace HEPA H13 filters according to manufacturer guidelines to maintain 99.99% filtration efficiency. Regularly clean the ducting and extraction hood to maintain airflow. All electrical components must be PAT tested at least every 3 months.
What's Included
Each CuttingStation Xtract SS7X-240 is supplied complete with: Husqvarna Aircube A1000 extraction unit with ducting, heavy-duty castors (fitted as standard), swarf collector, rubber mat, 240V power inlet, 2 x 240V power outlets, internal LED work light, support arms, and 2 keys.
Frequently Asked Questions
Q: What is the difference between the SS7 and SS7X?
The SS7X includes the Husqvarna Aircube A1000 extraction and air filtration system with HEPA H13 filters, ducting, and integrated mounting. The standard SS7 has a swarf collector with dust extractor connection point but does not include an extraction unit.
Q: What does the Husqvarna Aircube filter?
The Aircube A1000 features HEPA H13 filtration tested at 99.99% efficiency at 0.3 microns. It effectively captures concrete dust, fine sanding dust, gypsum dust, and other respirable particulates generated during cutting operations.
Q: How much does the CuttingStation Xtract reduce noise?
The fire-rated, sound-deadening foam reduces noise by up to 20dB, significantly improving workplace noise exposure compliance and protecting workers in and around the cutting area.
Q: Do the wheels come fitted on the SS7X?
Yes, the heavy-duty 6" castors are fitted as standard on the SS7X-240. Forklift pockets are also integrated.
Q: Can I use the SS7X for cutting aluminium?
No. Do not use the dust extraction system whilst cutting aluminium as this presents a fire and explosion risk. For aluminium cutting, use the standard SS7 without extraction, or disconnect the Aircube unit.
