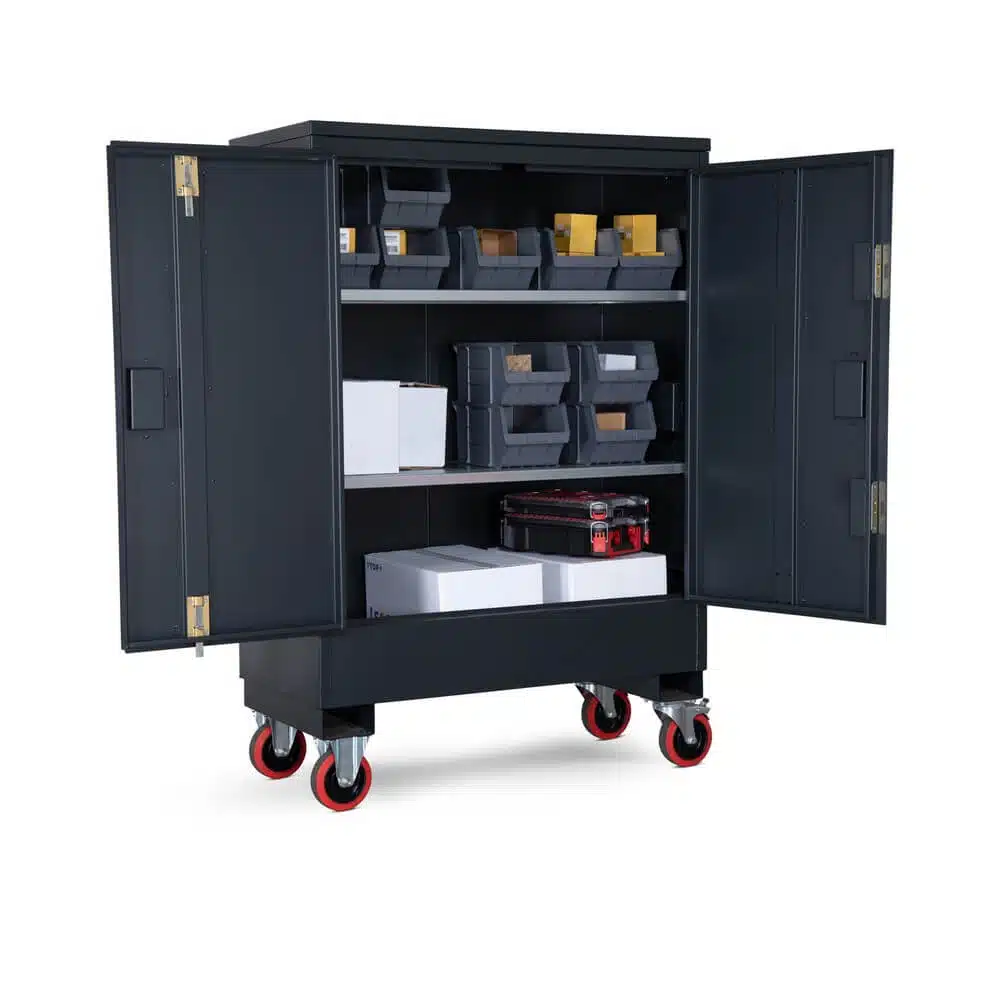

The Armorgard FittingStor FC3 is a large-capacity secure mobile storage cabinet for storing and organising copper fittings, cable and M&E components on busy construction sites. Built from heavy-duty 1.6mm and 2mm powder-coated steel, it features twin keyed-alike 5-lever deadlocks, anti-jemmy door protection, three removable shelves with 15 individual storage bins, and forklift skids for easy site relocation.
Key Features
- Twin 5-lever deadlocks - keyed alike with heavy-duty chubb-style keys and welded serial numbers for security and easy key replacement.
- Anti-jemmy door protection - fixed hinges and secluded anti-jemmy strips prevent forced entry attempts.
- Three removable shelves with 15 storage bins - bins can be stacked and repositioned for comprehensive organisation of fittings, connectors, and small parts.
- Forklift skids - integrated pockets allow transportation via forklift or pallet truck.
- Heavy-duty 6" castors - quick-fix bolt-on castor kit with swivel-braked wheels for site mobility.
- Powder-coated finish - durable black-grey coating (RAL 7021) provides weather and corrosion resistance.
- Large capacity - the most popular FittingStor size, offering generous storage for medium to large M&E teams.
Technical Specifications
| Specification |
FC3 |
| External Dimensions (H x W x D) |
1750 x 1200 x 550 mm |
| Internal Dimensions (H x W x D) |
1460 x 1110 x 490 mm |
| Weight |
139 kg |
| Material Thickness |
1.6mm and 2mm steel |
| Colour |
Black Grey (RAL 7021) |
| Locking |
Twin keyed-alike 5-lever deadlocks |
| Keys Supplied |
3 |
| Shelves Included |
3 removable shelves with welded compartments |
| Storage Bins Included |
15 individual bins |
| Castors |
4 x 6" heavy-duty (quick-fix bolt-on kit) |
| Forklift Skids |
Yes |
| Vehicle Mounting |
No |
All dimensions and weights are approximate.
Secure Site Storage - Serial Numbered & Warranty Protected
Every FittingStor is serial numbered for security and overnight key replacement. Armorgard products are built in the UK and come with a 12-month manufacturer's warranty covering defects in workmanship. Replacement keys and locks are available for up to five years from purchase.
More About This Product
The Armorgard FittingStor FC3 is a large-capacity secure mobile storage cabinet designed for storing and organising copper fittings, cable, and M&E components on busy construction sites. Built from heavy-duty 1.6mm and 2mm powder-coated steel, it features twin keyed-alike 5-lever deadlocks, anti-jemmy door protection, three removable shelves with 15 individual storage bins, and forklift skids for easy site relocation.
Suitable Applications
The FC3 is the most popular model in the FittingStor range, designed for M&E contractors, plumbers, electricians, and HVAC engineers working on commercial construction projects. With three shelves and 15 storage bins, it provides comprehensive organisation for copper pipe fittings, electrical connectors, cable, valves, and small tools. The FC3 is well-suited to multi-storey builds, large fit-out projects, and sites with multiple trades requiring secure, shared storage.
A site box stays put and is sized for a site compound; for tools that travel in a van or on a truck bed see the tool box range, and for flammables or chemicals a site security box adds a liquid-tight sump.
How to Use the FittingStor FC3
- Position the FittingStor on a flat, even surface and engage the castor brakes before loading.
- Load heavier items in the base compartment first, then place lighter fittings on the shelves and in the storage bins.
- Ensure weight is evenly distributed to prevent the unit becoming unstable.
- Secure both 5-lever deadlocks and remove the keys before leaving the unit unattended.
- To relocate, unlock the castor brakes and wheel the unit to its new position, or use a forklift or pallet truck via the integrated skids.
Important:
Always secure all locks and remove keys before lifting the unit. The FittingStor must be empty when being lifted by forklift.
Safety Information
- Carry out a risk assessment before using the FittingStor, including lifting and lowering procedures.
- Two or more people are required to lift or manoeuvre the unit when not using mechanical handling equipment.
- Do not overload the unit or place excessively heavy items on upper shelves.
- Always engage castor brakes when the unit is stationary.
- Check hinges, locks, shelves, and latches every three months or more frequently under rigorous use.
- Do not force entry into the product as this may affect the warranty.
Frequently Asked Questions
Q: What is the FittingStor FC3 designed for?
The FC3 is designed to securely store and organise copper fittings, cable, pipe connectors, and M&E components on construction sites. It is the most popular size in the FittingStor range, offering a balance of capacity and mobility.
Q: How many shelves and bins does the FC3 include?
The FC3 comes with three removable shelves with welded compartments and 15 individual storage bins as standard.
Q: What is the weight capacity of the FC3?
The FC3 is built for site use and can handle typical M&E fittings and components. Always distribute weight evenly and place heavier items in the base compartment to maintain stability.
Q: Can I get replacement keys for the FittingStor?
Yes. Every FittingStor is serial numbered, and Armorgard can cut replacement keys using this serial number. Replacement keys and locks are available for products up to five years old.
