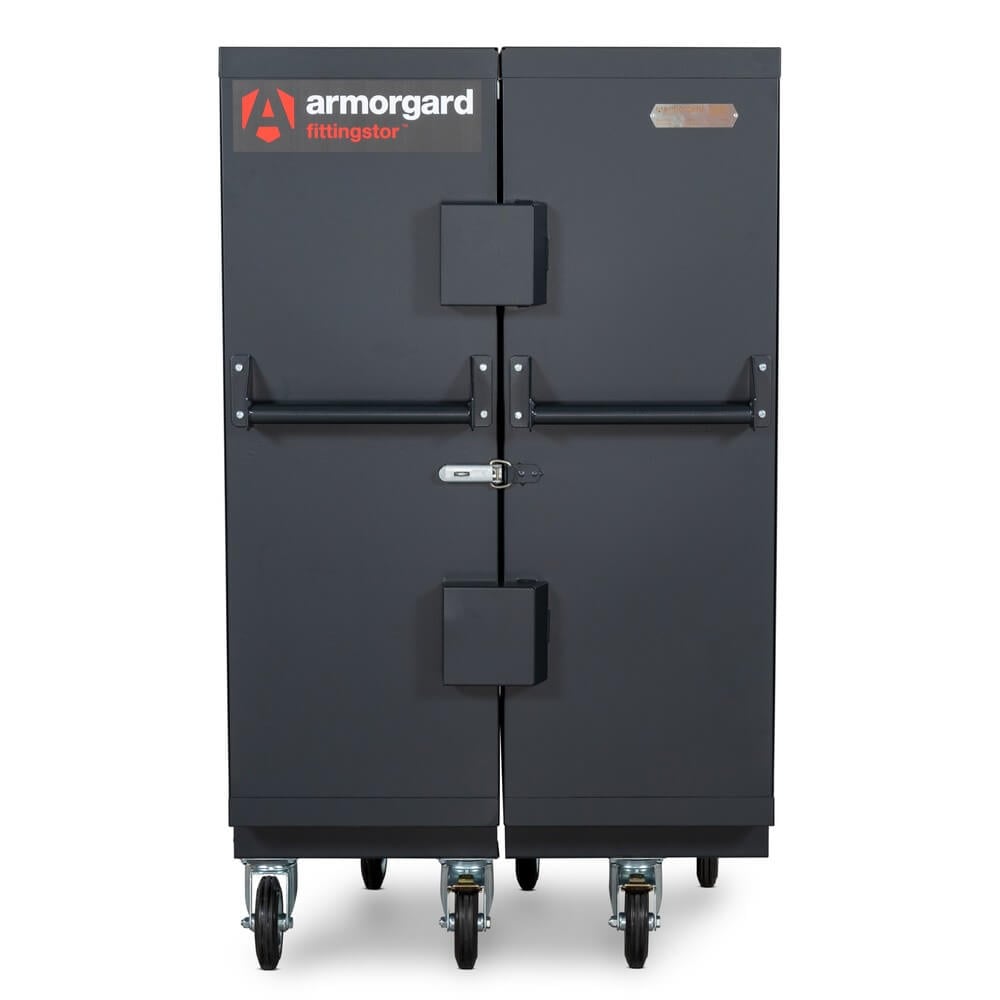

The Armorgard FittingStor FC5 is a unique bi-fold mobile storage cabinet designed for maximum storage capacity in tight spaces — its bi-folding doors open to just 450mm depth, making it ideal for corridors, stairwells and narrow work areas. Built from heavy-duty 1.5mm and 2mm powder-coated steel, it features six welded shelves, hasp and staple padlock points, built-in handles, and forklift skids for easy site relocation.
Key Features

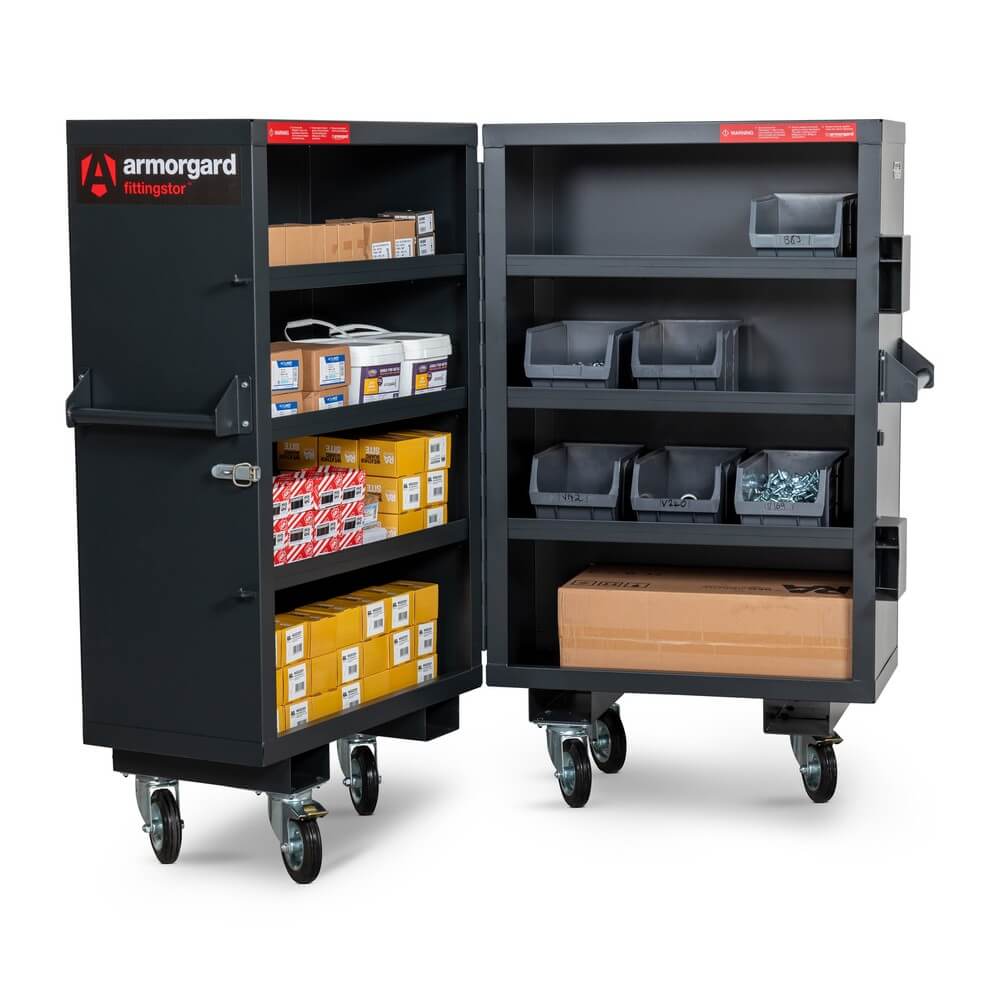

- Bi-fold design - doors open to just 450mm depth, saving space in corridors, stairwells, and tight work areas.
- Six welded shelves - maximum storage capacity with robust, fixed shelving throughout.
- Hasp and staple padlock points - use your own padlocks for flexible security without the need for keys.

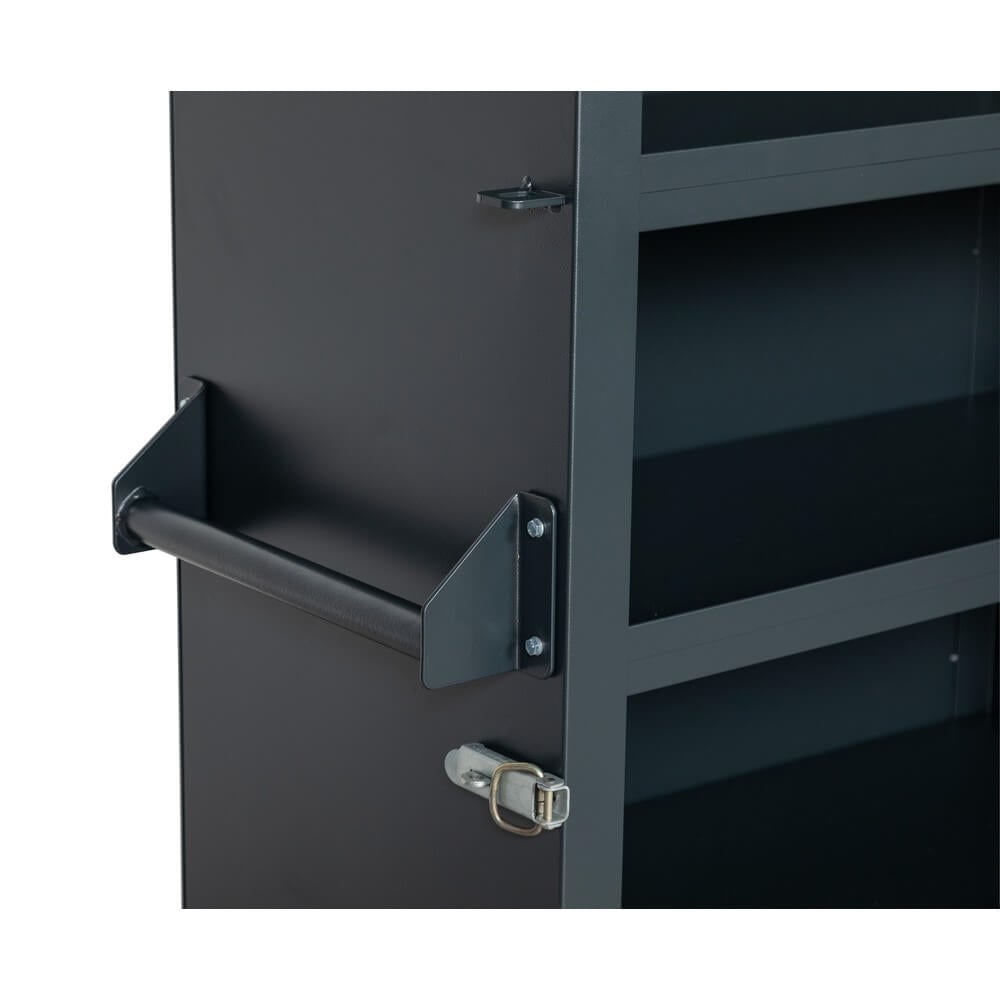

- Built-in handles - ergonomic grab handles for easier manoeuvring around site.
- Six heavy-duty 6" castors - three castors per cabinet section, with swivel-braked wheels for stability and mobility.
- Forklift skids - integrated pockets allow transportation via forklift or pallet truck.
- Powder-coated finish - durable coating (available in black-grey or traffic red) provides weather and corrosion resistance.
- Widest storage footprint - offers the largest internal volume when space is not a constraint.
Technical Specifications
| Specification |
FC5 |
| External Dimensions (H x W x D) |
1375 x 960 x 985 mm |
| Internal Dimensions (H x W x D) |
1290 x 900 x 900 mm |
| Weight |
160 kg |
| Material Thickness |
1.5mm and 2mm steel |
| Colour |
Black Grey (RAL 7021) / Traffic Red (RAL 3020) |
| Locking |
Hasp and staple padlock points (padlock not included) |
| Keys Supplied |
3 |
| Shelves Included |
6 welded shelves |
| Castors |
6 x 6" heavy-duty (quick-fix bolt-on kit) |
| Forklift Skids |
Yes |
| Built-in Handles |
Yes |
| Vehicle Mounting |
No |
All dimensions and weights are approximate.
Secure Site Storage - Serial Numbered & Warranty Protected
Every FittingStor is serial numbered for security and overnight key replacement. Armorgard products are built in the UK and come with a 12-month manufacturer's warranty covering defects in workmanship. Replacement keys and locks are available for up to five years from purchase.
Suitable Applications
The FC5 is designed for M&E contractors working in confined spaces where standard cabinet doors would obstruct access. Its bi-fold mechanism allows the unit to be opened and used in corridors, stairwells, plant rooms, and narrow work areas without blocking passage. With six welded shelves, it offers the highest storage density in the FittingStor range, making it ideal for large-scale fit-out projects with substantial fittings inventory.
A site box stays put and is sized for a site compound; for tools that travel in a van or on a truck bed see the tool box range, and for flammables or chemicals a site security box adds a liquid-tight sump.
How to Use the FittingStor FC5
- Position the FittingStor on a flat, even surface and engage all castor brakes before loading.
- Open the bi-fold doors by releasing the padlocks and folding each door section inward.
- Load heavier items on lower shelves first, ensuring weight is evenly distributed across both cabinet sections.
- Close the bi-fold doors and secure with padlocks (not supplied) before leaving the unit unattended.
- To relocate, unlock all castor brakes and use the built-in handles to wheel the unit, or use a forklift via the integrated skids.
Important:
The FC5 requires specific castor placement - three castors per cabinet section in opposite-facing triangles. Refer to the installation manual for correct setup.
Safety Information
- Carry out a risk assessment before using the FittingStor, including lifting and lowering procedures.
- Two or more people are required to lift or manoeuvre the unit when not using mechanical handling equipment.
- Do not overload the unit or place excessively heavy items on upper shelves.
- Always engage all six castor brakes when the unit is stationary.
- Check hinges, locks, shelves, and latches every three months or more frequently under rigorous use.
- Do not force entry into the product as this may affect the warranty.
Frequently Asked Questions
Q: What makes the FC5 different from other FittingStor models?
The FC5 features a unique bi-fold design where the doors fold inward, reducing the open depth to just 450mm. This makes it ideal for corridors and tight spaces where standard cabinet doors would block access. It also has six welded shelves and uses padlock security rather than key locks.
Q: Does the FC5 come with padlocks?
No. The FC5 has hasp and staple padlock points, but padlocks are not included. This allows you to use your own preferred padlocks and eliminates the need for multiple keys on site.
Q: Why does the FC5 have six castors instead of four?
The FC5's bi-fold design means it is effectively two cabinet sections that fold together. Each section requires three castors (in a triangular arrangement) for stability when open and closed.
Q: Is the FC5 weatherproof?
The FC5 features a powder-coated finish which provides rust resistance and durability against the elements. It is suitable for outdoor site use but is not fully waterproof.
