Armorgard InstaGate IG4
1 / 12

Armorgard InstaGate IG4

Part no. ARMIG4
£830.40£692.00Inc VATEx VAT
£692.00 ex VAT£830.40 inc VAT ·

About this item

  • 4ft expandable safety barrier for quick deployment
  • Cordons off restricted areas and separates pedestrians from plant
  • 1.5mm powder-coated aluminium and nylon; braked wheels and latching system

Product description

The Armorgard InstaGate IG4 is a 4 ft expandable safety barrier for quick, lower-height segregation: wet floors, warehouse walkways, queue lines and temporary work zones.

It extends to 2,160 mm, folds to 405 x 520 mm and weighs 30 kg, 8 kg less than the 6 ft IG6, so it is easy to move between jobs.

Key Features
  • 1,335 mm (4 ft) high, extends to 2,160 mm and folds to a 405 x 520 mm footprint

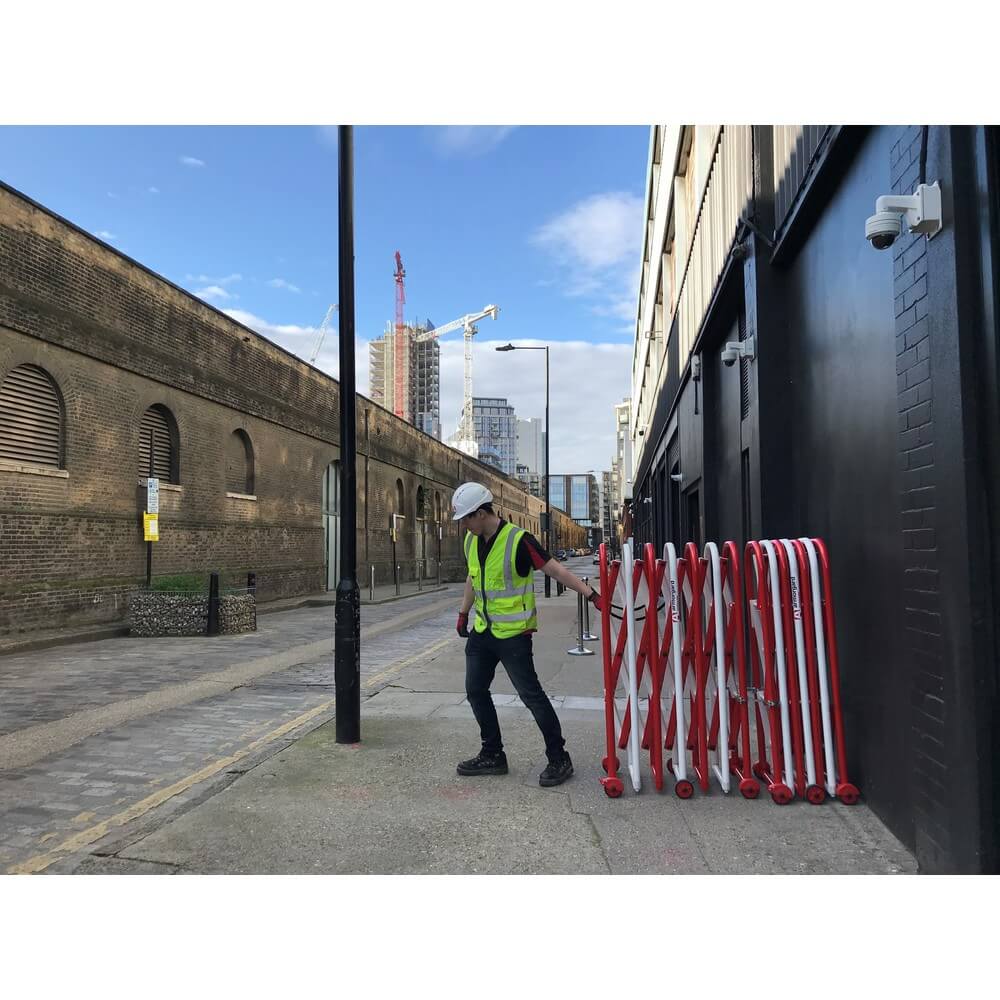

  • Single-person deployment on braked wheels

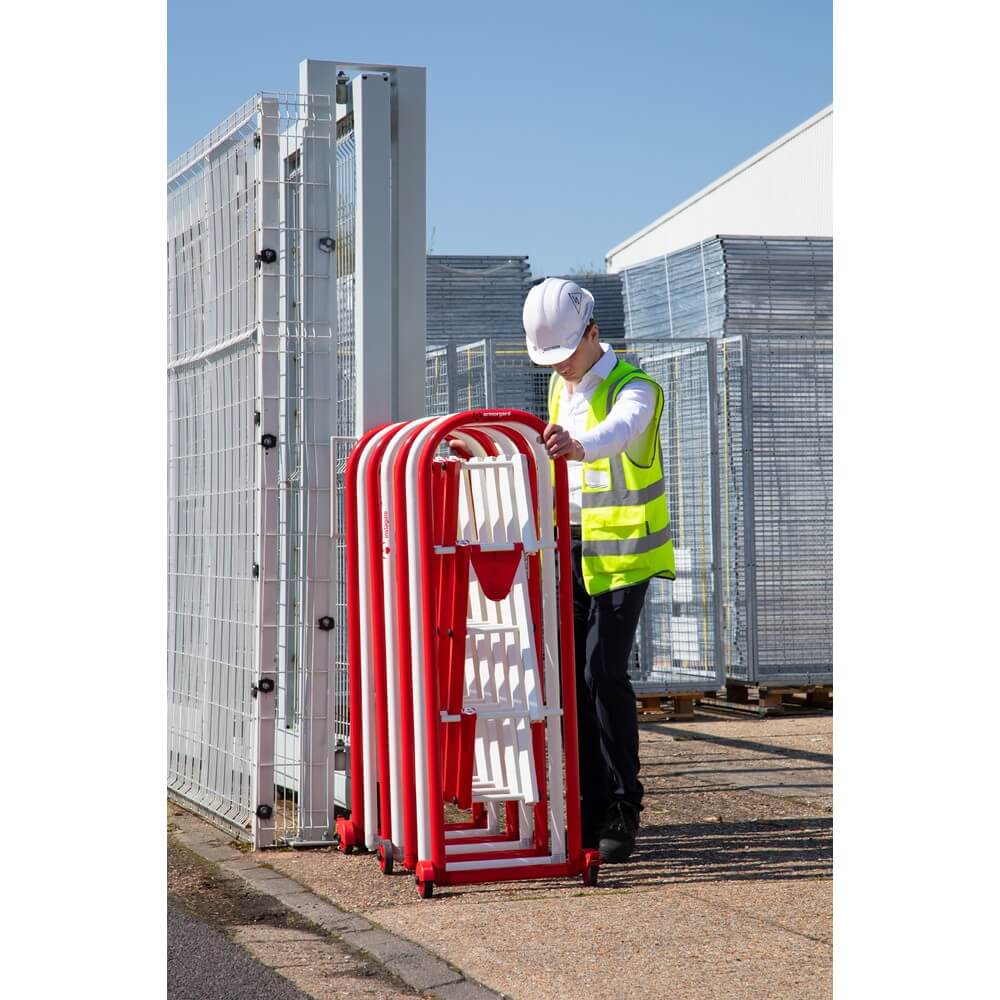

  • Latch holds it closed for storage and transport
  • No detachable parts to lose on site
  • Links to further InstaGates at any angle with the IGL1 kit

Specifications

Height1,335 mm (4 ft)
Extended length2,160 mm
Collapsed footprint (W x D)405 x 520 mm
Weight30 kg
Upright tube40 mm diameter, about 275 mm centres (datasheet drawing)
Material1.5 mm aluminium and nylon
ColourTraffic red (RAL 3020) / signal white (RAL 9003)
FinishPowder coated, weatherproof
WheelsBraked
Detachable partsNone
UseIndoor and outdoor
Warranty12 months (Armorgard terms)
What's Included
  • InstaGate IG4 barrier, ready to use

Optional extras from Armorgard: IGL1 linking kit and IGA1 anchor kit (ask us to add them to your order).

Documents (1)

View on this page or download.

PDFDatasheet
PDF document

Using and looking after it

Always read the manufacturer’s instructions before use. See the documents

Typical Applications
  • Indoor work zones and wet-floor areas
  • Warehouse pedestrian routes
  • Queue management
  • Fit-out and maintenance areas

Buying guide

Design & Construction

The InstaGate is a lazy-tong (scissor) barrier: 40 mm uprights joined by pivoting cross members, so it concertinas closed and pulls out to full length in one movement. Frame and links are 1.5 mm aluminium and nylon, powder coated in traffic red and signal white for visibility indoors or out.

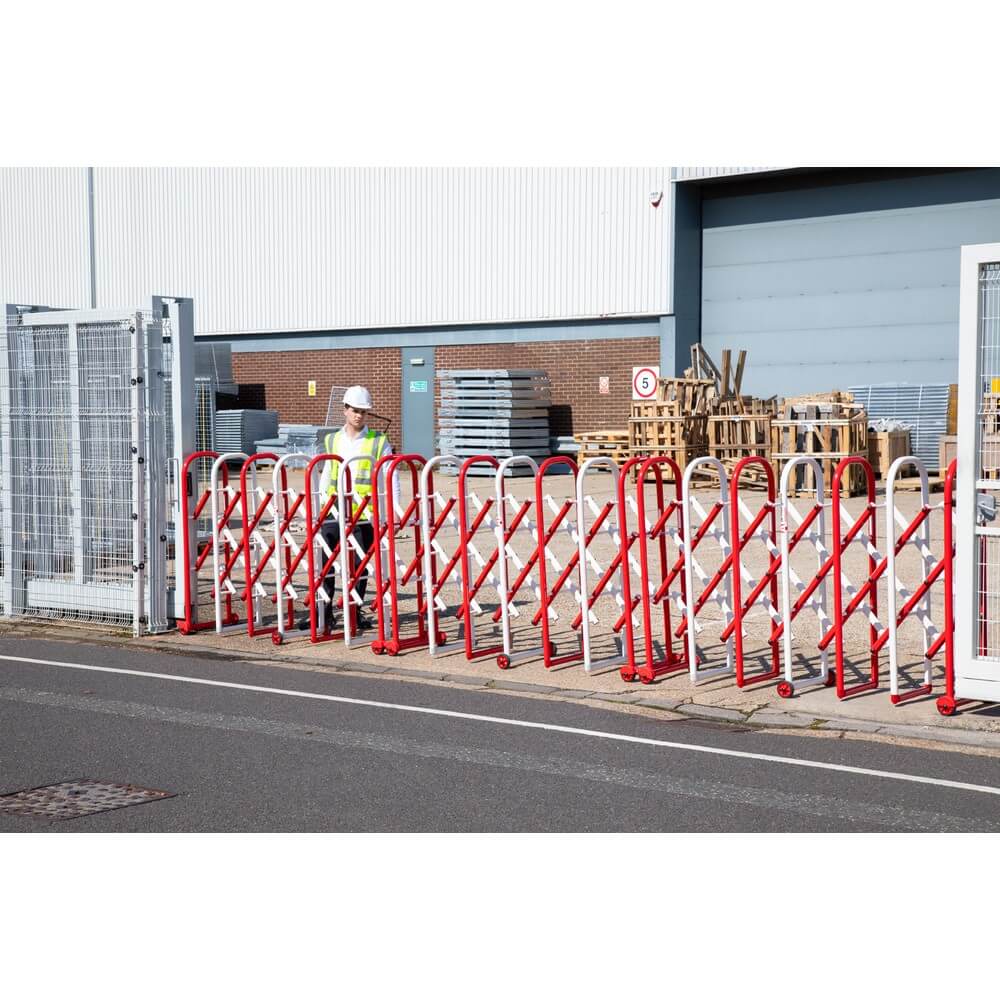

Braked wheels let one person roll it into place and lock it there. The IGL1 linking kit joins barriers at any angle for longer runs, the IGA1 anchor kit fixes one to a flat surface or hoarding, and standard scaffold clamps can tie it to scaffolding.

Choosing the Right Model
Model Height Extended length Weight Best suited to
IG6 1,900 mm (6 ft) 2,330 mm 38 kg Excavations, delivery routes, lifting exclusion zones
IG4 1,335 mm (4 ft) 2,160 mm 30 kg Indoor and lower-risk zones, walkways, queue lines

Questions and answers

Q: Can I link IG4 and IG6 barriers together?

A: Both use the same IGL1 linking kit, so mixed-height runs are possible. Confirm with us if you need it for a specific layout.

Q: Can one person put it out?

A: Yes. At 30 kg it rolls on its braked wheels and the scissor frame pulls out by hand.

Q: Can I join several together?

A: Yes, with the IGL1 linking kit, which lets barriers meet at any angle.
