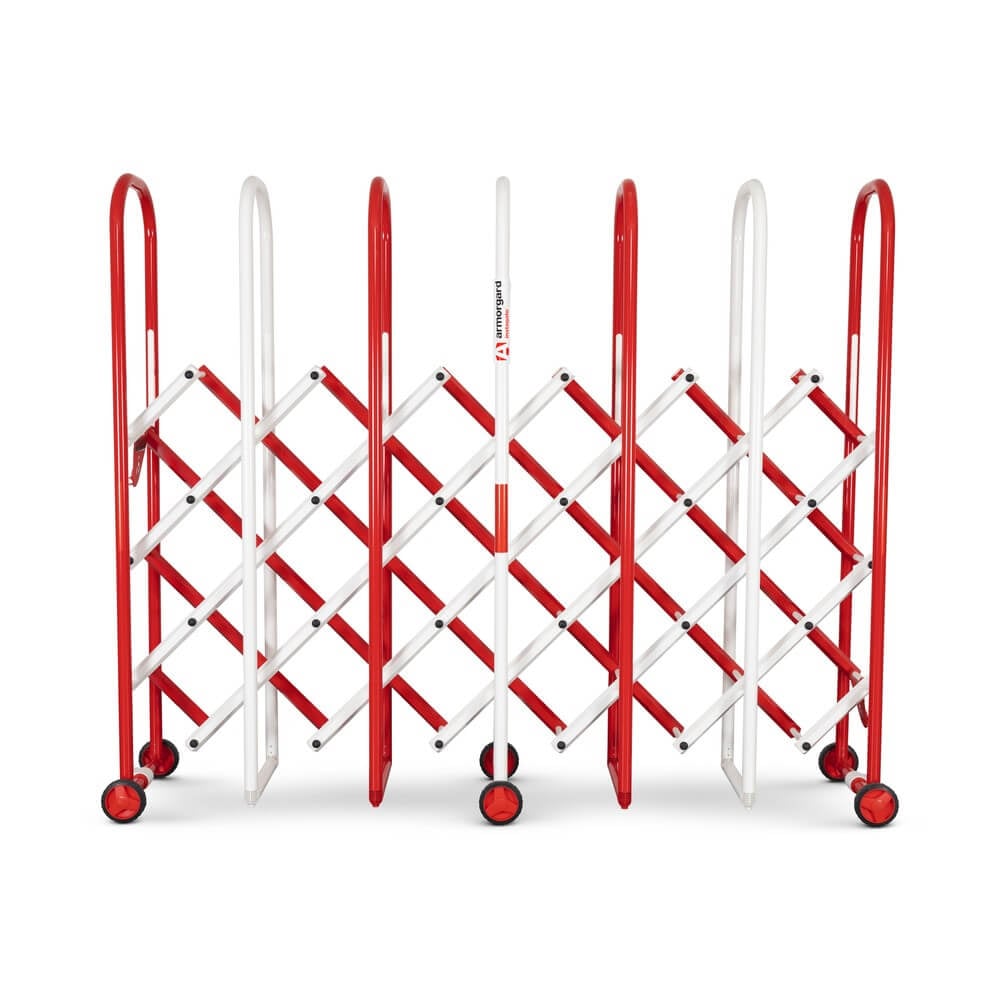

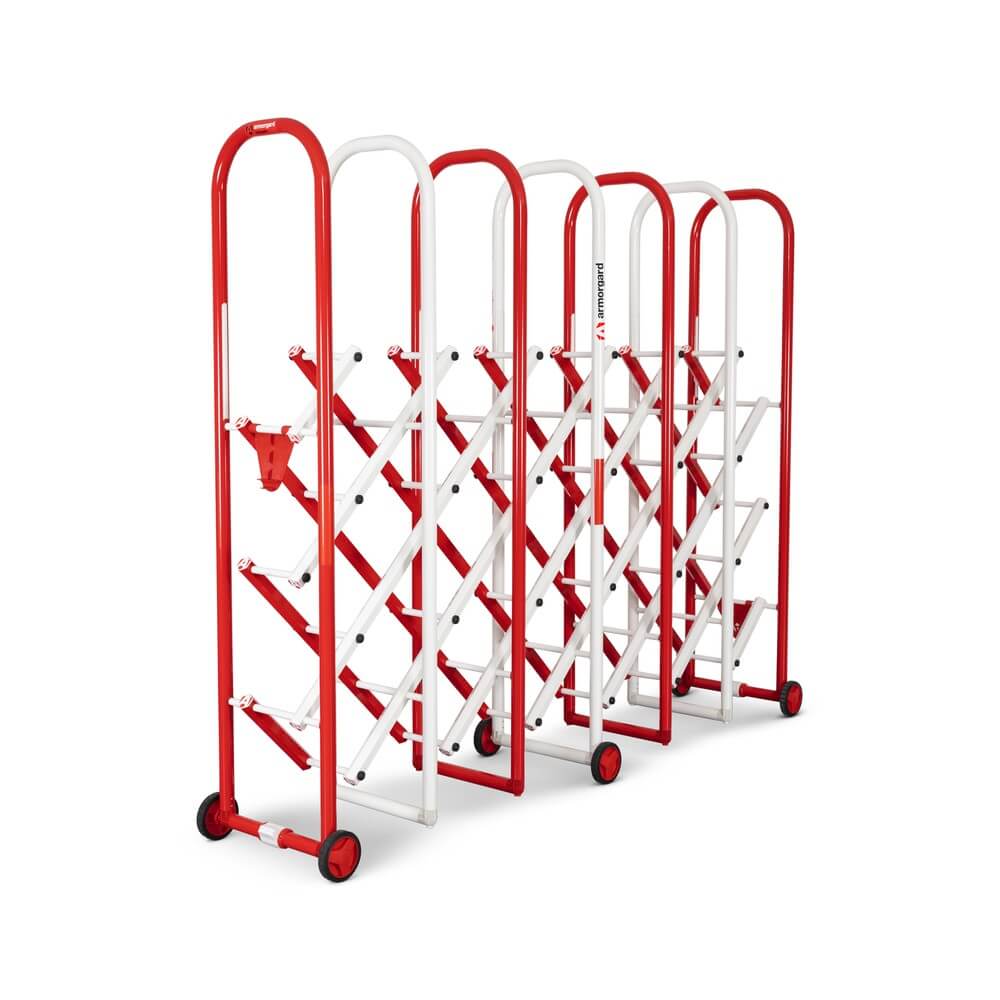

The Armorgard InstaGate IG6 is a 6ft expandable safety barrier for quick deployment — cordoning off restricted areas and separating pedestrian traffic from plant operations. Lightweight yet ultra-strong, it is constructed from 1.5mm powder-coated aluminium and nylon with robust braked wheels for easy movement and a unique latching system that secures the barrier when collapsed. The highly visible red and white finish is weatherproof for indoor and outdoor use, and multiple units link together with the linking kit to create extended barrier runs at any angle.
Key Features
- Deploys in seconds - single-person operation allows rapid cordoning of restricted areas without assistance.
- 6ft height - taller barrier provides enhanced visibility and more effective segregation of pedestrians from plant and vehicle traffic.
- Robust braked wheels - easy to push or pull into position, with powerful brakes to hold the barrier securely in place.
- Unique latching system - secures the barrier in closed position when collapsed for safe storage and transport.
- Extendable to any length - multiple IG6 units can be linked together using the linking kit (IGL1) to create longer barrier runs.
- Pivots at any angle - linking kit allows barriers to connect at any required angle for flexible site layouts.
- Anchor kit available - anchor kit (IGA1) secures the barrier to flat surfaces or hoarding for enhanced stability.
- No detachable parts - eliminates the risk of lost components on busy sites.
- Lightweight aluminium construction - 38kg weight allows easy movement while maintaining strength and durability.
- Highly visible finish - red and white powder-coated markings are weatherproof for indoor and outdoor use.
- Scaffold clamp compatible - can be fitted with standard scaffold clamps to fix to scaffolding or create corner configurations.
Technical Specifications
| Specification |
IG6 |
| Height |
1900 mm (6ft) |
| Extended Length |
2330 mm |
| Collapsed Dimensions (W x D) |
520 x 410 mm |
| Collapsed Width |
325 mm |
| Tube Diameter |
40 mm |
| Weight |
38 kg |
| Material |
1.5mm Aluminium and Nylon |
| Colour |
Traffic Red (RAL 3020) / Signal White (RAL 9003) |
| Finish |
Powder coated (weatherproof) |
| Wheels |
Robust braked wheels |
| Collapsible |
Yes |
| Detachable Parts |
None |
| Suitable for Site |
Yes - indoor and outdoor use |
All dimensions and weights are approximate.
Site Safety - No Detachable Parts & 12-Month Warranty
The InstaGate IG6 features no detachable parts, eliminating the risk of components being lost or removed on site. Armorgard products are built in the UK and come with a 12-month manufacturer's warranty covering defects in workmanship.
More About This Product
The Armorgard InstaGate IG6 is a 6ft expandable safety barrier designed for quick deployment to cordon off restricted areas and separate pedestrian traffic from plant operations. Lightweight yet ultra-strong, the IG6 is constructed from 1.5mm powder-coated aluminium and nylon, featuring robust braked wheels for easy movement and a unique latching system that secures the barrier when collapsed. The highly visible red and white finish is weatherproof, making it suitable for both indoor and outdoor use. Multiple units can be linked together using the linking kit to create extended barrier runs at any angle.
Suitable Applications
The InstaGate IG6 is designed for construction sites, industrial facilities, warehouses, events, and any location requiring quick, effective segregation of pedestrians from plant, vehicles, or hazardous areas. The 6ft height makes it ideal for areas requiring maximum visibility and containment. Common applications include cordoning off excavations, separating delivery routes from pedestrian walkways, creating temporary exclusion zones during lifting operations, and managing crowd flow at events or public spaces. The expandable design and linking capability allow the IG6 to adapt to virtually any site configuration.
How to Use the InstaGate IG6
- Release the brakes and wheel the collapsed IG6 to the required position.
- Release the latching system that secures the barrier in its closed position.
- Expand the barrier by pulling one end while holding the other, extending to the required length (up to 2330mm).
- Engage the wheel brakes to secure the barrier in position.
- To extend the barrier run, connect additional IG6 units using the linking kit (IGL1), which allows pivoting at any angle.
- For enhanced stability, secure the barrier to flat surfaces or hoarding using the anchor kit (IGA1).
- To collapse, release the brakes, compress the barrier, and engage the latching system for transport or storage.
Note:
Standard scaffold clamps can be used to fix the InstaGate to scaffolding or to create corner configurations.
Safety Information
- Carry out a risk assessment before deploying barriers on site.
- Ensure wheel brakes are fully engaged before leaving the barrier in position.
- Use anchor kits to secure barriers in high-traffic areas or where displacement could create hazards.
- Inspect barriers regularly for damage or wear, particularly to wheels, brakes, and latching mechanisms.
- Do not exceed the maximum extended length of a single unit (2330mm) - use linking kits to extend barrier runs.
- Ensure barriers are clearly visible and do not obstruct emergency access routes.
Frequently Asked Questions
Q: What is the difference between the IG4 and IG6?
The IG6 is 6ft (1900mm) tall, while the IG4 is 4ft (approximately 1380mm) tall. The IG6 provides greater visibility and more effective segregation for areas with higher pedestrian or vehicle traffic.
Q: Can one person deploy the InstaGate IG6?
Yes. The IG6 is designed for single-person deployment. At 38kg, it is lightweight enough to push into position, and the expandable mechanism can be operated by one person.
Q: Can I connect multiple InstaGate barriers together?
Yes. Multiple IG6 units can be linked together using the linking kit (IGL1) to create extended barrier runs. The linking kit allows barriers to pivot at any angle for flexible site configurations.
Q: Is the InstaGate suitable for outdoor use?
Yes. The IG6 features a weatherproof powder-coated finish in highly visible red and white, making it suitable for both indoor and outdoor use.
