Multi-Sec Multi 13 Header Sling
1 / 5

Multi-Sec Multi 13 Modular Spreader Beam Hire

Part no. MS-HIRE-SB-13-2M
£56.57£47.14Inc VATEx VAT
£47.14 ex VAT£56.57 inc VAT ·
Lifting Centres: 2m

About this item

  • Weekly hire of a DNV type approved 13t modular spreader beam
  • Supplied assembled at 2m, 3m or 4m lifting centres
  • Upper and lower shackles included
  • Current test certification supplied

Product description

Weekly hire of the Multi-Sec Multi 13 modular spreader beam, rated to 13 tonnes and supplied assembled at 2 m, 3 m or 4 m lifting centres.

The beam keeps the lower slings vertical, so the load sees a straight pull at each pick point instead of the squeeze of an angled sling.

Multi-Sec beams are DNV type approved and supplied with current proof test certification.

Key Features
  • Rated 13 t at 2, 3 and 4 m centres
  • DNV type approved (DNV-ST-0378)
  • Supplied assembled to the centres you order
  • Can be rebuilt from 1 m up to 7.75 m spans at reduced capacity
  • Upper and lower shackles fitted

Specifications

Choose a size above to see its specifications.

Compare all 20 sizes
Span (m) SWL at 45° STV (t) Top sling min. length at 45° (m) SWL at 30° STV (t) Top sling min. length at 30° (m)
1.00 13 0.7 13 1.0
1.50 13 1.1 13 1.5
2.00 13 1.4 13 2.0
2.50 13 1.8 13 2.5
3.00 13 2.1 13 3.0
3.50 13 2.5 13 3.5
4.00 13 2.8 13 4.0
4.50 12.5 3.2 13 4.5
5.00 11.5 3.5 13 5.0
5.25 10.5 3.7 13 5.25
5.50 9.5 3.9 13 5.5
5.75 8.75 4.1 13 5.75
6.00 8 4.2 12.5 6.0
6.25 7.5 4.5 11.5 6.25
6.50 7 4.6 10.5 6.5
6.75 6 4.8 10 6.75
7.00 6.5 5.0 9.5 7.0
7.25 5.5 5.1 9 7.25
7.50 5 5.3 8.5 7.5
7.75 4.5 5.5 8 7.75

Table 1 from the Multi-Sec Multi 13 Instructions for Use. Lower slings must not exceed 6° from vertical.

Component Weight (kg)
Strut 0.25 m 9
Strut 0.5 m 12
Strut 0.75 m 16
Strut 1.0 m 19
Strut 2.0 m 33
Strut 4.0 m 60
Strut 6.0 m 88
End unit 0.5 m 13
Drop link 2
Top shackle, standard bow 9.5 t 4
Bottom shackle, standard bow 6.5 t 2

Component weights from Table 2 of the Instructions for Use; add them up for the beam self weight.

Brand Multi-Sec (Durham Lifting Ltd)
Model Multi 13 modular spreader beam
WLL 13 t (see span table)
Hire lifting centres 2 m, 3 m or 4 m
Max top sling angle 45° from vertical
Max lower sling angle 6° from vertical
Operating temperature -20°C to 200°C
Approval DNV type approved
Standards Machinery Directive 2006/42/EC, Supply of Machinery (Safety) Regulations 2008, EN 13155
Hire period Weekly
What's Included
  • 1 x Multi-Sec Multi 13 spreader beam, assembled to the centres ordered
  • Upper and lower shackles fitted
  • Current proof test certificate
  • Instructions for use

To rig the beam to the hook, hire a matched Multi 13 header sling alongside it.

Using and looking after it

Always read the manufacturer’s instructions before use.

Typical Applications

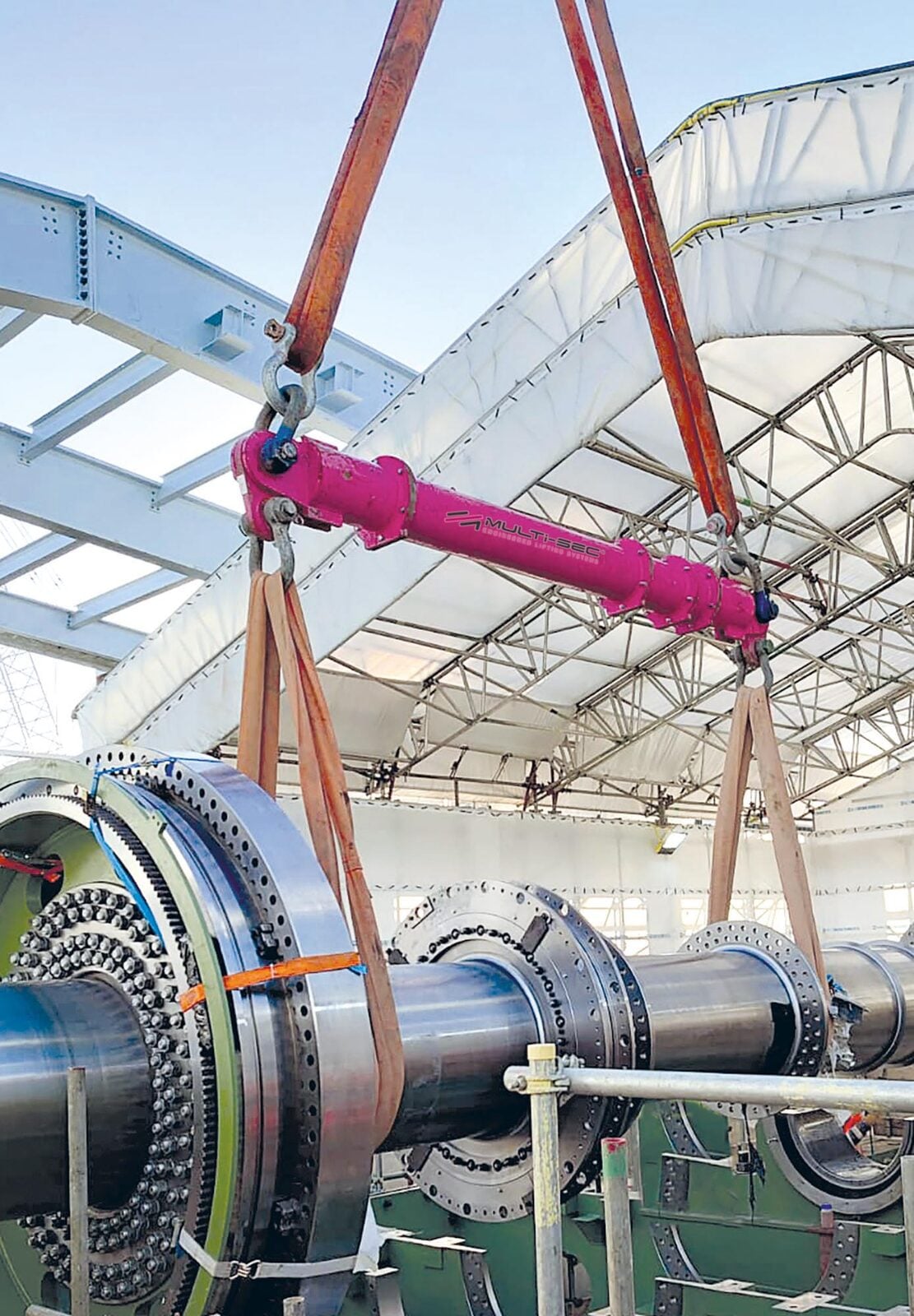

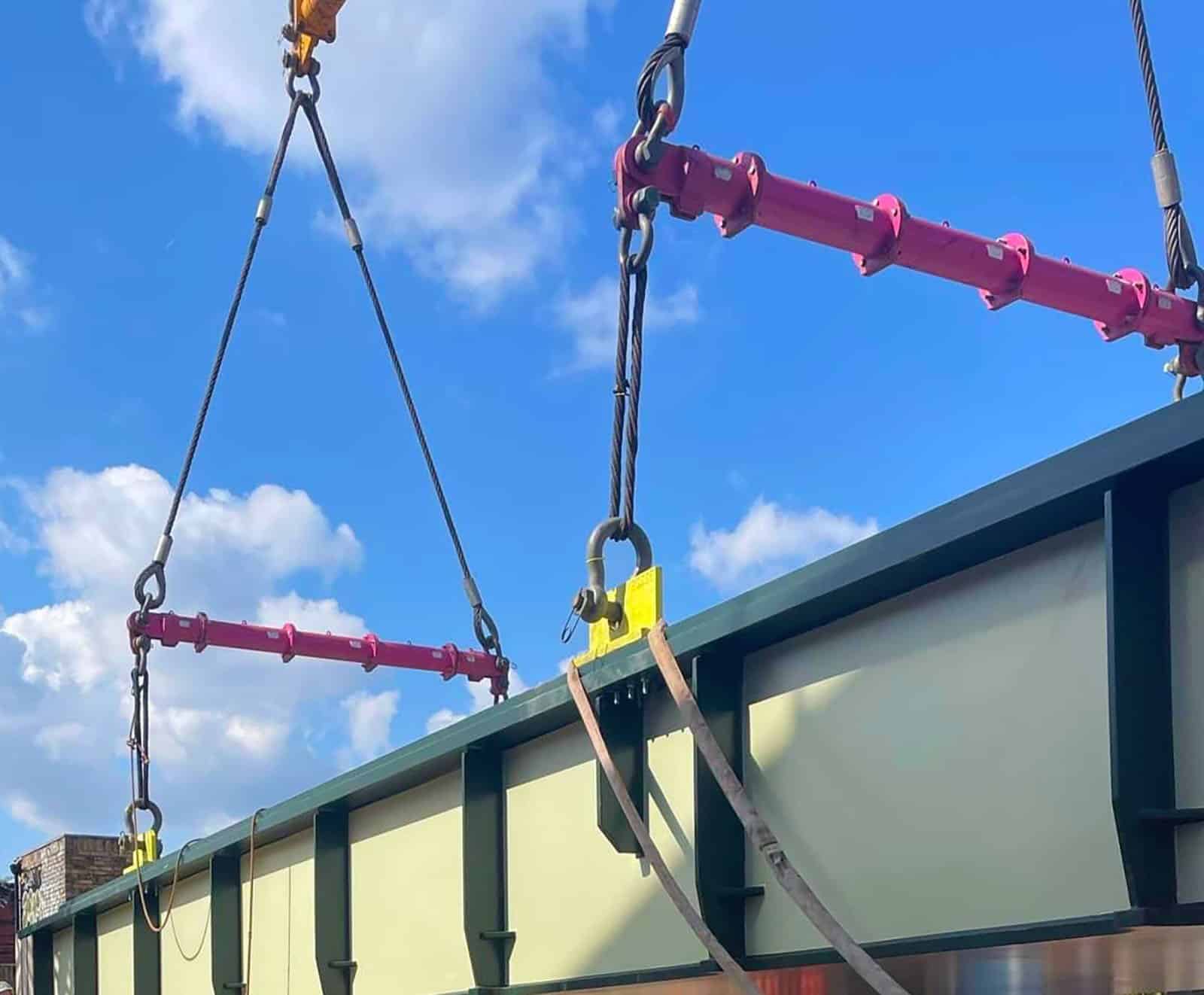

  • Lifting long loads such as pipe, steel and precast units
  • Plant and machinery installation
  • Modules and skids with fixed pick points
  • Loads that must not be crushed by angled slings

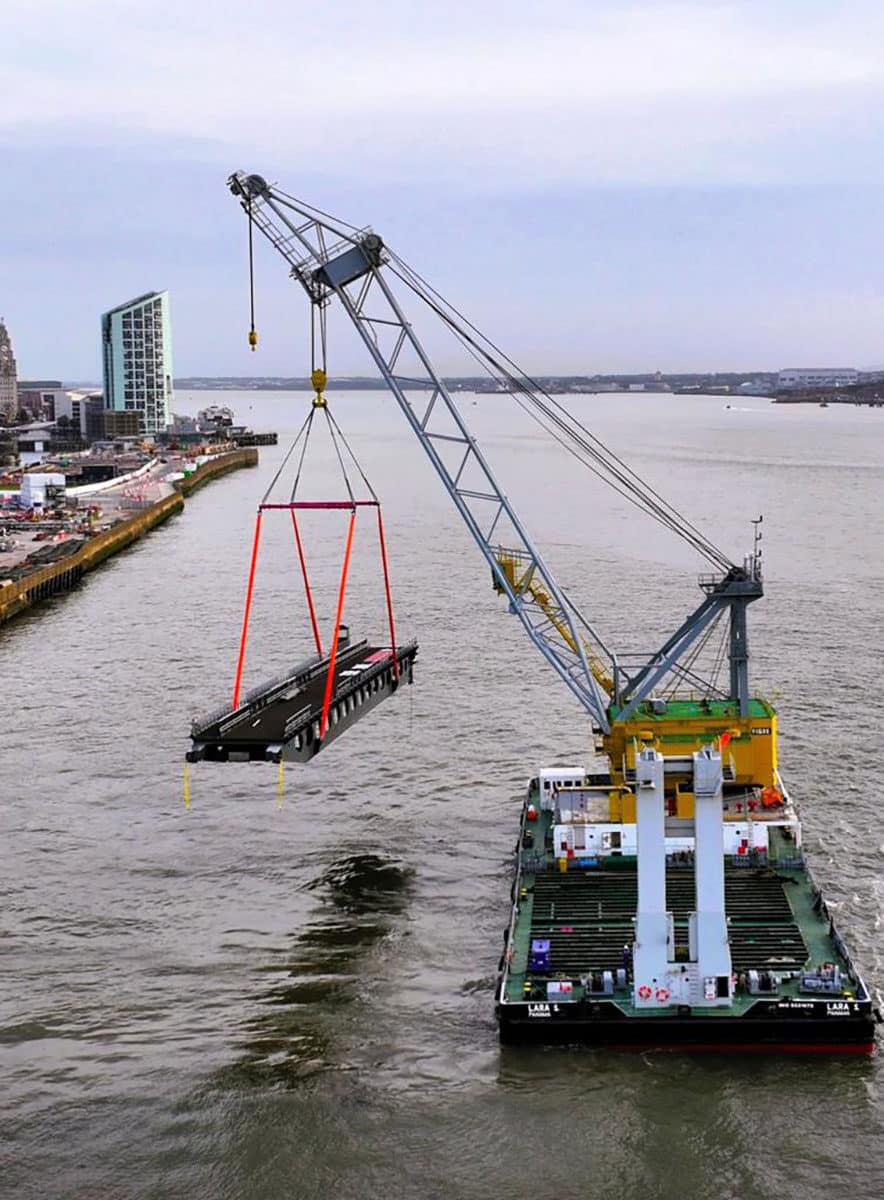

  • Tandem and reconfigurable project lifts

Buying guide

Design & Construction

The beam is built from two end units bolted to interchangeable struts (0.25 m to 6 m). The top slings connect to the top shackles; drop links hang from the end units and carry the lower shackles, which must hang vertically, within 6° of plumb.

Capacity depends on span and on the angle of the top slings from vertical (STV). The table gives the rating at 45° and 30° STV with the minimum top sling length for each. No more than eight components may be used in one assembly.

Choosing the Right Lifting Centres

Choose 2 m, 3 m or 4 m lifting centres to match the pick points on the load. At all three spans the Multi 13 is rated 13 t with the top slings at up to 45° from vertical (STV, sling to vertical).

For other spans, the beam can be built from 1 m upwards; check Table 1 below and ask us. For heavier loads, see the Multi 25 spreader beam.

Questions and answers

Q: Are drop links and lower rigging included?

A: Upper and lower shackles are fitted. Lower connection rigging below the shackles is quoted separately against your lift. Ask us to confirm the drop links for your configuration.

Q: Can I get a span other than 2, 3 or 4 m?

A: The Multi 13 builds from 1 m up to 7.75 m. Ask us and we will confirm capacity at your span and angle.

Q: What top slings do I need?

A: Slings long enough to keep within 45° from vertical; the table gives the minimum length per span. Matched header slings are available to hire.
